Bticino Green Up Home Wallbox 7.4 kW 32A Mode 3 057021
LEG 057021
3414972586269
The Bticino Green Up Home 7.4 kW 32A Wallbox is a state-of-the-art charging station designed for individual home installations, ideal for charging electric vehicles, version without charging cable. Equipped with high performance, this single-phase station is the perfect solution to ensure fast and safe charging of your electric vehicle, both indoors and outdoors.
-
Charging power: 7.4 kW (32A)
-
Charging mode: Mode 3
-
Socket: Type 2s
-
Integrated differential detector: RDC-DD 6 mA
-
Upstream differential protection: 30 mA Type A or F
-
Overcurrent protection: Circuit breaker with curve C (16A, 20A, 25A or 32A)
-
Communication: Bluetooth BLE (range 10 m), Wi-Fi (2.4 GHz, range 100 m in open field), Ethernet (F/UTP category 5)
-
Enclosure: Durable polycarbonate
-

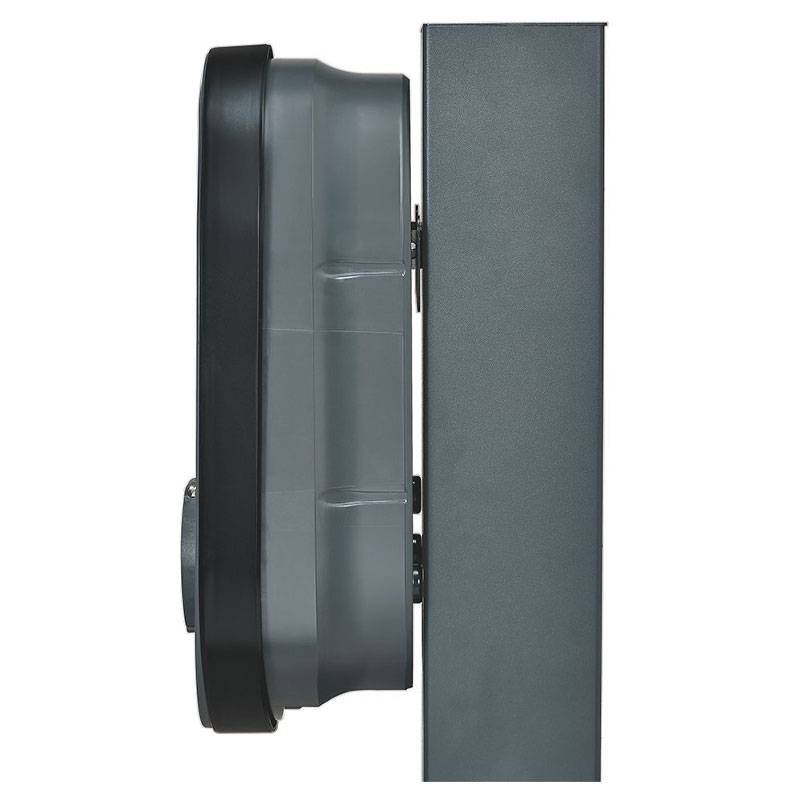

Installation: Wall or floor (with accessory pedestal 057057)
-
Management app: HOME + CONTROL (Android/iOS)
-
LED function: Green (ready), Blue (charging), Red (error)
-
IP44 protection, suitable for indoor and outdoor environments.
€693.96
Items Available: 21
: 11
Frequently bought together
Wallbox Green Up Home Mode 2 for your fast charging
The Bticino Green Up Home Wallbox is designed to ensure fast, safe, and smart charging for your electric vehicle. With a power of 7.4 kW (32A) in Mode 3, it offers high performance, ensuring reduced and safe charging times. Perfect for home use, this station is equipped with all the necessary functions for easy management and advanced protection.
-
Mode 3 charging with Type 2s socket
-
Wi-Fi and Bluetooth connection for remote management
-
LED bar for charge status monitoring (green, blue, red)
-
Suitable for wall or floor installation (with accessory pedestal)
-
Integrated differential protection at 6 mA and overcurrent
Easy management via smartphone App
The station is compatible with the HOME + CONTROL app, available for Android and iOS, which allows you to monitor and manage charging directly from your smartphone. You can configure the station, check the charging status, and receive automatic firmware updates at any time, even remotely, via Wi-Fi or Bluetooth.
Safe charging with advanced protection
The Green Up Home Wallbox is equipped with integrated RDC-DD differential protection (6 mA), providing an additional level of safety during charging. It is also important to remember that an upstream differential protection of 30 mA Type A or F and a circuit breaker of 16A, 20A, 25A, or 32A with a C curve is required, depending on the configuration.
Simple and versatile installation
The installation of the station is extremely simple. It can be mounted on the wall or floor (with accessory pedestal 057057), perfectly adapting to different types of environments, both indoors and outdoors. Thanks to its robust design and safety certifications, it is ideal for garages, car boxes, and private parking lots.
Advanced design and functionality for everyday use

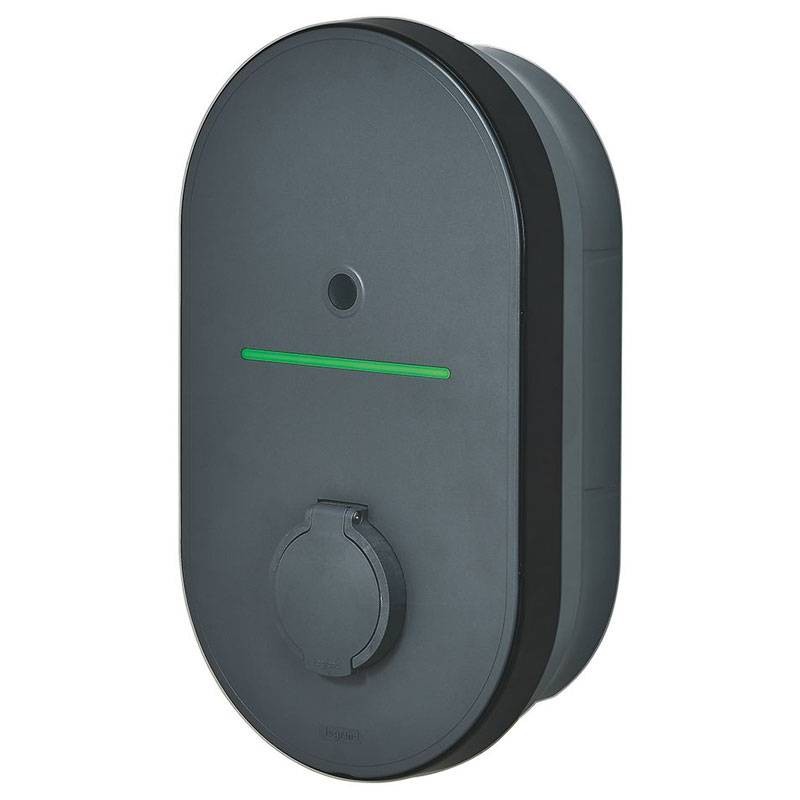

The Bticino Green Up Home Wallbox is designed with an LED bar on the front panel that clearly shows the station's operating status:
-
Green: ready for charging
-
Blue: charging
-
Red: error
You can also customize the LED brightness through the HOME + CONTROL app to suit your preferences. The station is designed to withstand outdoor environments thanks to its polycarbonate enclosure, making it resistant to dust and water (IP44).
| GENERAL DATA | |
|---|---|
| Brand | Legrand |
| Reference Standard | IEC 61851-IEC 62191-IEC 62196 |
| Voltage | 230Vac |
| Nominal Frequency | 50-60Hz |
| Power (W) | 7.4kW |
| Protection Degree | IP55 |
| System Type | AC |
| Insertion | Type 2s Socket |
| Robustness Degree | IK10 |

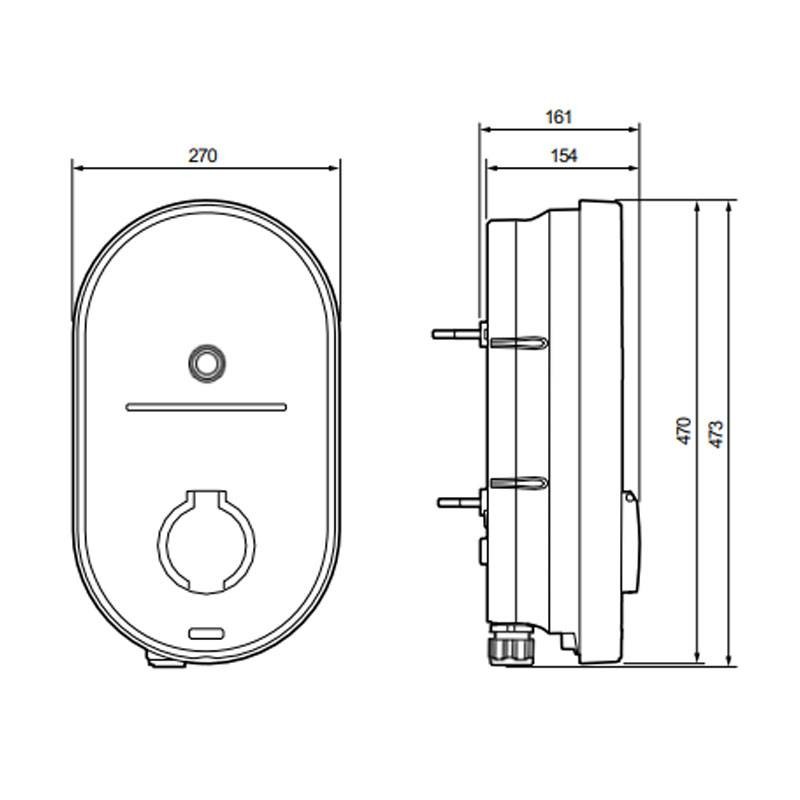

| DIMENSIONS | |
| Height | 473mm |
| Width | 270mm |
| Depth | 161mm |
| CONNECTIONS AND POWER SUPPLY | |
| Connection Type connected / traditional | Connected |
| Wi-Fi | Yes |
| Operating Voltage (UE) determined at 20°C | 230 V~ |
| Impulse Voltage (Uimp) | 4 kV |
| Insulation Voltage (Ui) | 500 V |
| Frequency (fn) | 50 Hz/60 Hz |
| Rated Voltage | 230 V |
| OTHER TECHNICAL DATA | |
| Single Voltage Tolerance (V) | Excluding vehicle requirements 195 V - 265 V |
| Conditional Short Circuit | 4.5 kA / 6 kA / 10 kA depending on the upstream protection device |
| Permissible Thermal Stress in C/C | 16,000 A² |
| No-load Consumption | < 3 W |
| WEIGHT | |
| Weight (g) | 3600g |
| TEMPERATURE AND OPERATING CONDITIONS | |
| Operating Temperature | (-30°) - (+50°)C |
There are no reviews
Data sheet
- Type: Electric Vehicles Charging
- Power: 7/7,4 KW
- Model: Without cable
- Connection: Single-phase
