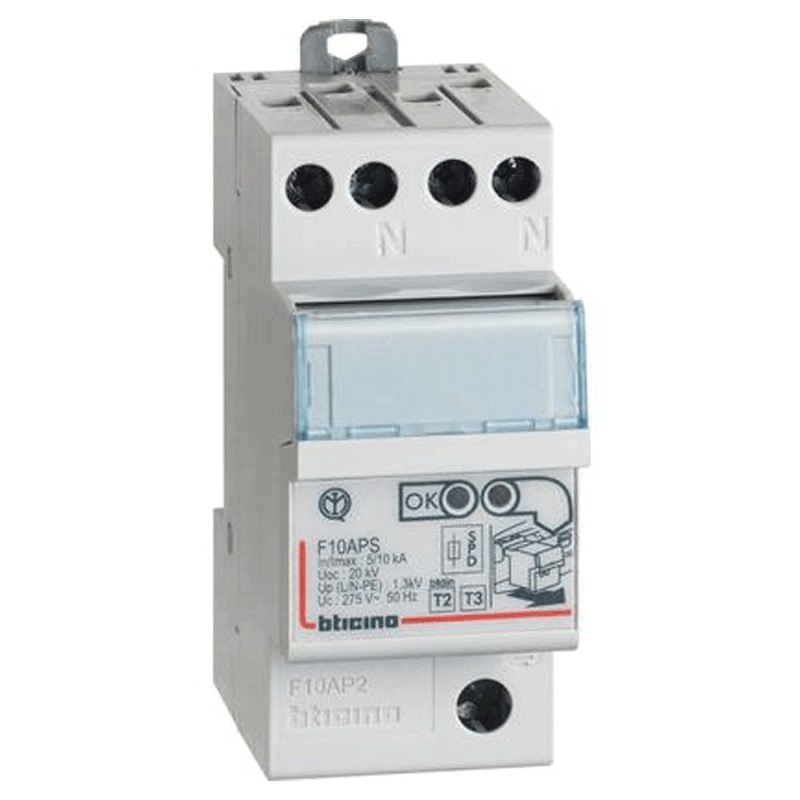

Bticino surge arrester 10KA 2P F10AP2

Bticino
Bticino
BTI F10AP2 8005543492802

Bticino self-protected surge protector (SPD), with the following characteristics:

  • Uc= 275Vac
  • In current 5kA
  • Maximum discharge current 10kA
  • 2 modules
  • Poles 1P+N
  • Type 2
Do you have questions about this product or did you not find what you were looking for? Ask us!
Bticino surge arrester 10KA 2P F10AP2
€92.71
€92.71

€92.71
Tax included
Calculate shipping cost
Items Available: 45
Further availability of the manufacturer
€92.71

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

The surge arrester is an instrument that can be mounted inside the electrical panel, therefore upstream of the home system. Its use allows you to put in protection the electrical system on which it is installed.

The surge arrester will protect the entire system from surges, surges and peaks of electricity that may come from the operator of the power line, or from atmospheric phenomena such as lightning. These power anomalies can cause serious damage to the devices connected to the outlets.

A power surge can cause the hardware of a PC to break, or short circuit the boards of smartphones, tablets and home appliances. In the event that the flow of energy suddenly increases dramatically, human life can even be at risk due to electrocution.

To prevent this from happening, it is therefore advisable to fit a surge protector.


Surge arresters are divided into three classes:

In class 1 we find devices to be used in areas where adverse weather phenomena such as thunderstorms and lightning usually insist (for example in the mountains). In this case the arrester is mounted in the electrical panel and can withstand several surges without being damaged. The discharge takes place in 350 microseconds, so that the excess energy does not reach the system.


 In class 2 there are surge arresters that protect the system from surges and spikes that may be caused by maintenance work on the line by the operator.

In class 3, on the other hand, we find those devices that offer even greater protection: in this case, the surge arrester is installed directly at the electrical outlets present in the home.

Features:

  • Bticino Series
  • Uc= 275Vac
  • Current In 5kA
  • Maximum discharge current 10kA
  • 2 modules
  • Poles 1P+N
  • Type 2
  • Degree of protection IP20
  • Height 86 mm
  • Width 35.6 mm
  • Depth 68 mm
  • Earthing system TT, TNS
  • Protection modes L-N, L/N-PE
  • Maximum continuous operating voltage (Uc) L-N, L-PE: 275 V~ N-PE: 255 V~
  • Frequency 50/60 Hz
  • Protection level (Up) L/N-PE = 1.3 kV L-N = 1 kV
  • Combined wave test (Uoc) 20 kV
  • Temporary overvoltages (LV power supply faults) L-N: 336 V/5 s (withstand mode) L-PE: 440 V/5 s (withstand mode) L-N: 440 V/2 hours (fault mode)
  • Temporary overvoltages (HV power supply faults) 1,200 V (withstand mode)
  • Associated Disconnect Switch Integrated
  • Short-circuit current capability (Icc) 6 kA
  • Following current capability Ifi (N-PE) 100A
  • Residual current (Ipe) zero
  • Max. line current (IL ) 63A
  • Voltage drop under IL < 1 %
  • Response time L-N: 25 ns N-PE: 100 ns
  • Number of ports 1
  • Location category Internal
  • Installation method Fixed
  • Pollution level IP20 (flush mounted)
  • Operating temperature -10°C to +40°C Storage temperature
  • Storage temperature From -20°C to +70°C
  • Humidity range HR: 5-95

Molto soddisfatto del servizio. Servizio clienti eccellente.

Read all reviews

Data sheet

Modules:
2
Poles:
1P+N
Maximum current:
10KA
Version:
2
Model:
AC
Circuit Protections:
Surge protectors
