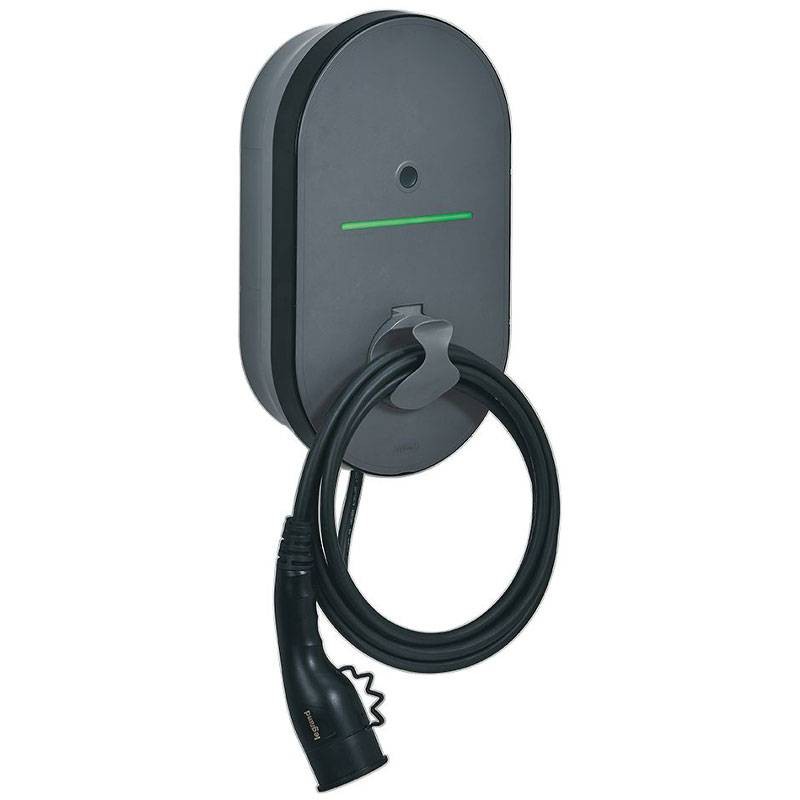

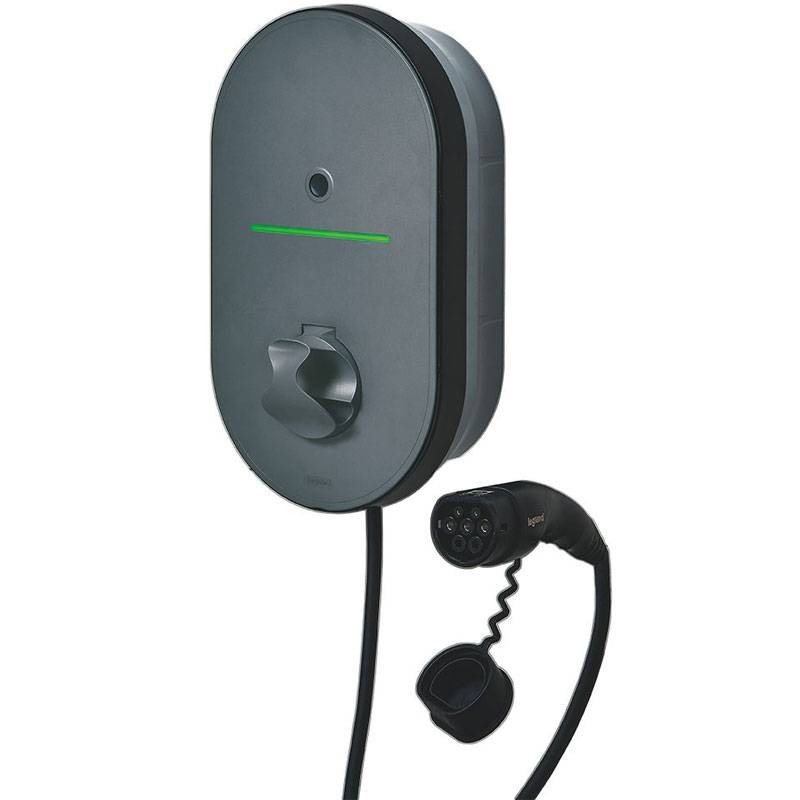

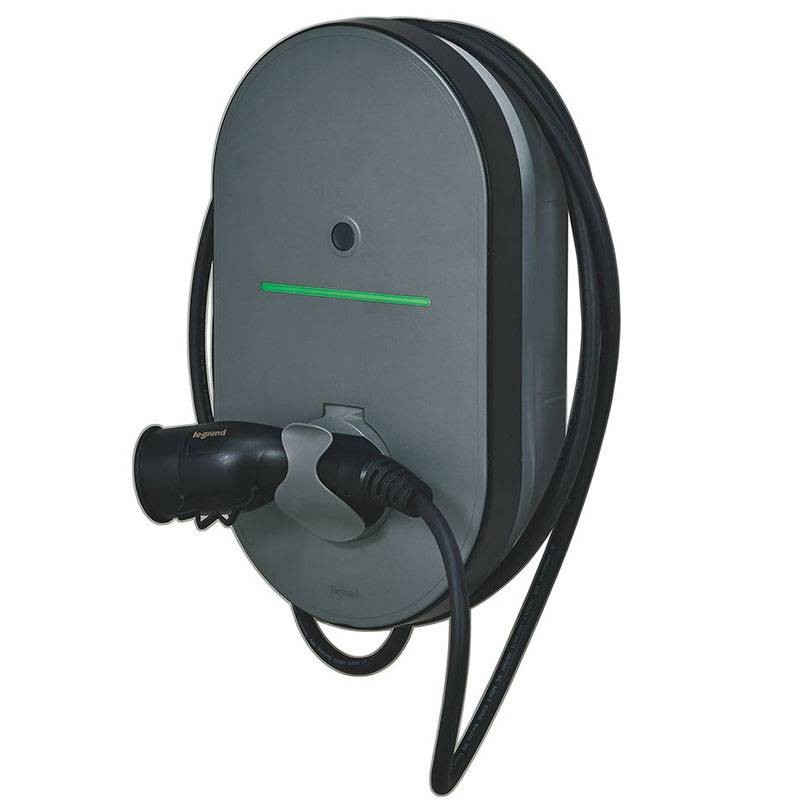

Bticino Green Up Home Wallbox 7.4 kW 32A Mode 3 with cable 057041
LEG 057041
3414972586504
The Bticino Green Up Home Wallbox 7.4 kW 32A with a 5-metre cable included is the perfect solution for charging your electric vehicle at home. It supports Mode 3 charging, offers simple and safe installation, and allows complete management via the HOME + CONTROL app for smart charging.
-
Charging power: 7.4 kW (32A)
-
Charging mode: Mode 3
-
Charging cable included: 5 metres with Type 2 plug
-
Sockets: 1 x Type 2s, 1 x Type 2P+T Green Up Access
-
Communication: Wi-Fi (2.4 GHz, up to 100 m in open field), Bluetooth BLE (range 10 m)
-
Enclosure: Polycarbonate, IP44 resistance (suitable for outdoor use)
-
Management app: HOME + CONTROL (available for Android/iOS)
-
Residual current protection: Integrated RDC-DD 6 mA
-
Overcurrent protection: Circuit breaker 16A, 20A, 25A, 32A with curve C
-
Installation: Wall-mounted or on pedestal (accessory 057057)
€783.97
Items Available: 20
: 14
Frequently bought together
Wallbox Green Up Home 7.4 kW: Fast and safe charging with included cable
The Bticino Green Up Home 7.4 kW Wallbox is a single-phase charging station designed to charge electric vehicles with a power of 7.4 kW (32A) in Mode 3, the safest and fastest mode. The 5-meter charging cable with Type 2 plug included allows you to connect to your vehicle without needing to purchase a separate cable. The station is ideal for home use, both indoors and outdoors, thanks to its weather resistance.
Manage charging remotely via the HOME + CONTROL App
The Green Up Home Wallbox is compatible with the HOME + CONTROL app, which allows you to manage the charging station directly from your smartphone. The main features offered include:
-
Remote control of charging (Start and Stop)
-
Scheduling charging for specific days and times
-
Real-time and historical consumption monitoring
-
Status notifications, to always be updated on the charging status
You can also manually update the firmware via Bluetooth or take advantage of automatic updates via Wi-Fi or Ethernet, to ensure the station is always up to date with the latest features.
Advanced protection and safety
The station is equipped with an integrated RDC-DD differential detector at 6 mA, which provides an additional level of safety during charging. Additionally, upstream differential protection 30 mA Type A or F is mandatory to ensure maximum safety against electrical risks. Overcurrent protection is guaranteed through automatic circuit breakers of 16A, 20A, 25A, or 32A with curve C, depending on the station configuration.

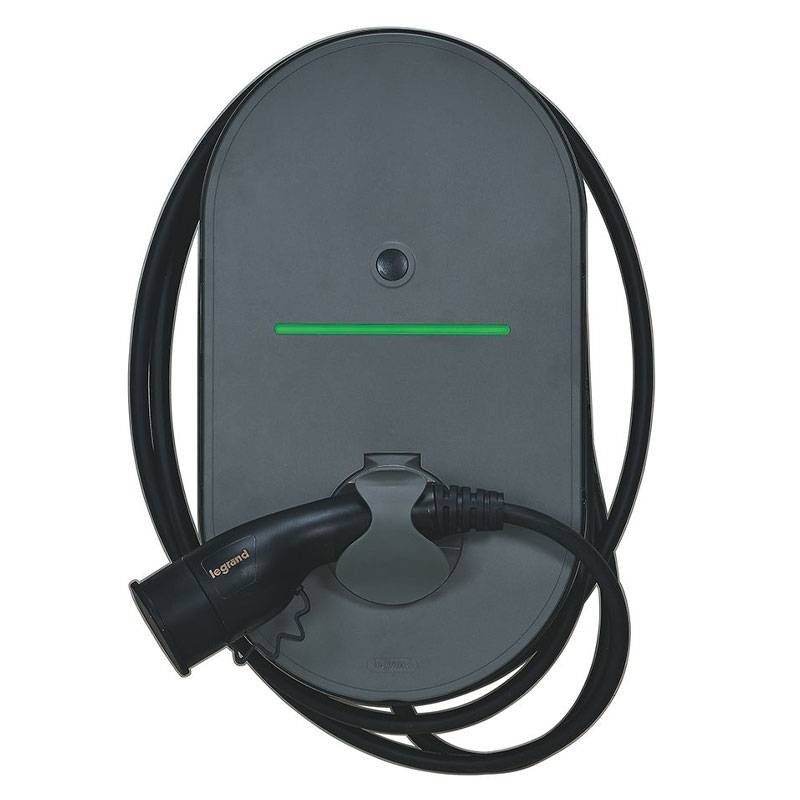

LED bar for real-time monitoring
The front panel of the Green Up Home Wallbox is equipped with a three-color LED bar, which clearly indicates the charging status:
-
Green: the station is ready for charging
-
Blue: the vehicle is charging
-
Red: an error has occurred
The brightness of the LED bar can be adjusted via the HOME + CONTROL app, to optimize visibility.
Flexible and durable installation
The Green Up Home Wallbox can be installed on a wall or on the floor (with the accessory pedestal 057057), making it suitable for different space solutions. Thanks to its polycarbonate enclosure, it is weather-resistant and perfect for installation both indoors and outdoors, with an IP44 protection rating.
| General Data | |
|---|---|
| Brand | Legrand |
| Reference Standard | IEC 61851-IEC 62191-IEC 62196 |
| Voltage | 230Vac |
| Nominal Frequency | 50-60Hz |
| Power (W) | 7.4kW |
| Protection Rating | IP55 |

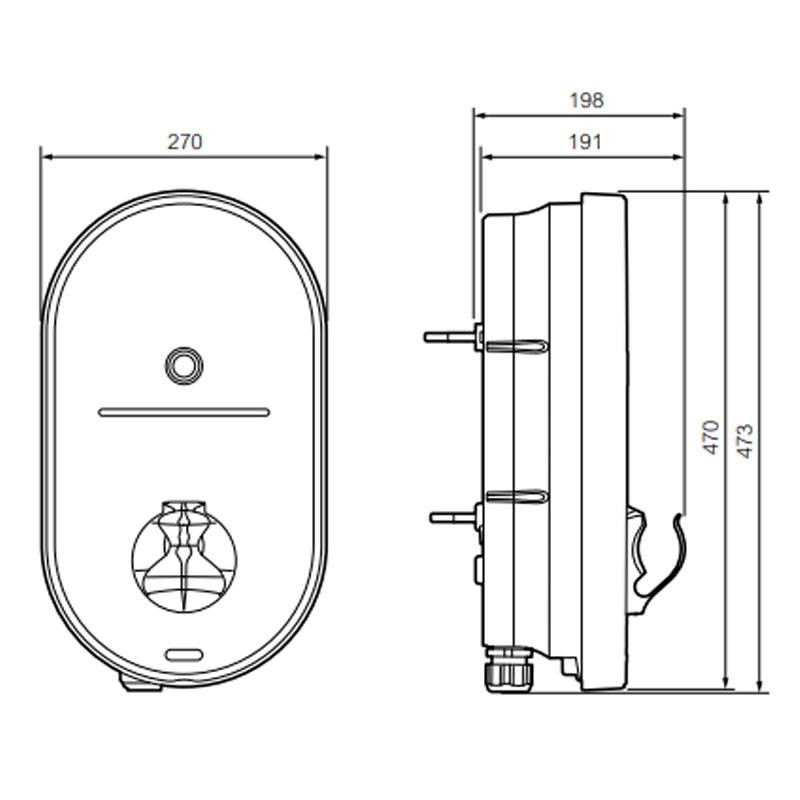

| Dimensions | 270x473x198mm |
| Height | 473mm |
| Width | 270mm |
| Depth | 198mm |
| System Type | AC |
| Insertion | Type 2 Plug |
| Robustness Rating | IK10 |
| Operating Temperature | (-30°)-(+50°)C |
| Connection Type connected / traditional | Connected |
| Wi-Fi | Yes |
| Operating Voltage (UE) determined at 20°C | 230 V~ |
| Impulse Voltage (Uimp) | 4 kV |
| Insulation Voltage (Ui) | 500 V |
| Frequency (fn) | 50 Hz/60 Hz |
| Assigned Voltage | 230 V |
| Single Voltage Tolerance (V) | 195 V - 265 V |
| Conditional Short Circuit | 4.5 kA / 6 kA / 10 kA depending on the upstream protection device |
| Permissible Thermal Stress in C/C | 16,000 A² |
| No-load Consumption | < 3 W |
There are no reviews
Data sheet
- Type: Electric Vehicles Charging
- Power: 7/7,4 KW
- Model: With cable
- Connection: Single-phase
