Faston Lugs Cembre female 1,5 mmq 6,3X0,8 pcs 100 RF-F608P
CEM RF-F608P
8016692034843

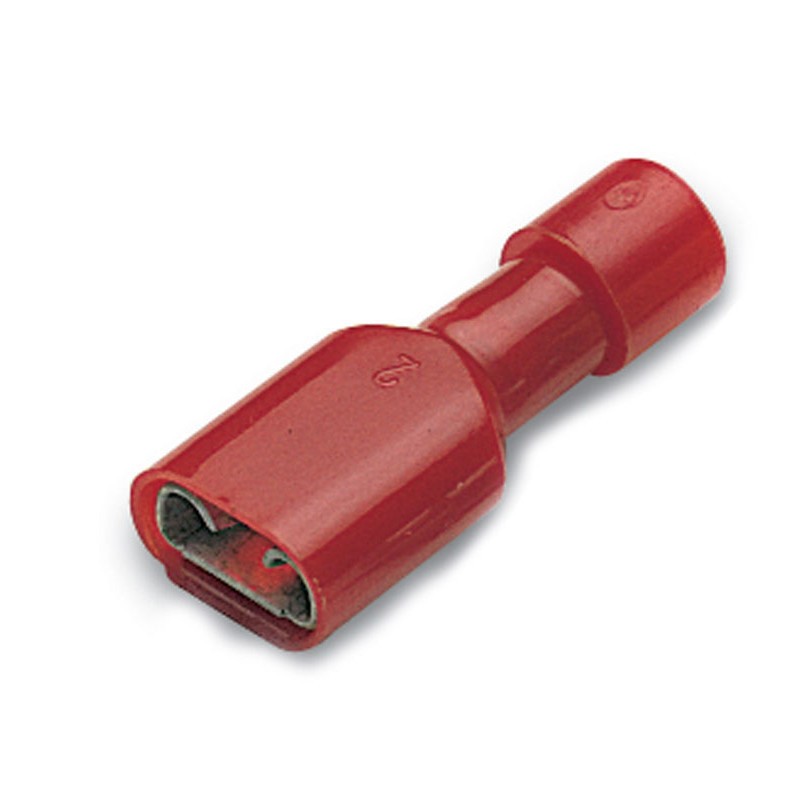

Faston Lugs Cembre female rated cross section 1,5 mmq, width 6.35 mm, length 22.2 mm, a height of the hook 0,8 mm packaging 100 pieces Red color.
€0.16
Items Available: 5300
: 1300
The plug-in connectors pre-insulated in PCS have been designed to meet the needs of increasingly stringent market regarding the reliability and safety of components for electrical connections.
The plug-in connectors pre-insulated in the PC have the blouse insulating Polycarbonate, a thermoplastic, halogen-free, characterized, among other things, by a molecular structure in particular that gives higher tenacity than PVC and PA6.6.
Features:
- The connectors are made of brass P-Cu Zn 30 UNI EN 1652
- Blouses insulators are made of PC material, halogen-free characterized by high toughness
- Dielectric strength (KV/mm): >30
- The specific resistance of volume (?/cm): >1016
- Temp. maximum operating (°C): 115÷130
- Flammability (UL-94) V0
- Density (g/cm3): 1,2
- Absorption d H2O (%): 0,15
- Resistance at break (N/mm2): >65
- Halogen-free
- Class UL94 V0
- Minimum operating temperature -20 °C
- Maximum use temperature of 115 °C
- Maximum use temperature for short periods up to 130 °C
- Material (Body) Brass, tin-plated electrolytically
- Material (Blouse partially insulating material) Polycarbonate.
There are no reviews
Data sheet
- Type: Faston
- Cross-Section: 1.5mmq
