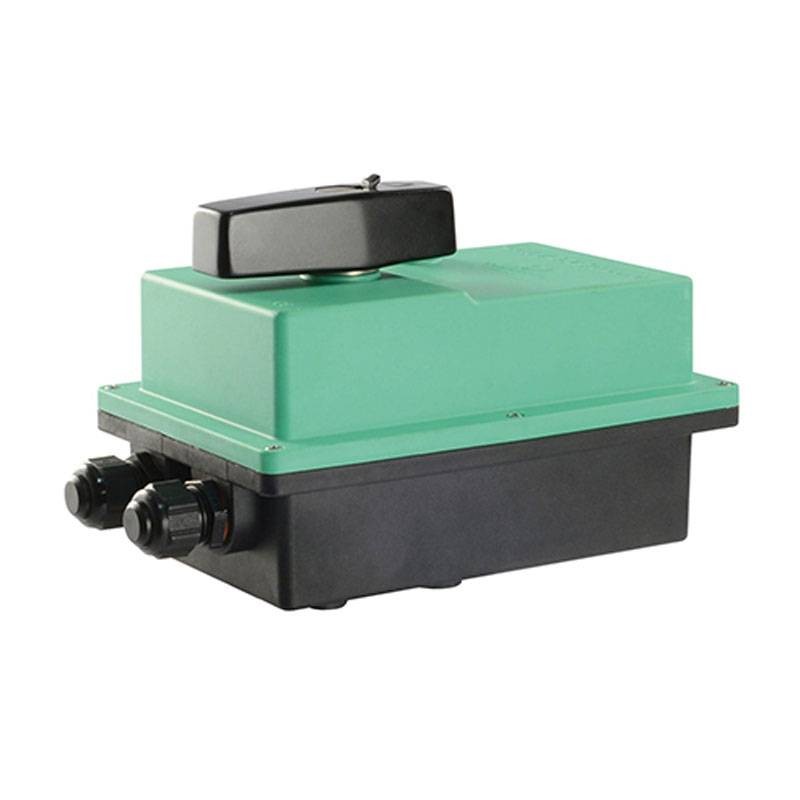

Comparato Servo drive Universal Pro ISO5211 230V UY2222P
CMP UY2222P
8053812118830
Comparato Universal PRO UY2222P 230V Servo drive: ISO 5211 F05/F07 electric actuator with 40 Nm, IP67, manual opening and integrated microswitches.
-
Power supply 230V 50 Hz
-
Operating torque 40 Nm
-
ISO 5211 F05 / F07 connection
-
Operating time: 55 seconds
-
90° rotation
-
IP67 protection against dust and temporary immersion
-
Auxiliary microswitches for opening and closing
-
Manual opening from the top
-
Compatible with 2-way and 3-way valves
€384.06
Items Available: 3
: 2
Frequently bought together
Universal PRO UY2222P Servo drive: power and reliability for complex systems
The Comparato Universal PRO UY2222P electric servo drive is designed to offer maximum reliability and control in fluid automation systems, both in civil and industrial settings. Thanks to the 40 Nm torque and ISO 5211 F05/F07 connection, it is perfect for actuating medium to large-sized 2 and 3-way ball valves, ensuring high performance even in challenging operating conditions.
Robust and versatile actuator for every plant requirement
The UY2222P model operates with a 230V 50 Hz power supply and can complete the opening/closing maneuver in 55 seconds with a 90° rotation angle. These technical specifications make it particularly suitable for contexts where controlled and progressive movement is necessary, avoiding water hammer or mechanical stress on the pipes. The body is made of durable materials, while the IP67 protection ensures maximum resistance against dust and water, making this servo control suitable for installations in humid or exposed environments.
Integrated functionalities for maximum control
The ALL IN ONE electric control includes auxiliary microswitches as standard, active both in opening and closing, allowing interfacing with other automation, signaling, or remote control devices. In case of emergency or power failure, manual opening from the top is possible, ensuring operational continuity in every situation.
Wide range of applications
Thanks to its versatility and robustness, the UY2222P servo drive is ideal for:
-
Industrial plants with hot or cold fluids
-
Refrigeration systems with glycol
-
Heating and cooling systems
-
Hydraulic process automation
-
Systems with alternative energies (heat pumps, solar thermal)
-
Open or closed hydraulic systems
-
Compressed air distribution and water treatment
-
Potable water management, if combined with a suitable valve body
| MAIN FEATURES | |
|---|---|
| Electric control | ALL IN ONE 2/3 points |
| Valve body connection | ISO 5211 F05 / F07 |
| Operation | ON/OFF • Modulating |
| Rotation | 90° |
| Compatible valve bodies | 2 way • 3 way diverter • 3 way mixer |
| Position indicator | Arrow on lever for manual opening |
| Motor | Bidirectional synchronous |
| ELECTRICAL CHARACTERISTICS | |
| Electric power supply | 230V 50/60 Hz |
| Electrical connections | Internal terminal block |
| Power consumption | 24 VA |
| Electrical capacity output terminals 4 and 5 | 1 A resistive |
| Electrical capacity additional micros | 1 A resistive |
| Heating resistance power | 3 W |
| PERFORMANCE | |
| Nominal torque | 40 Nm |
| Maneuver time (90°) | 55 seconds |
| Maximum noise level (1 metre) | 50 dB(A) |
| ENVIRONMENTAL CHARACTERISTICS | |
| Operating ambient temperature | -10°C ÷ 50°C |
| Protection degree | IP67 |
| MATERIALS | |
| External casing | Glass-filled “polyarylamide” technopolymer |
| External metal components and seals | AISI 303 GVR and brass CW617N • Silicone seals |
| CERTIFICATIONS | |
| Certification | CE |
There are no reviews
Data sheet
- Type: Zone valves, diverter valves, actuators
