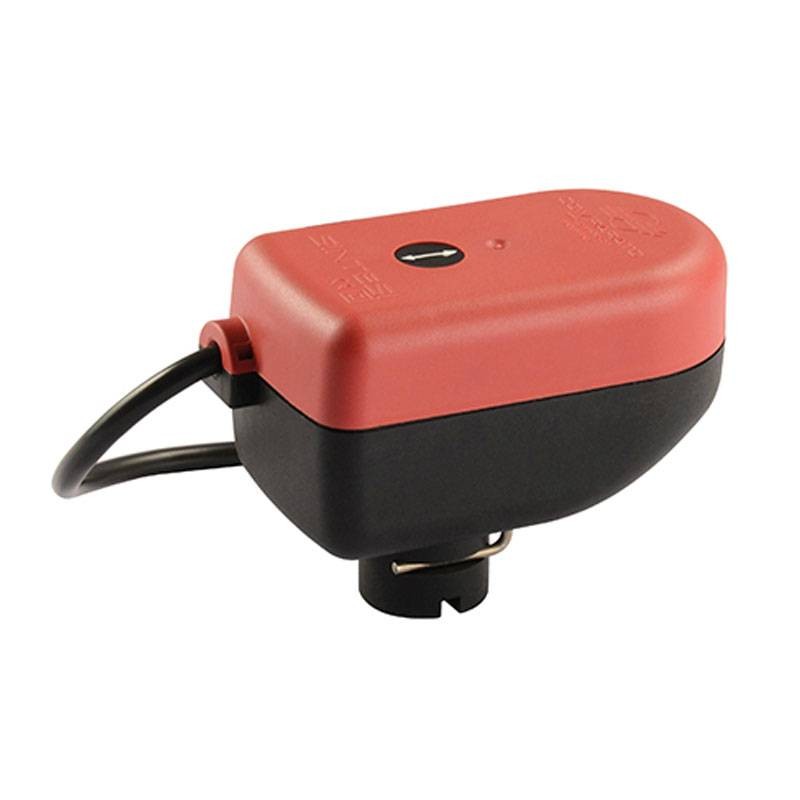

Comparato Rotary Servo Control ALL IN ONE Synthesis 2/3 Points 230V ON/OFF SY2221B
CMP SY2221B
8053812102181
Comparato Rotary Servocontrol Sintesi ALL IN ONE is a versatile solution for valve control in HVAC, heating, cooling and domestic water systems. With the ability to select 2- or 3-point ON/OFF control, it offers maximum flexibility during installation, with the following features:
-
Power supply: 230V
-
Electrical control: 2/3 points ON/OFF
-
Angle of rotation: 90 degrees
-
Degree of protection: IP54
-
Shell material: Polyamide PA6 with 30% glass fiber
-
Manual operation in case of emergency
€84.66
Items Available: 3
: 1
Frequently bought together
ALL IN ONE Comparato Servocontrol with Selector and Quick Mounting
ON/OFF operation with built-in selector switch
The ALL IN ONE system provides a choice of 2- or 3-point control, adapting to the control needs of the system. Selection is made easily via the built-in selector switch, with no need for additional components.
Quick installation with push-fit coupling
The quick push-to-connect coupling allows immediate installation on Sintesi range valve bodies, simplifying installation and maintenance operations.
Comparato Servocontrol: Manual Control and Versatility of Use
Manual actuation for emergencies
In emergencies, the servocontrol can be manually unlocked and the valve operated manually, ensuring the operation of the system even in the absence of power supply.
Applications in various systems
The servo control is ideal for:
-
Heating and cooling systems
-
HVAC (Heating, Ventilation & Air Conditioning)
-
Domestic water and alternative energy systems
-
Solar thermal systems (with suitable valve body)
-
Civil automation
Technical Characteristics Comparato Servocontrol
| Feature | Value |
|---|---|
| Power supply | 230V |
| Electric control | 2/3 Points |
| Operation | ON/OFF |
| Power cord | Length 80 cm |
| Torque | 8 Nm |
| Angle of rotation | 90 degrees |
| Power consumption | 3.9 VA |
| Electrical capacity of phase output to gray wire | 1 A resistive |
| Electrical capacity of supplementary microswitch | 1 A resistive, 250V |
| Position indicator | Rotating arrow |
| Maneuvering time | 45 seconds |
| Maximum noise level | 40 dB(A) |
| Ambient operating temperature | +5/+50 degrees |
| Degree of protection | IP54 |
| Insulation class | II - double insulation |
| Outer shell material | Polyamide PA 6, 30% glass fibers |
There are no reviews
Data sheet
- Type: Zone valves, diverter valves, actuators
