Best seller

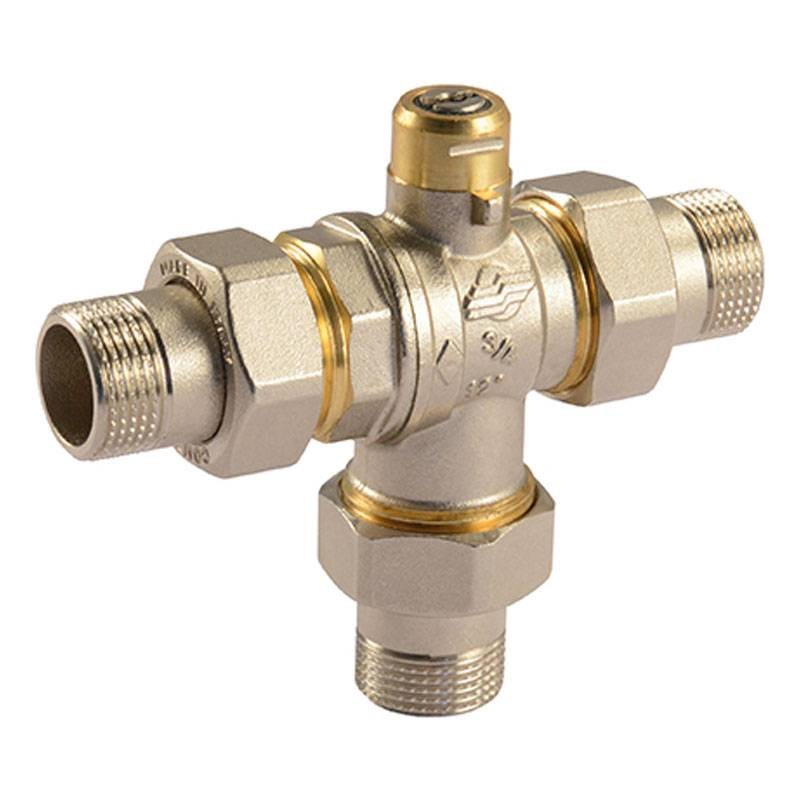

Comparato Ball Valve Body Synthesis 3-Way M 1 inch SC3C3A
CMP SC3C3A
8053812100576
Sintesi Comparato Ball Valve Body is designed for applications in heating, cooling, HVAC and domestic water systems. Equipped with tangs and caps, it ensures easy installation and a perfect hydraulic seal, with the following features:
-
Connections: Male/Male/Male 1 inch
-
Number of ways: 3
-
Nominal size: DN 25
-
Flow rate (Kv): 18.3 m³/h
-
Nominal pressure: PN16
-
Material: Brass
-
Plug: Quick push-to-connect for servo control, easy installation
-
Ideal for: HVAC, heating and domestic water systems
€73.81
Items Available: 5
: 3
Frequently bought together
Comparato Valve Body: Easy Installation and Perfect Seal
Easy installation with 1-inch M/M/M connections and tangs
With male couplings with tangs and caps, the valve body allows optimal orientation of the servo control, facilitating installation and maintenance.
Maximum efficiency with ball shutter
The ball shutter ensures a perfect hydraulic seal and minimizes pressure drop, optimizing fluid flow in systems.
Versatility for multiple applications
The valve body is compatible with systems for:
-
Heating & Cooling
-
HVAC (Heating, Ventilation & Air Conditioning)
-
Domestic water and alternative energy systems
-
Solar thermal systems (with suitable valve body)
-
Civil automation systems
There are no reviews
Data sheet
- Type: Ball valves
- Connection: M/M
- Connections: 1 inch
