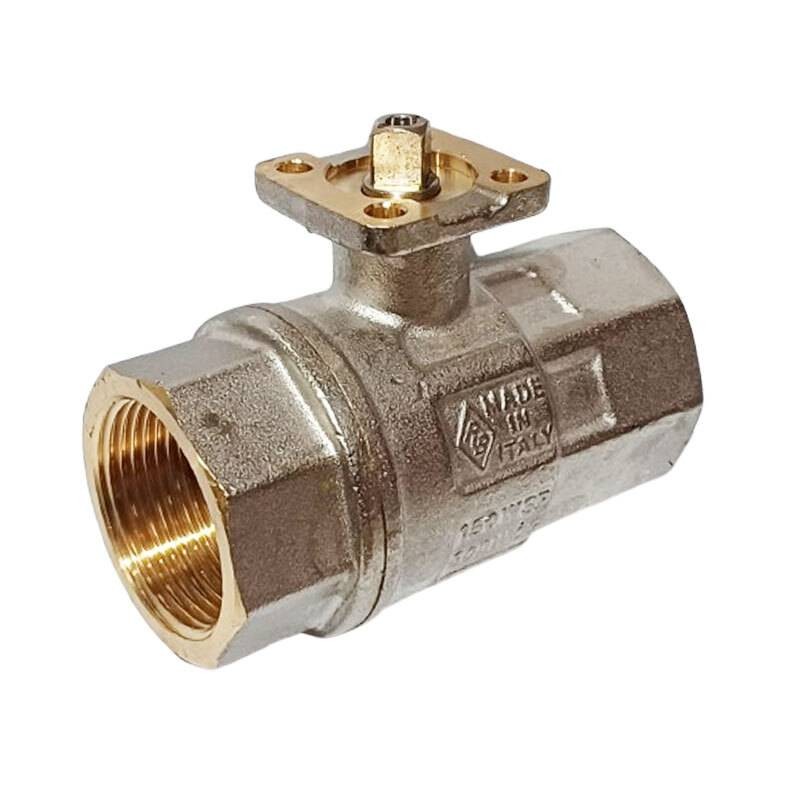

Comparato Ball valve 2-way 1 1/4 for Diamant /Compact DC2D2P5
CMP DC2D2P5
8053812032365
Ball valve 2-way Comparato DN32 for PRO actuators: ideal for automation and thermal systems, compatible with Diamant PRO and Compact PRO.
-
2-way valve F/F with full bore
-
Connection Rp 1 1/4 (DN32) PN40
-
Compatible with Diamant PRO and Compact PRO actuators
-
Nominal flow rate Kvs: 89 m³/h
-
Max: 25 bar (Diamant PRO), 40 bar (Compact PRO)
-
Rotation angle: 90°, ISO 5211 mounting
€76.29
Items Available: 4
: 2
Frequently bought together
Ball valve 2-way DN32: precision and versatility for PRO systems
The ball valve 2-way Comparato DC2D2P5 represents a highly reliable solution for flow control in modern thermal and industrial systems. Designed to be paired with Diamant PRO and Compact PRO actuators, it allows for efficient and precise interception, regulation, diversion, and mixing of fluids.
Robust construction and high performance
With an Rp 11/4 (DN32) connection and a PN40 seal, the valve is designed to withstand harsh working conditions. The full bore ensures minimal pressure loss, allowing for a high flow rate (Kvs 89 m³/h), while the 90° rotation system facilitates integration with automated actuators equipped with ISO 5211 mounting.
The technical features guarantee resistance up to 25 bar when paired with the Diamant PRO actuator, and up to 40 bar with Compact PRO, ensuring compatibility even in high-pressure systems.
Versatile applications in complex environments
The Comparato valve is suitable for a wide range of applications:
-
Systems with alternative energies, such as solar thermal or heat pumps
-
Automation systems for smart hydraulic flow management
-
Refrigeration systems with glycol for temperature control
-
Heating and cooling systems, both civil and industrial
-
Open and closed hydraulic systems, even in complex contexts
-
Water treatment, both primary and wastewater
-
Compressed air distribution in industrial environments
-
Compatibility with hot and cold fluids further expands its application possibilities, making it a safe choice for designers and installers.
There are no reviews
Data sheet
- Type: Ball valves
- Connection: F/F
- Connections: 1-1/4 inches
