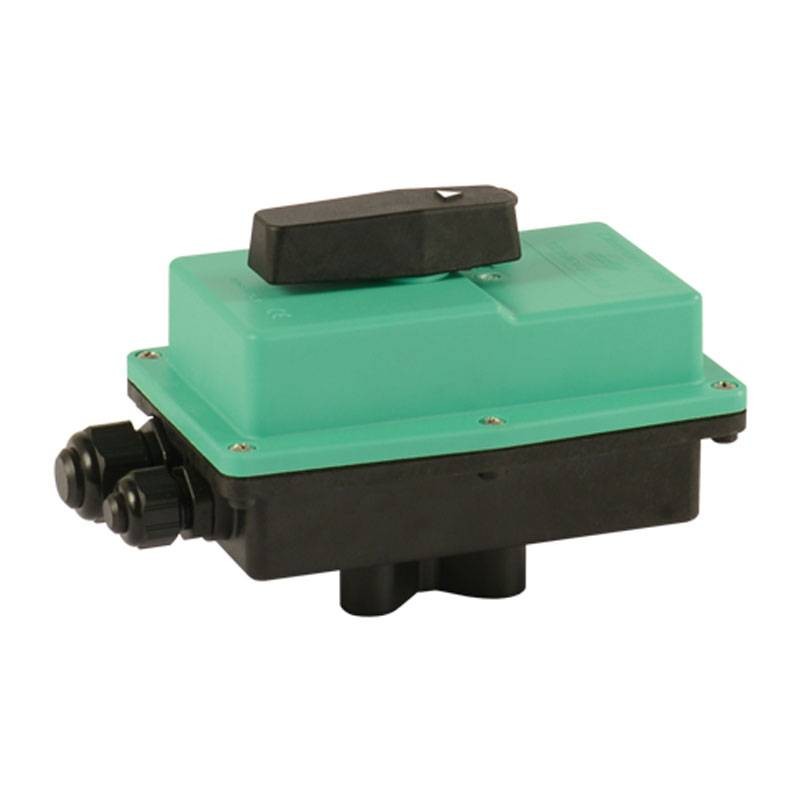

Comparato Servo drive Diamant Pro ISO5211 connection 24V DY242F2A
CMP DY242F2A
8053812083459
Electric servo drive Comparato Diamant PRO 24V DY242F2A: ISO5211 actuator with manual opening and IP67 for reliable, compact, versatile 2 and 3-way valves.
-
Power supply: 24V 50/60 Hz
-
Operating torque: 11 Nm
-
Standard ISO 5211 connection
-
Operating time: 35 seconds
-
Rotation angle: 90°
-
IP67 protection against dust and temporary immersion
-
Auxiliary microswitches in opening and closing
-
Manual opening from above
-
Compatible with Comparato 2 and 3-way valves
€186.96
Items Available: 1
Frequently bought together
Servo drive DY242F2A: professional automation with maximum protection
The Comparato Diamant PRO DY242F2A Servo drive is an electric actuator designed for the automatic control of 2 and 3-way ball valves in civil, industrial, and plant contexts. Thanks to its compact and robust structure, it combines efficiency, safety, and ease of use, making it ideal for controlling flows in hydraulic, thermal, industrial, and water treatment systems.
Reliable performance and compatibility with advanced systems
The actuator is powered at 24V (50/60 Hz) and provides an operating torque of 11 Nm, sufficient to ensure smooth and safe valve rotation even under pressure. The 35-second operating time allows for gradual and controlled flow adjustment, while the 90° rotation angle ensures compatibility with the most common valve bodies.
Thanks to the standard ISO 5211 connection, it can be easily paired with Comparato valve bodies from the PRO range, such as the DN32 2-way or 3-way models, ensuring direct and stable mounting.
Total protection and versatile management
The servo drive is equipped with an IP67 protection rating, making it resistant to dust and temporary immersion, ideal for harsh environments or those subject to humidity and splashes. It includes auxiliary micro switches for opening and closing as standard, useful for activating external signals or integrating the system into home automation or automation systems.
The manual opening from the top allows for quick intervention even in the event of a power failure, maintaining full control of the system in any situation.
Wide range of applications
Designed to adapt to various applications, the DY242F2A actuator is used in:
-
Industrial plants with hot or cold fluids
-
Refrigeration systems with glycol
-
Heating and cooling systems
-
Plants with alternative energies (solar, heat pumps)
-
Potable water and water treatment plants
-
Open or closed hydraulic systems
-
Compressed air distribution
-
Process automation
| MAIN FEATURES | |
|---|---|
| Electric control | All in one 2/3 points |
| Valve body connection | ISO 5211 F03 / F05 |
| Rotation | 90° |
| Operation | ON/OFF • Modulating |
| Compatible valve bodies | 2-way • 3-way diverter • 3-way mixer |
| Position indicator | Arrow on lever for manual opening |
| HARDWARE FEATURES | |
| Motor | Bidirectional synchronous |
| Electrical connections | Internal terminal block |
| Nominal torque | 11 Nm |
| Operating times (90°) | 35 seconds |
| Maximum noise level (1 m) | 35 dB(A) |
| Supplementary micro electric capacity | 1 A resistive |
| Heating resistance power | 3 W |
| ELECTRICAL FEATURES | |
| Power supply | 24V 50/60 Hz |
| Electric capacity phase output terminals 4 and 5 | 1 A resistive |
| ENVIRONMENTAL FEATURES | |
| Operating ambient temperature | -10°C ÷ 50°C |
| Protection rating | IP67 |
| MATERIALS | |
| External casing | Glass-filled “polyarylamide” technopolymer |
| External metal components and seals | AISI 303 GVR and brass CW617N • Silicone seals |
| CERTIFICATIONS | |
| Certification | CE |
