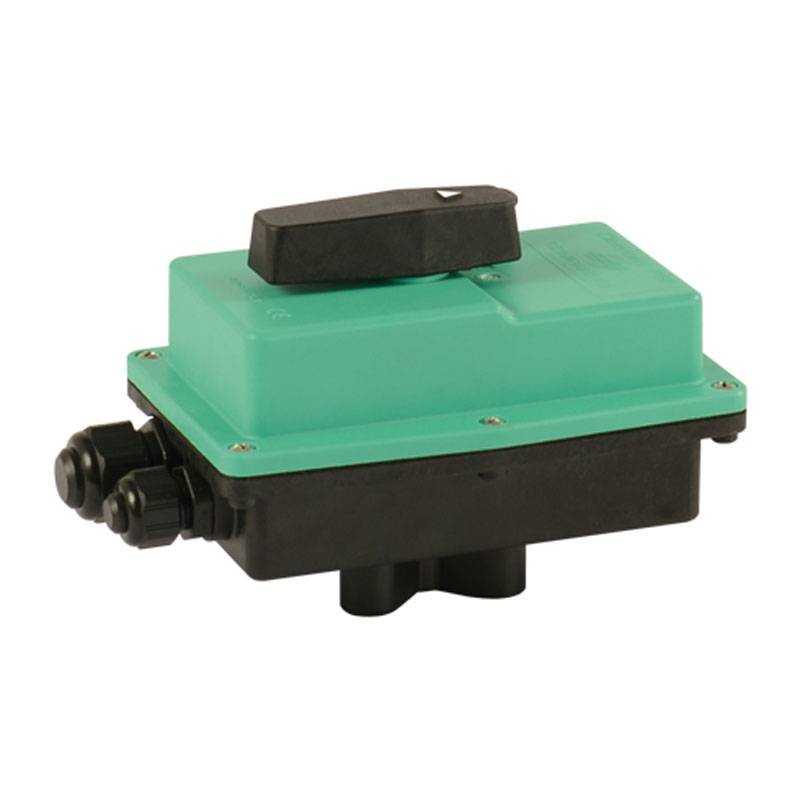

Comparato Servo drive Diamant Pro ISO5211 connection 230V DY222F2A
CMP DY222F2A
8053812077670
Electric servo drive Comparato Diamant PRO 230V DY222F2A: ISO5211 actuator with manual opening and IP67 for 2 and 3-way valves, reliable, compact, versatile.
-
Power supply: 230V 50/60 Hz
-
Operating torque: 11 Nm
-
Standard ISO 5211 connection
-
Operating time: 35 seconds
-
Rotation angle: 90°
-
IP67 protection against dust and temporary immersion
-
Auxiliary microswitches in opening and closing
-
Manual opening from the top
-
Compatible with Comparato 2 and 3-way valves
€181.22
Items Available: 3
: 2
Frequently bought together
Electric servo drive DY222F2A: professional automation with maximum protection
The Comparato Diamant PRO DY222F2A servo drive is an electric actuator designed for the automatic control of 2 and 3 way ball valves in civil, industrial, and plant contexts. Thanks to its compact and robust structure, it combines efficiency, safety, and ease of use, making it ideal for flow control in hydraulic, thermal, industrial, and water treatment systems.
Reliable performance and compatibility with advanced systems
The actuator is powered at 230V AC (50/60 Hz) and provides an operating torque of 11 Nm, sufficient to ensure smooth and safe valve rotation even under pressure. The 35-second operating time allows for gradual and controlled flow adjustment, while the 90° rotation angle ensures compatibility with the most common valve bodies.
Thanks to the standard ISO 5211 connection, it can be easily paired with Comparato valve bodies from the PRO range, such as the DN32 2 way or 3 way models, ensuring direct and stable mounting.
Total protection and versatile management
The actuator is equipped with IP67 protection rating, making it resistant to dust and temporary immersion, ideal for challenging environments or those subject to humidity and splashes. It includes auxiliary microswitches for opening and closing as standard, useful for activating external signals or integrating the system into home automation or automation systems.
The manual opening from the top allows for quick intervention even in case of power failure, maintaining full control of the system in any situation.
Wide range of applications
Designed to adapt to various applications, the DY222F2A actuator is used in:
-
Industrial plants with hot or cold fluids
-
Refrigeration systems with glycol
-
Heating and cooling systems
-
Plants with alternative energies (solar, heat pumps)
-
Potable water and water treatment plants
-
Open or closed hydraulic systems
-
Compressed air distribution
-
Process automation
| MAIN FEATURES | |
|---|---|
| Electric control | All in one 2/3 points |
| Valve body connection | ISO 5211 F03 / F05 |
| Rotation | 90° |
| Operation | ON/OFF • Modulating |
| Compatible valve bodies | 2 way • 3 way diverter • 3 way mixer |
| Position indicator | Arrow on lever for manual opening |
| HARDWARE FEATURES | |
| Motor | Bidirectional synchronous |
| Electrical connections | Internal terminal block |
| Nominal torque | 11 Nm |
| Operating times (90°) | 35 seconds |
| Maximum noise level (1 m) | 35 dB(A) |
| Supplementary micro electrical capacity | 1 A resistive |
| Heating resistor power | 3 W |
| ELECTRICAL FEATURES | |
| Power supply | 230V 50/60 Hz |
| Electrical capacity phase output terminals 4 and 5 | 1 A resistive |
| ENVIRONMENTAL FEATURES | |
| Operating ambient temperature | -10°C ÷ 50°C |
| Protection rating | IP67 |
| MATERIALS | |
| External casing | Glass-filled "polyarylamide" technopolymer |
| External metal components and seals | AISI 303 GVR and brass CW617N • Silicone seals |
| CERTIFICATIONS | |
| Certification | CE |
