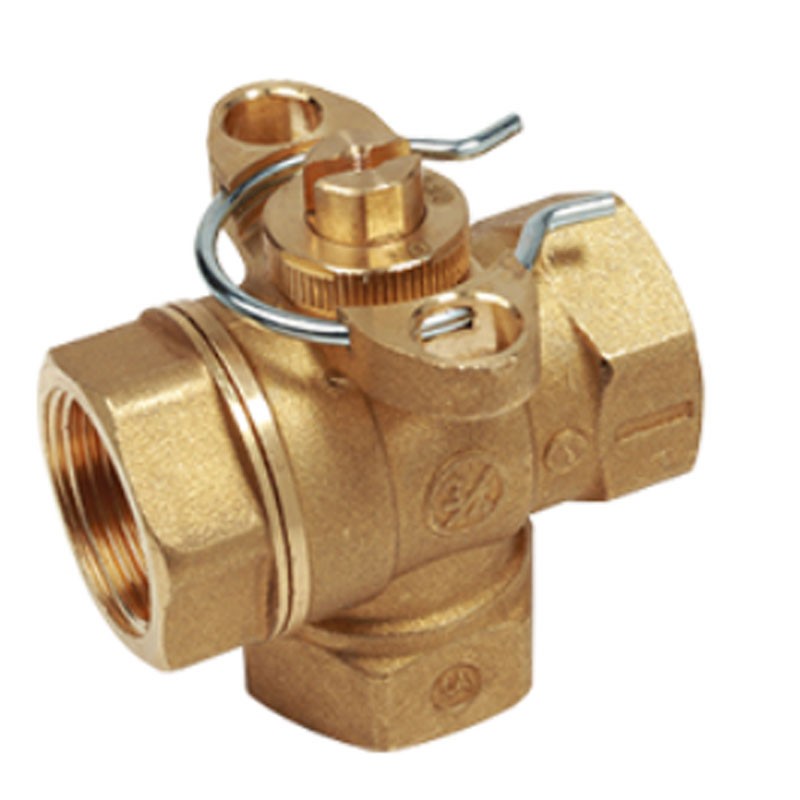

Giacomini three way ball diverter valve female 3/4 R279DY024
GIM R279DY024
8009902246112
Giacomini diverter valve, with the following features:
- Ball shutter
- Three ways
- Motorized
- With female connections (G)
- Dimensions 3/4"
- Connections: F-F
- Kv: 7,00
Article to combine with actuator series K270 or K272.
€21.22
Items Available: 11
: 3
Frequently bought together
R279D diver ter valves are intercepting devices of the heat transfer fluid that, operated by an actuator controlled by a thermostat or a clock, allow the automatic diversion of the fluid in air conditioning systems. Diverter valves are ideal for use in systems where multiple sources of heat generation are present.
Features:
- Giacomini Series
- Heat transfer fluid: water for air conditioning systems
- Maximum working temperature: 110 °C
- Maximum working pressure: 10 bar
- Can be motorized by installing the actuator series K270 or K272

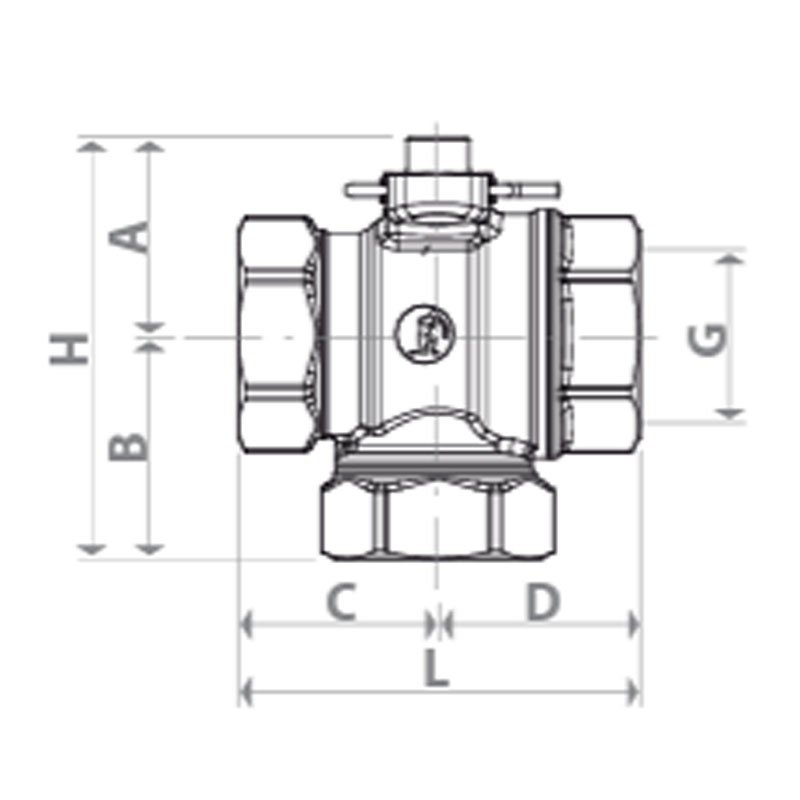

Dimensions:
- C 31 mm
- D 32 mm
- L 63 mm
- B 33 mm
- A 33 mm
- H 66 mm
Data sheet
- Type: Zone valves, diverter valves, actuators
- Connection: F/F
- Connections: 3/4 inches
