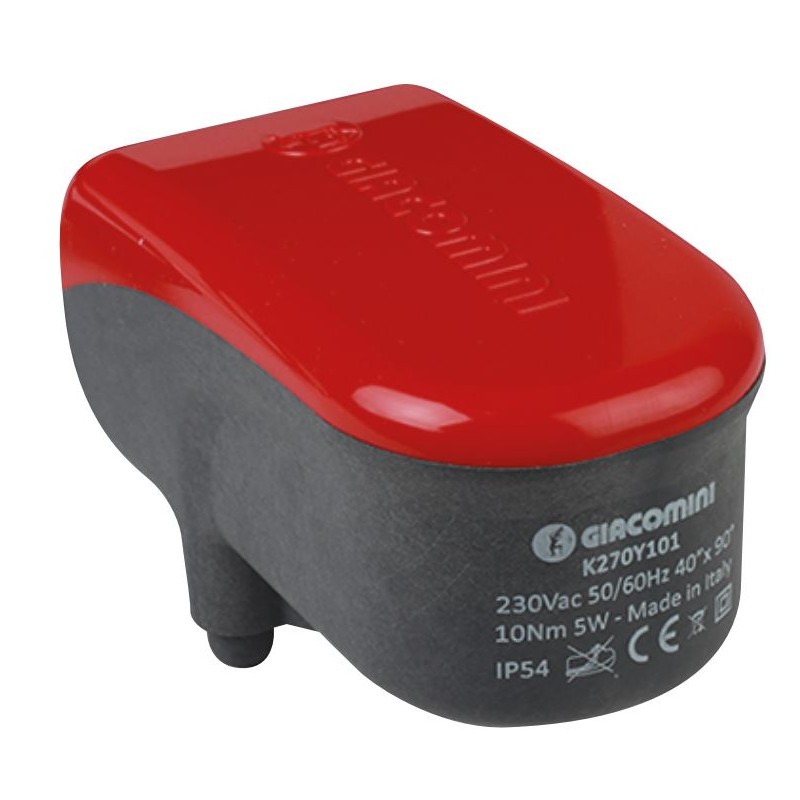

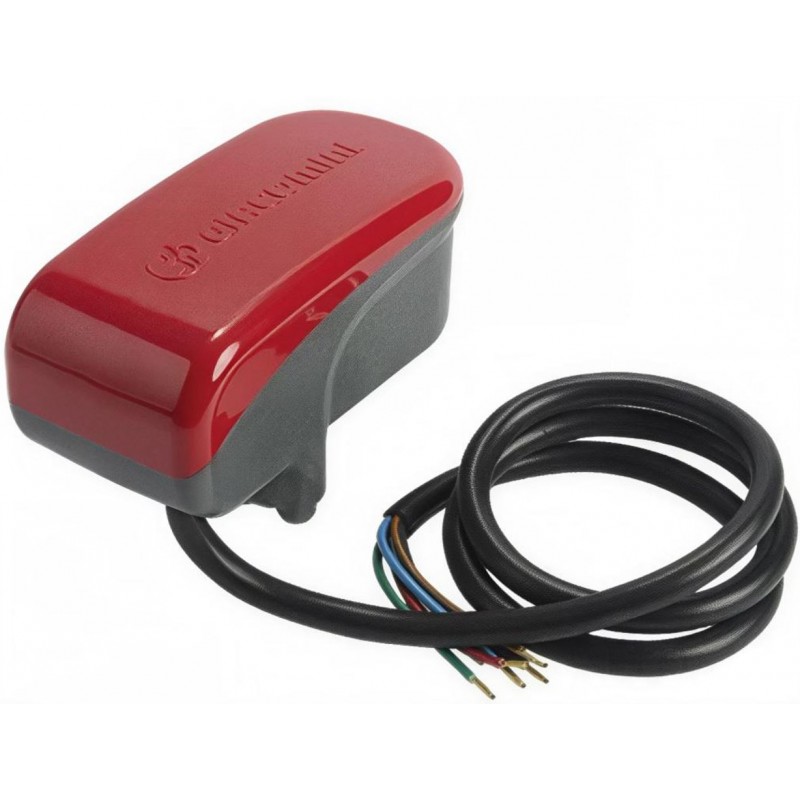

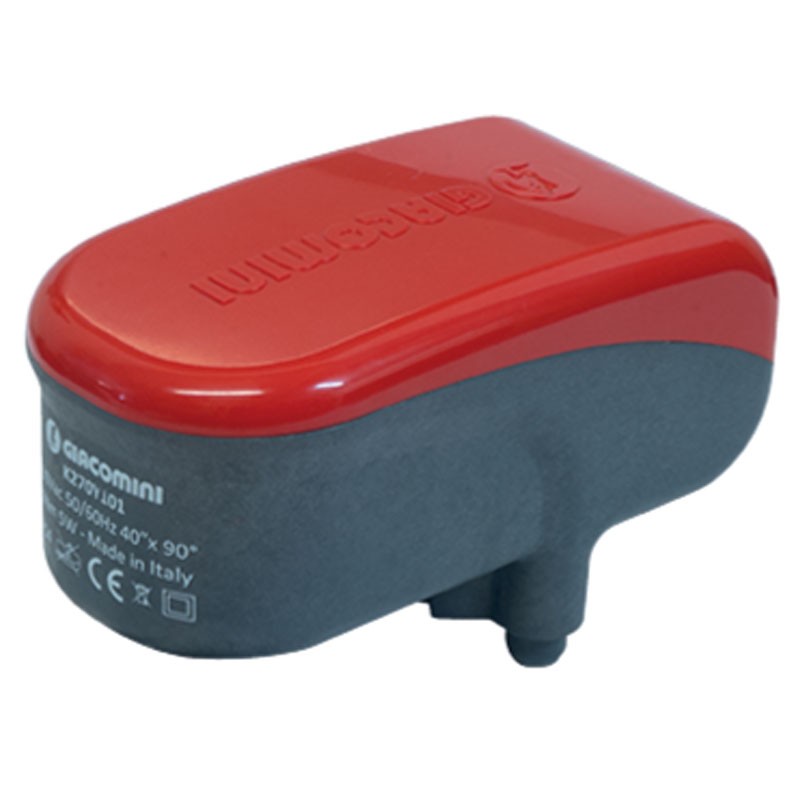

Giacomini actuator for zone valve control ON/OFF
GIM K270Y101
8009902293765
The Giacomini Actuator, is designed to control R276, R277, R278, R279 series zone valves and R279D diverter valve. Equipped with an auxiliary end-of-stroke microswitch, it offers reliable performance and precise control for managing residential and commercial plumbing systems:
-
Compatibility: Zone valves R276, R277, R278, R279 and diverter valve R279D
-
Control type: ON/OFF with 90-degree angle of rotation
-
Power supply: 230V, frequency 50 Hz
-
Maximum torque: 10 Nm
-
Opening time: 40 seconds
-
Power consumption: 5.5 watts
-
Auxiliary limit microswitch: Contact rating 6(1) amps
€75.29
Items Available: 83
: 18
Giacomini actuator for zone valve control ON/OFF
Advantages
- Universal compatibility: Compatible with a wide range of Giacomini valves.
- Reliable performance: Auxiliary microswitch for precise and safe control.
- Durability: IP54 and Class II protection rating for long service life.
- Efficiency: Low power consumption and maximum torque of 10 Nm.
- Easy maintenance: Accessible and intuitive installation
Applications
- Hydronic heating and cooling systems.
- Zone valve control in residential and commercial settings.
- Installations requiring actuators with auxiliary microswitches.
Installation
Shall be mounted horizontally or vertically with cover facing upward. It should be installed in dry, protected locations with easy access for any subsequent maintenance work. Do not cover with insulating materials
Technical Characteristics
| Specifications | Details |
|---|---|
| Power supply | 230V |
| Frequency | 50 Hz |
| Control Type | ON/OFF |
| Angle of Rotation | 90 degrees |
| Opening Time | 40 seconds |
| Maximum Torque | 10 Nm |
| Power Consumption | 5.5 Watts |
| Auxiliary End-of-Stroke Microswitch | Contact rating: 6 (1) Amperes |
| Protection Class | II |
| Insulation Class | IP54 |
| Operating Environment Temperature Range | -5/+55 degrees |
| Ambient Humidity Range | 95 % |
| Storage Temperature Range | -20/+70 degrees |
Buon prodotto comprato per sostituire quello precedente
Prodotto ottimo,già utilizzato in precedenza del vecchio modello,che pur funzionati, ho voluto aggiornare l'impianto con il nuovo più veloce nella risposta..
Oggetto come da descrizione, venditore consigliato, spedizione veloce.
El producto ha funcionado correctamente y tdo ha ido según lo previsto.
Volvería a comprar con Uds.
Muy buen precio y entrega muy rápida..
Tecnicamente valida. Schema di collegamento semplice e comprensibile.
Pur riportando il codice giusto c'è l'errore del 24V che invece è a 220V
Data sheet
- Type: Zone valves, diverter valves, actuators
