Watts 22C 230V NC 4-wire electrothermal actuator for radiators 22C230NC4
CZZ 22C230NC4
8016466100347

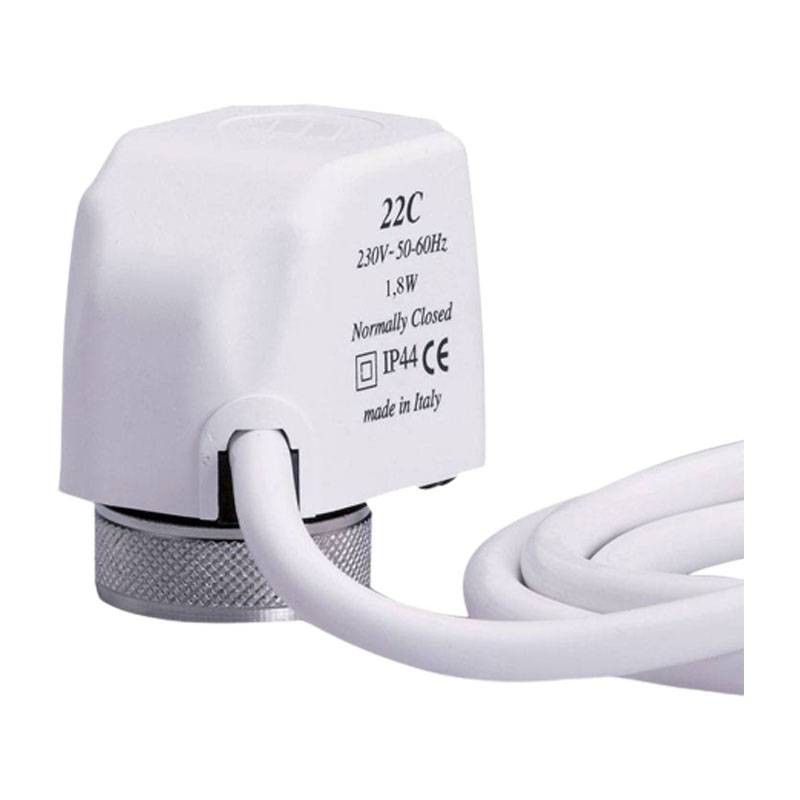

Watts compact electrothermal actuator model 22C:
- 230V NC power supply
- With cable ø = 7.2mm
- 4 wires
- IP44 degree of protection
- Vertical position
- Stroke: 3.5mm
- Shutter thrust: 100N (NC version)
- Ambient temperature: 0÷50°C
- Auxiliary contact rating: 700mA
- 4-wire version (NA4 NC4) complete with auxiliary microswitch
Compact electrothermal actuator with on/off action compatible with thermostatizable radiator valves, fan-coil valves and manifolds. Cap made of self-extinguishing polymeric material. Nickel-plated brass threaded ring nut M30x1.5. Normally closed (NC).
Watts 22C 230V NC 4-wire electrothermal actuator for radiators 22C230NC4
€37.41
€37.41
Tax included
Tax included
Pay in installments with Klarna
Items Available: 18
Frequently bought together
Overview:
Series 22C, 22CX, 22CX5, 26LC electrothermal actuators are ON/OFF devices used for automatic actuation of thermostatic valves, fan coil valves, manifolds.
Electrothermal actuators are available in the following versions:
- NO (Normally Open), NC (Normally Closed),
- 2-wire or 4-wire (with auxiliary microswitch), which can be attached to the valve body with M30x1.5 threaded ring nut
Features:
- Normally Closed (NC)
- Shutter thrust: 100N (NC version)
- Ambient temperature: 0÷50°C. 4-wire version (NA4 NC4) complete with auxiliary microswitch
- Auxiliary contact rating: 700mA inductive-3A resistive
- IP44 degree of protection in vertical position
- Compliant Directives: LVD 2014/35/UE, EMC 2014/30/UE. TÜV approved
Data sheet
- Type:
- Zone valves, diverter valves, actuators
