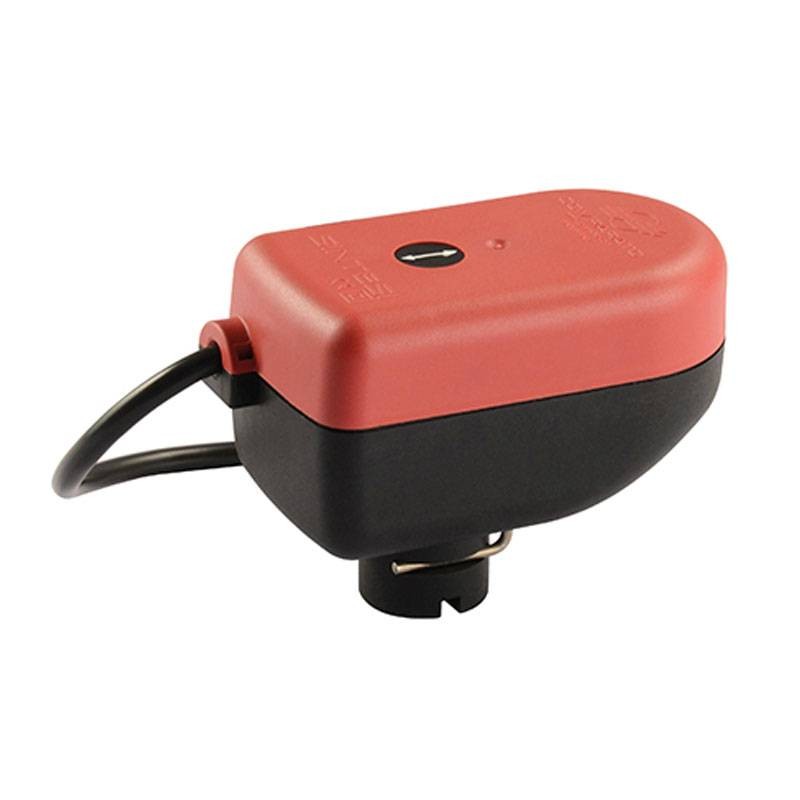

Comparato Rotary Valve Servo Control Synthesis 2 Points 24V ON/OFF SR2421U
CMP SR2421U
8053812101658
Sintesi Comparato Rotary Servocontrol is a 2-point electric ON/OFF actuator designed for Sintesi range valves, ideal for HVAC, heating, cooling and domestic water systems, with the following features:
-
Power supply: 24V
-
Electrical control: 2-point ON/OFF
-
Angle of rotation: 90 degrees
-
Degree of protection: IP54
-
Shell material: Polyamide PA6 with 30% glass fiber
-
Manual operation in case of emergency
€75.17
Items Available: 4
: 2
Frequently bought together
Comparato Servocontrol: HVAC Control Fast Installation
Precise control for HVAC and plumbing systems
The servo control is designed for valve automation in heating, cooling and domestic water systems, as well as alternative energy and solar thermal systems.
Quick and safe installation
Thanks to the quick push-to-connect coupling, installation on the Sintesi valve is quick and easy. In addition, it can be plumbed (seals not included) to prevent unauthorized disassembly.
Sintesi ON/OFF Servocontrol with Manual Operation.
Reliable ON/OFF operation:
-
90-degree rotation in 45 seconds for effective adjustment
-
Additional microswitch with 1A resistive rating, 250V
-
Position indicator for immediate visual control
Manual operation for emergencies
If needed, the servo control can be unlocked and used as a knob for manually opening and closing the valve.
Technical Specifications Comparato Servocontrol
| Feature | Value |
|---|---|
| Power supply | 24V |
| Electric control | 2 Points |
| Operation | ON/OFF |
| Power cable | Length 80 cm |
| Torque | 8 Nm |
| Angle of rotation | 90 degrees |
| Power consumption | 3.9 VA |
| Electrical capacity of phase output to gray wire | 1 A resistive |
| Electrical capacity of supplementary microswitch | 1 A resistive, 250V |
| Position indicator | Rotating arrow |
| Maneuvering time | 45 seconds |
| Maximum noise level | 40 dB(A) |
| Ambient operating temperature | +5/+50 degrees |
| Degree of protection | IP54 |
| Insulation class | II - double insulation |
| Outer shell material | Polyamide PA 6, 30% glass fibers |
There are no reviews
Data sheet
- Type: Zone valves, diverter valves, actuators
