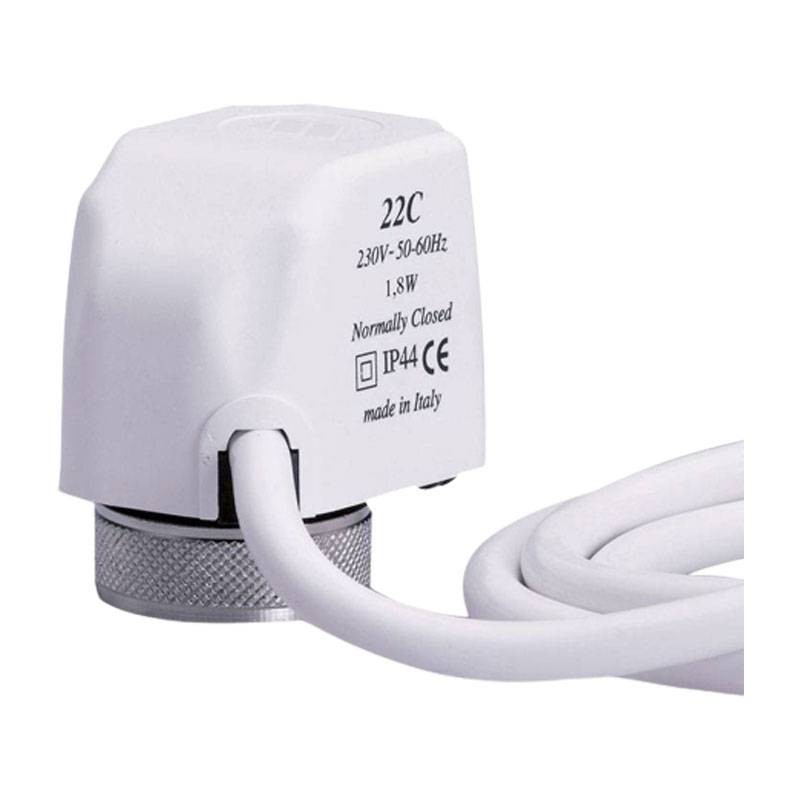

Watts 22C 230V NA 2-wire electrothermal actuator for radiators 22C230NA2
CZZ 22C230NA2
8016466103737
Watts compact electrothermal actuator model 22C:
- 230V NA power supply
- With cable ø = 7.2mm
- 2 wires
- IP44 degree of protection
- Vertical position
- Stroke: 3.5mm
- Shutter thrust: 80N (NO version)
- Ambient temperature: 0÷50°C
- Auxiliary contact rating: 700mA
Compact electrothermal actuator with on/off action compatible with thermostatizable radiator valves, fan-coil valves and manifolds. Cap made of self-extinguishing polymeric material. Nickel-plated brass threaded ring nut M30x1.5. Normally Open (NO).
Watts 22C 230V NA 2-wire electrothermal actuator for radiators 22C230NA2
€37.41
€37.41
Tax included
Tax included
Pay in installments with Klarna
Items Available: 10
Frequently bought together
Overview:
Series 22C, 22CX, 22CX5, 26LC electrothermal actuators are ON/OFF devices used for automatic actuation of thermostatic valves, fan coil valves, manifolds.
Electrothermal actuators are available in the following versions:
- NO (Normally Open), NC (Normally Closed).
- 2-wire or 4-wire (with auxiliary microswitch), attachable to the valve body with M30x1.5 threaded ring nut
Features:
- Self-extinguishing polymeric material cap
- Nickel-plated brass threaded ferrule M30x1.5
- Normally Open (NO)
- Stroke: 3.5mm
- Plug thrust: 80N (NO version)
- Ambient temperature: 0÷50°C
- Auxiliary contact rating: 700mA inductive-3A resistive
- IP44 degree of protection in vertical position
- Compliant Directives: LVD 2014/35/EU, EMC 2014/30/EU, TÜV Approved
There are no reviews
Data sheet
- Type:
- Zone valves, diverter valves, actuators
