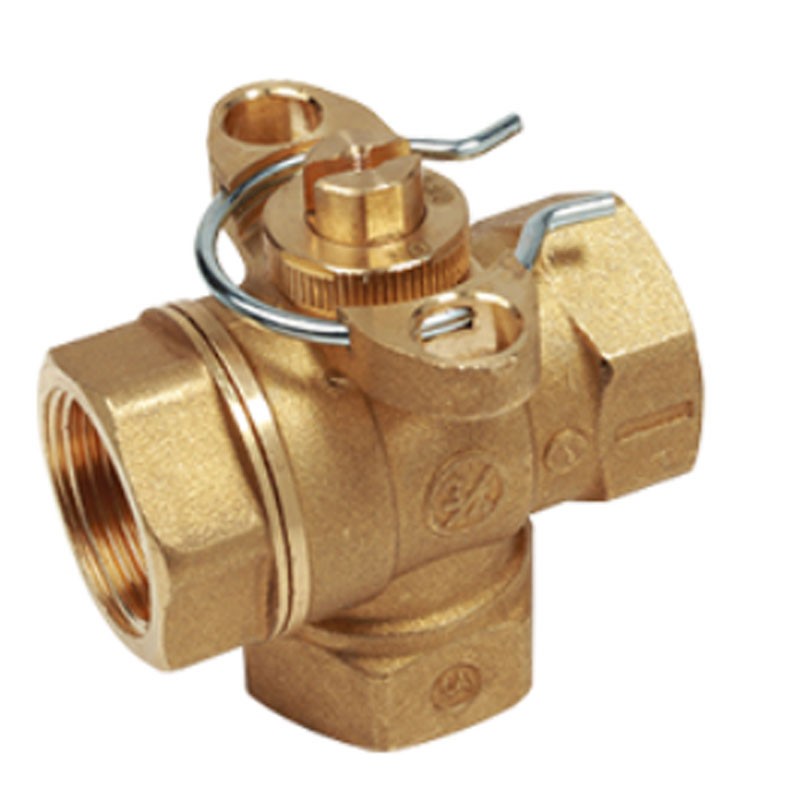

Giacomini 1" female three way diverter valve R279DY025
GIM R279DY025
8009902246235
Giacomini diverter valve, with the following features:
- Ball shutter
- Three ways
- Motorized
- With female connections (G)
- Dimensions 1 inch
- Connections: F-F
- Kv: 11,00
Article to combine with actuator series K270 or K272.
€26.73
Items Available: 16
: 3
Frequently bought together
R279D diver ter valves are intercepting devices of the heat transfer fluid that, operated by an actuator controlled by a thermostat or a clock, allow the automatic diversion of the fluid in air conditioning systems. Diverter valves are ideal for use in systems where multiple sources of heat generation are present.
Features:
- Giacomini Series
- Heat transfer fluid: water for air conditioning systems
- Maximum working temperature: 110 °C
- Maximum working pressure: 10 bar
- Can be motorized by installing the actuator series K270 or K272

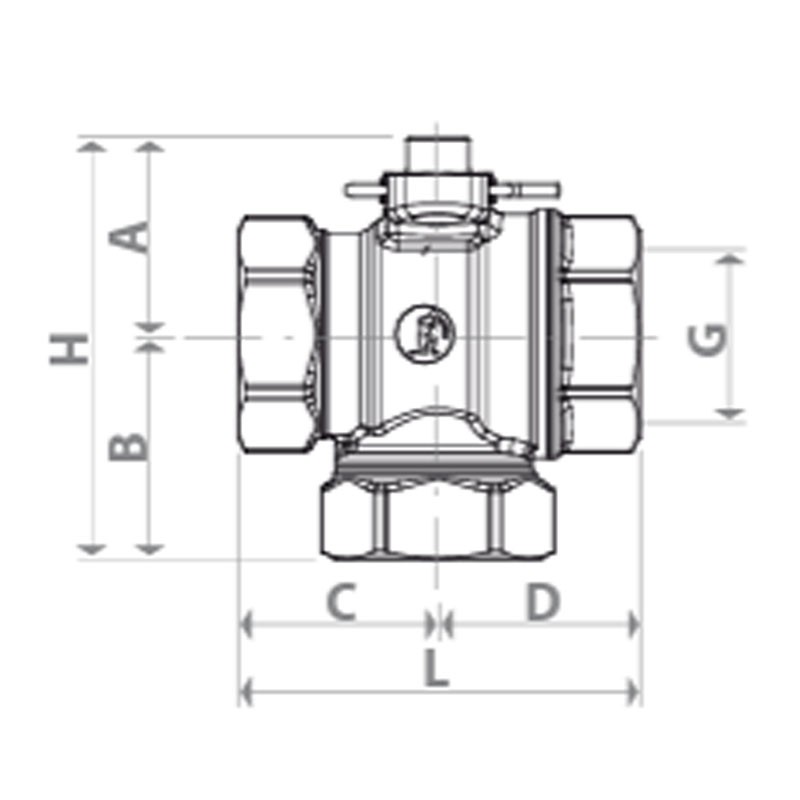

Dimensions:
- C 38 mm
- D 38 mm
- L 76 mm
- B 42 mm
- A 37 mm
- H 79 mm
There are no reviews
Data sheet
- Type: Zone valves, diverter valves, actuators
- Connection: F/F
- Connections: 1 inch
