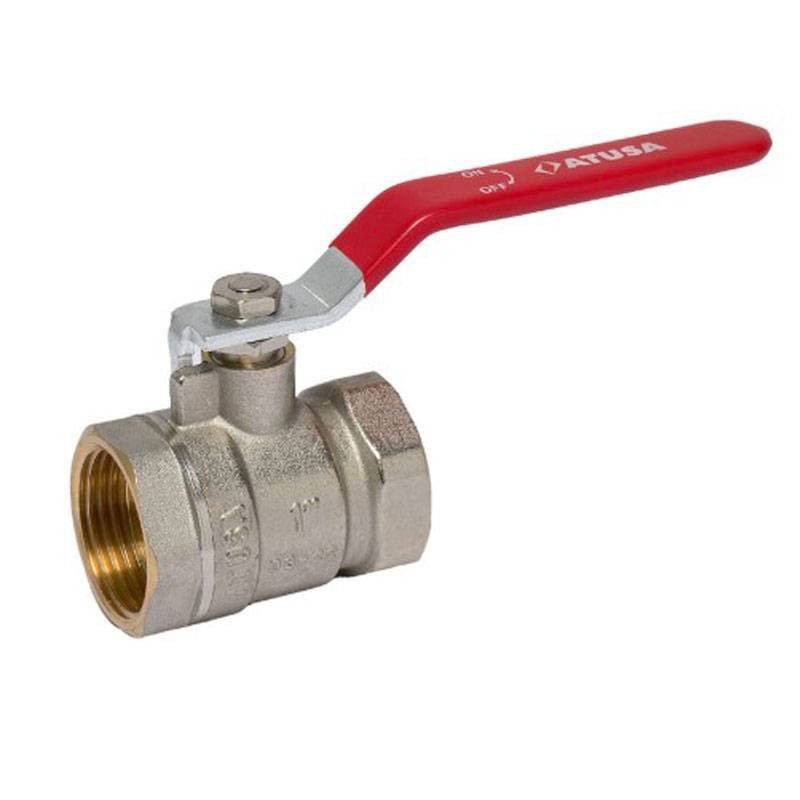

Atusa lever ball valve F/F 1 inch red brass VSR05505
EUC VSR05505
8432388274155
Atusa Lever Ball Valve designed to provide controlled flow in various distribution systems. With a robust design and PTFE seal, it is an ideal choice for hydraulic and compressed air systems, with the following features:
-
Port: Female/Female 1 inch
-
Internal diameter: 22 mm
-
Maximum pressure: 25 bar
-
Material: Brass
-
Color: Red
-

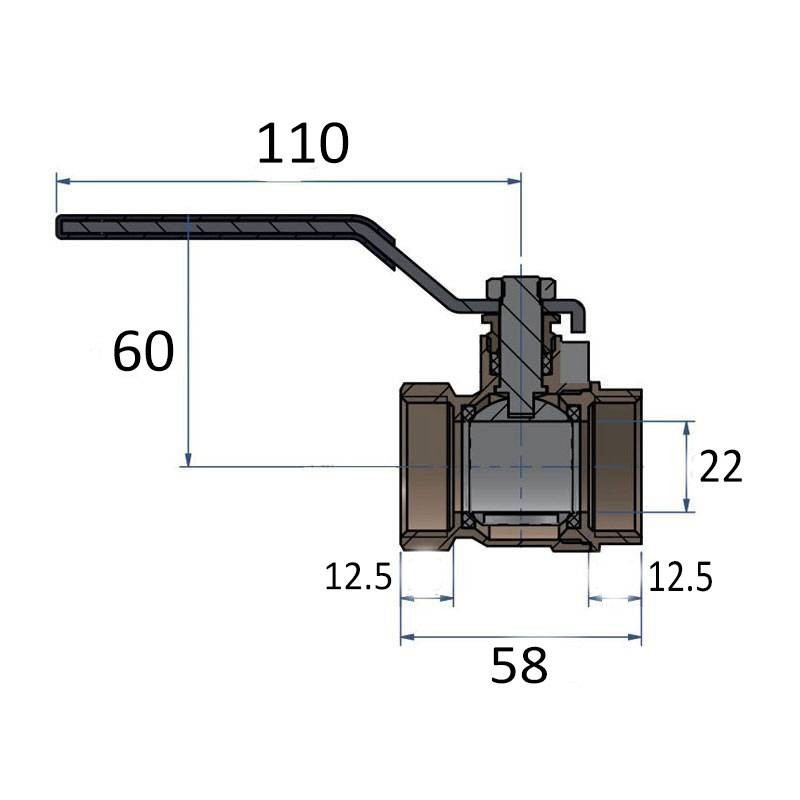

Dimensions: 58x12.5x110x60 mm
-
Operation: Lever for quick opening/closing
€8.33
Items Available: 53
: 48
Atusa ball valve for plumbing and compressed air systems
The Atusa 1-inch lever ball valve offers an efficient solution for fluid control in domestic and industrial systems. Made of red brass, a material known for its high resistance to corrosion and chemicals, it is designed for intensive and long-lasting use, even in exposed or critical environments.
Perfect seal and easy maneuverability
Thanks to the PTFE seal, the valve ensures a perfect seal under all operating conditions, preventing leakage and minimizing maintenance. The ergonomic control lever allows for quick and precise action, making the valve ideal for frequent adjustments or emergencies.
High performance in any environment
Designed to withstand pressures up to 25 bar and temperatures between -20 and +120 degrees, the valve easily adapts to multiple systems: hot and cold water, heating systems, compressed air, and irrigation systems. The compact body facilitates installation even in tight spaces.
Areas of application
-
Civil and industrial plumbing systems: water flow control
-
Compressed air systems: pressure management and safety
-
Heating networks: flow control in boilers or radiators
-
Irrigation systems: quick closing and opening of water
Technical Characteristics Atusa Ball Valve
| Parameter | Value |
|---|---|
| Connection | Female/Female 1 inch |
| Inner diameter | 22 mm |
| Body material | Red brass |
| Maximum pressure | 25 bar (PN 25) |
| Operating temperature | -20/+120 degrees |
| Stuffing box | PTFE |
| Control type | Lever |
| Dimensions | 58x12.5x110x60 mm |
| Applications | Hot/cold water, compressed air, heating, irrigation |
There are no reviews
Data sheet
- Type: Ball valves
- Connection: F/F
- System: Water
- Connections: 1 inch
