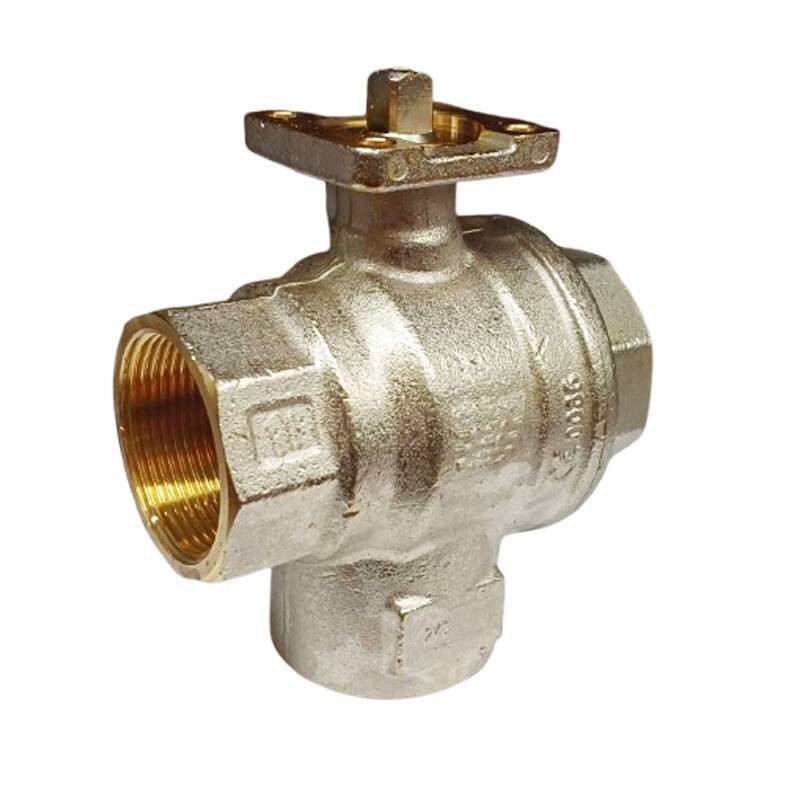

Comparato 3-way ball valve 1 1/2 for Compact and Universal Pro UC3E3E5
CMP UC3E3E5
8053812103348
Comparato 3-way ball valve DN40 UC3E3E5 in brass for Compact and Universal PRO: reliable mixing and diverting, full bore and zero leakage.
-
3-way ball valve F/F/F vertical, full bore
-
Female threaded connections Rp 11/2 EN 10226-1
-
3-hole ball drilling mixer/diverter function
-
Nominal diameter: DN40
-
Nominal pressure: PN10
-
Max: 6 bar with Compact PRO / 10 bar with Universal PRO
-
Flow rate Kvs: 47.3 m³/h
-
Rotation: 90°
-
Actuator connection: ISO 5211
-
Material: brass
-
Compliant with EN 12266-1 Grade A zero leakage
-
Compliant with D.M. 174/2004 for drinking water
€197.74
Items Available: 3
: 2
Frequently bought together
3-way ball valve UC3E3E5: fluid control for mixing and diverting in automated systems
The 3-way ball valve Comparato UC3E3E5 is an efficient and compact solution for applications requiring flow mixing or diverting in plumbing and industrial systems. The vertical three-way configuration with full bore ensures optimal fluid distribution, with high flow rate (Kvs 47.3 m³/h) and low pressure losses. Designed for use with Compact PRO and Universal PRO servomotors, it allows precise 90° rotation and guarantees reliable and durable automatic operation.
Total compatibility and simplified installation
Thanks to the ISO 5211 connection, this valve easily integrates with the main electric actuators of the PRO range. The female threaded connections Rp 11/2, compliant with EN 10226-1 standard, ensure quick assembly and perfect sealing. It is designed for a maximum differential pressure of 6 bar with Compact PRO and 10 bar with Universal PRO, offering flexibility in actuator choice based on the type of system and operating conditions.
Certified safety and materials suitable for drinking water
The valve is made of high-quality brass, corrosion-resistant and also suitable for sanitary applications. It complies with Ministerial Decree no.174 of 06/04/2004, certifying its suitability for contact with drinking water. The valve is also tested according to EN 12266-1 Grade A standard, ensuring zero leakage, a fundamental element for applications requiring maximum fluid tightness.
Fields of application
This 3-way ball valve is suitable for multiple contexts:
-
Fluid mixing or diverting systems
-
Heating and cooling systems
-
Hydraulic circuits with glycol or heat transfer fluids
-
Civil and industrial automation
-
Drinking water treatment and distribution
-
Alternative energy systems (heat pumps, solar thermal)
-
Open and closed hydraulic systems.
There are no reviews
Data sheet
- Type: Ball valves
- Connection: F/F
- Connections: 1-1/2 inches
