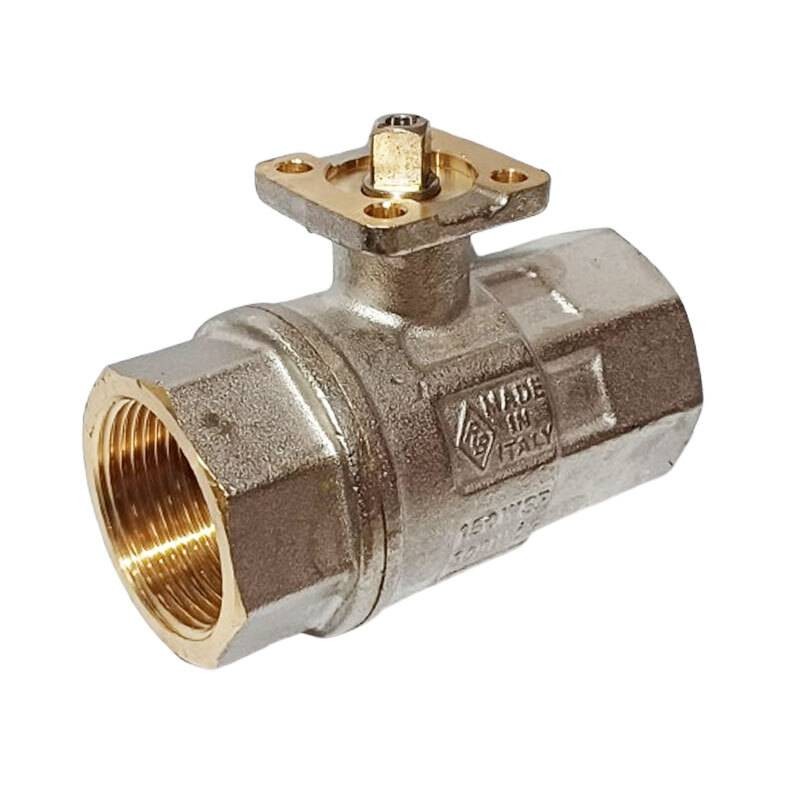

Comparato 2-way ball valve 1 1/2 for Compact Pro UC2E2M5
CMP UC2E2M5
8053812103058
Comparato 2-way ball valve DN40 FF in brass for Compact PRO: full bore, zero leakage, high performance up to 40 bar.
-
2-way ball valve in brass
-
Female threaded connections Rp 11/2 (DN40) EN 10226-1
-
Full bore flow rate Kvs 230 m³/h
-
Nominal pressure PN40 p max 40 bar
-
Actuator connection ISO 5211
-
Compliant with D.M. 174/2004 for drinking water
-
Perfect sealing: zero leakage (EN 12266-1 Grade A)
-
Compatible with Compact PRO actuator
€102.94
Items Available: 3
: 2
Frequently bought together
Ball valve DN40: maximum efficiency for professional systems
The 2-way ball valve Comparato UC2E2M5, with 11/2 female threaded connections, is designed to ensure precise and safe flow management in modern thermo-hydraulic and industrial automation systems. Combined with the Compact PRO actuator, it allows for intercepting, diverting, regulating, and mixing fluids with total reliability, even under severe operating conditions.
Robust structure and full bore
Made of high-quality brass, this valve offers optimal mechanical and chemical resistance, making it suitable for applications with hot water, cold water, glycol, and other technical fluids. The full bore allows for maintaining high flow rates without pressure losses, with a Kvs value of 230 m³/h, ideal for high-efficiency systems. The 90° rotation and standardized ISO 5211 interface facilitate mounting and automated management via electric actuators.
Safety and regulatory compliance
This component complies with Ministerial Decree no. 174 of 06/04/2004, authorizing its use for the transport of drinking water. Furthermore, it is tested according to the EN 12266-1 Grade A standard, certifying zero leakage, ensuring perfect sealing of the ball even after long work cycles. Perfect sealing is crucial in systems where high operational reliability is required, such as in open or closed hydraulic systems, alternative energy plants, water treatment, and industrial air conditioning.
There are no reviews
Data sheet
- Type: Ball valves
- Connection: F/F
- Connections: 1-1/2 inches
