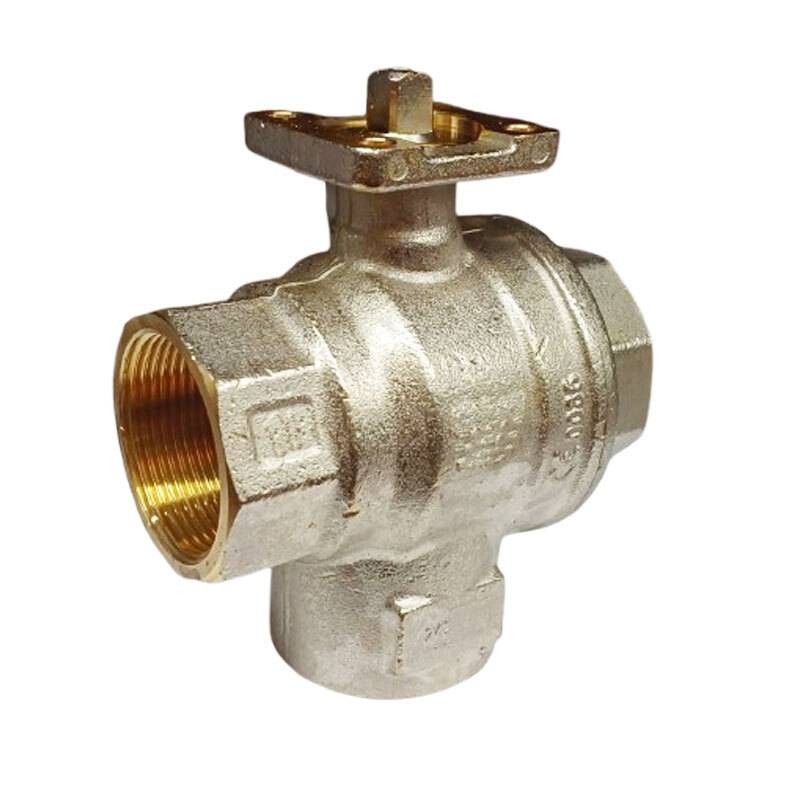

Comparato 3-way ball valve 1 1/4 for Compact Pro UC3D3E5
CMP UC3D3E5
8053812103287
Comparato 3-way ball valve DN32 UC3D3E5 in brass for Compact PRO: smooth mixing and diverting with full bore and zero leakage.
-
3-way I/I/I vertical ball valve, full bore
-
In brass, with 3-hole ball drilling
-
Connections Rp 11/4 EN 10226-1
-
Compatible with Compact PRO actuator
-
Functions: mixing and diverter
-
DN32 PN10
-
Kvs: 27.2 m³/h
-
Max: 10 bar
-
Rotation: 90°
-
Actuator connection: ISO 5211
-
Zero leakage EN 12266-1 Grade A
-
Compliant with D.M. 174/2004 for drinking water
€147.94
Items Available: 2
: 1
Frequently bought together
3-way vertical ball valve DN32: fluid control for mixing and diverting
The 3-way ball valve Comparato UC3D3E5, with vertical 3-way I/I/I configuration, is designed to offer effective flow management in thermohydraulic and industrial systems. Thanks to compatibility with the Compact PRO actuator, it allows for precise and reliable interception, diversion, or mixing of fluids.
Vertical design and full bore for maximum efficiency
The vertical configuration with full bore allows for optimized flow, minimizing pressure losses. The 3-hole ball drilling ensures smooth and continuous fluid passage management, making it ideal for mixing or diverting functions in complex systems.
With a Kvs of 27.2 m³/h and a nominal pressure PN10, this valve is suitable for applications in civil, commercial, and industrial fields where precise regulation at low/medium pressure is required.
Certified reliability and ease of integration
Equipped with female threaded connections Rp 1-1/4, according to EN 10226-1 standard, and ISO 5211 interface, the valve easily integrates with automated electric actuators, particularly the Compact PRO.
It complies with Ministerial Decree 174/2004, making it suitable for use with drinking water, and is tested according to EN 12266-1 Grade A, certifying zero leakage and ensuring maximum sealing under intense working conditions.
This 3-way valve is suitable for:
-
Mixing and diverting systems in hydraulic installations
-
Heating and cooling systems
-
Glycol systems for industrial refrigeration
-
Automation in civil and tertiary installations
-
Water treatment and drinking water distribution
-
Alternative energy systems
-
Open and closed hydraulic systems
There are no reviews
Data sheet
- Type: Ball valves
- Connection: F/F
- Connections: 1-1/4 inches
