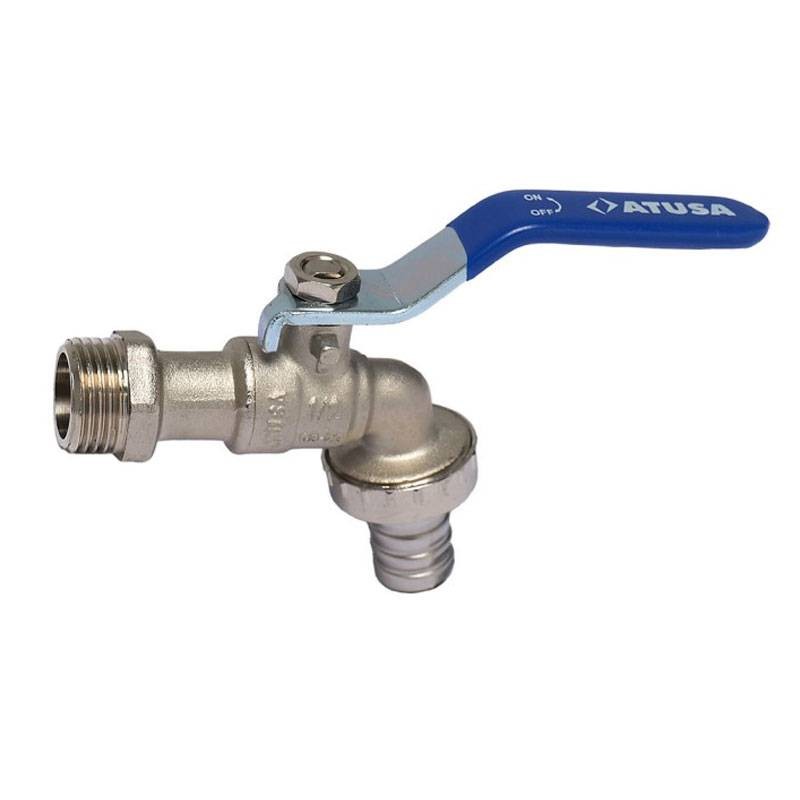

Atusa curved ball valve with lever 1 inch x 1 1/4 PN16 VS045005
EUC VS045005
8432388004721
Atusa curved ball valve with double pipe connection and antifreeze system, with the following features:
-
Connections: 1 inch x 1 inch 1/4 male
-
Body material: brass
-
Body and component finish: Nickel Chromed
-
Pressure rating: 16 bar
-
Handle: Steel with blue PVC
-
Antifreeze system: Yes
-
Lock type: 1/4 turn (on/off)
€8.94
Items Available: 10
: 9
Curved ball faucet for plumbing and irrigation systems
The Ausa Curved Ball Faucet is designed for applications in plumbing, civil, and irrigation systems where reliability, durability, and ease of use are required. Thanks to its brass, nickel-plated construction and chrome-plated ball, it ensures long life and excellent tightness even in harsh environmental conditions.
The product is particularly suitable for hot and cold water management, with exposed installations or integrated into more complex systems.
Antifreeze system and quick closure
Equipped with an integrated antifreeze system, the faucet is suitable for installations in outdoor environments or subject to temperature changes. The quick-closing mechanism (1/4 turn) also facilitates use in settings where immediate interruption of flow is required.
Recommended applications
-
Irrigation systems
-
Domestic and building water networks
-
Outdoor faucets (gardens, terraces, vegetable gardens)
-
Replacement of old ball faucets or manual valves

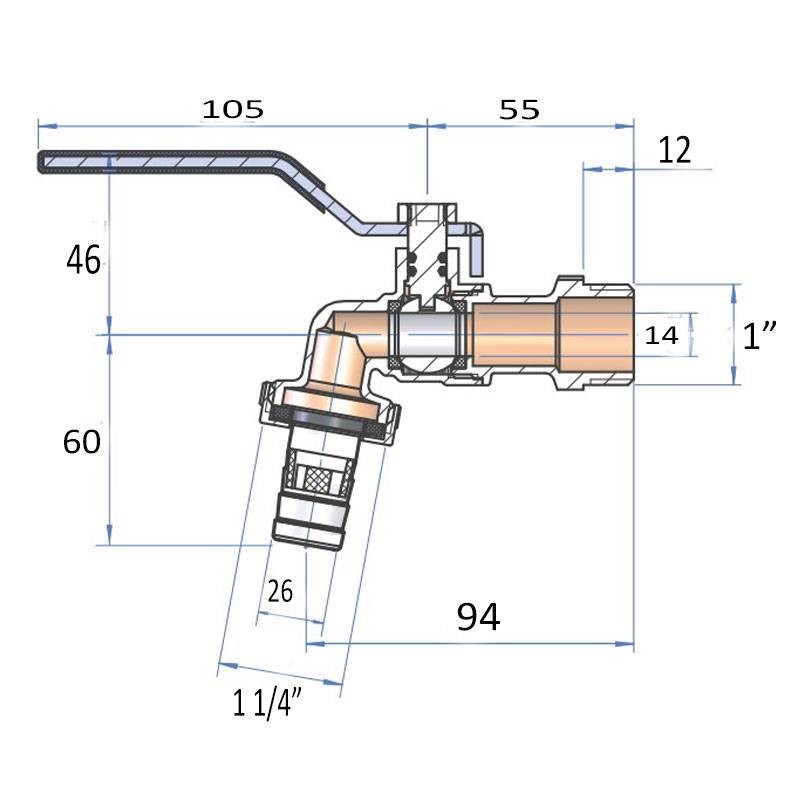

Technical Specifications Atusa Ball Faucet
| Dimensions | 1 inch x 1 inch 1/4 |
| Pressure rating (PN) | 16 bar |
| Operating Temperature | -10/+90 degrees |
| Connection | Male threaded in accordance with UNI EN ISO 228-1 |
| Closure type | 1/4 turn (on/off) |
| Antifreeze system | Yes, integrated |
| Double hose connection | Yes, for rubber hose |
| Body material | Brass |
| Body and component finish | Nickel plated / Chrome plated |
| Ball | Chrome plated brass |
| Handle | Steel with blue PVC coating |
| Diffuser | Polyethylene |
| Hose connection | Stainless steel 26 mm diameter |
| Seals | PTFE and NBR O-ring |
| Inner hole diameter | 14 mm |
| Total length | 94 mm |
| Total height | 105 mm |
| Weight | 294 g |
There are no reviews
Data sheet
- Type: Ball valves
- Connection: M
- System: Water
- Connections: 1 inch
1-1/4 inches
