Reference Guide CEI 20-67 as applicable: FG16OR cable is suitable for power supply in industry, construction sites, residential building. For indoor and outdoor fixed laying, even in wet environments; for direct and indirect underground laying. For outdoor installation, on masonry and metal structures, on walkways, pipes, ducts and similar systems. Suitable for bundle installations in environments with higher risk in case of fire.



Reference Construction Products Regulation 305/2011 EU and Standard EN 50575: Given the properties of limiting the development of fire and the emission of heat, the cable is suitable for the supply of electrical energy in buildings and other civil engineering works.

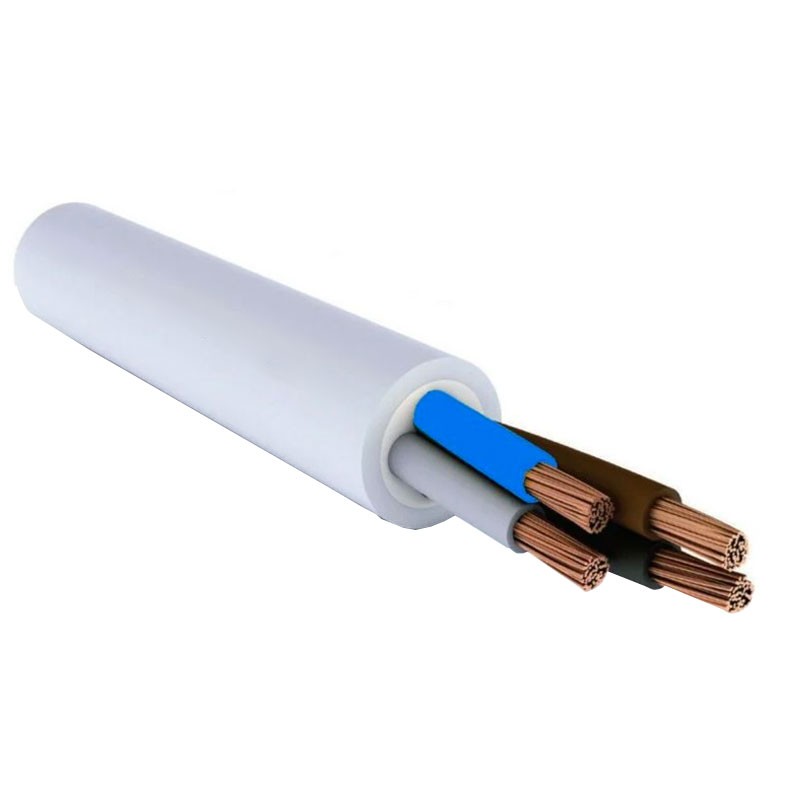

Description:

• Conductor: red copper, flexible formation, class 5
• Insulation: rubber, G16 quality
• Filler: thermoplastic, penetrating between cores (only in multi-core cables)
• Sheath: PVC, R16 quality
• Color: gray



Functional characteristics:

• Rated voltage Uo/U: 600/1000 V ac 1500 V dc.
• Maximum voltage Um: 1200 V AC 1800 V DC also to ground
• Industrial test voltage: 4000 V
• Maximum working temperature: 90°C
• Minimum operating temperature: -15°C (in the absence of mechanical stress)
• Maximum short circuit temperature: 250°C



Good resistance to industrial oils and greases. Good behaviour at low temperatures. Resistant to UV rays.




Laying conditions:

• Minimum laying temperature: 0°C
• Recommended minimum bending radius: 4 times the cable diameter
• Maximum recommended tensile stress: 50 N/mm2 of copper section



Reaction to fire: Complies with CPR REGULATION 305/2011/EU:

• Standard: EN 50575:2014+A1:2016
• Class: Cca-s3, d1, a3
• Classification: (CEI UNEL 35016) EN 13501-6
• Heat and smoke emission and flame development EN 50399
• Non-propagation of flame: EN 60332-1-2
• Corrosive and halogenated gases: EN 60754-2
• Notified Body: 0051 - IMQ
