Lovato motor saver breaking capacity A 400V 100kA 9 to 14A SM1P1400
LOV SM1P1400
8013975216200

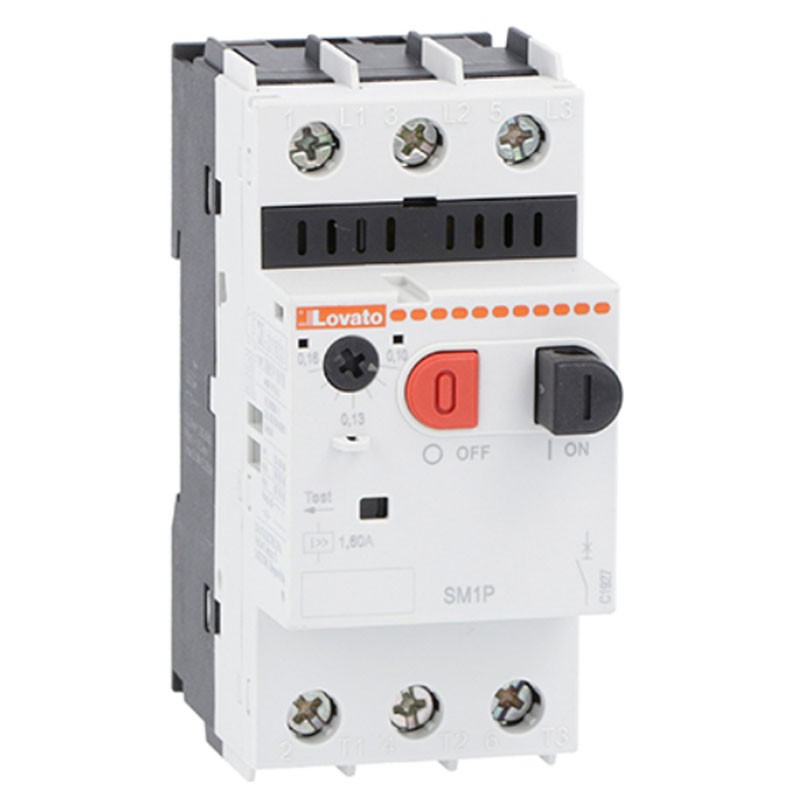

Lovato SM1P motor protection circuit breaker, with the following characteristics:
- IEC/EN rated insulation voltage Ui: 690V
- Rated impulse withstand voltage Uimp: kV 6
- Rated frequency: 50/60 Hz
- Thermal trip adjustment range: 9...14
- Rated current (In): UN 14
- Magnetic snap: 13 x In.
- Total power dissipation: 2.73W
- Trip class: 10A
- IEC usage category: UN
- Number of poles: 3
- Magnetic protection: yes
- Thermal protection: yes
€44.73
Items Available: 32
Other technical features:
- Phase failure detection: yes
- Mechanical life: cycles 100000
- Electrical life: cycles 100000
- Maximum number of wires that can be connected simultaneously: 2
- PH2 screwdriver
- Protection of power terminals according to IEC/EN 60529: IP20
- Wire stripping length: main circuit mm 1
- Operating temperature: min -20/+60°C
- Storage temperature: -50/+80°C
- Compensation temperature: -20/+50°C
- Maximum altitude: m 3000
- Normal vertical plane operating position, permissible any

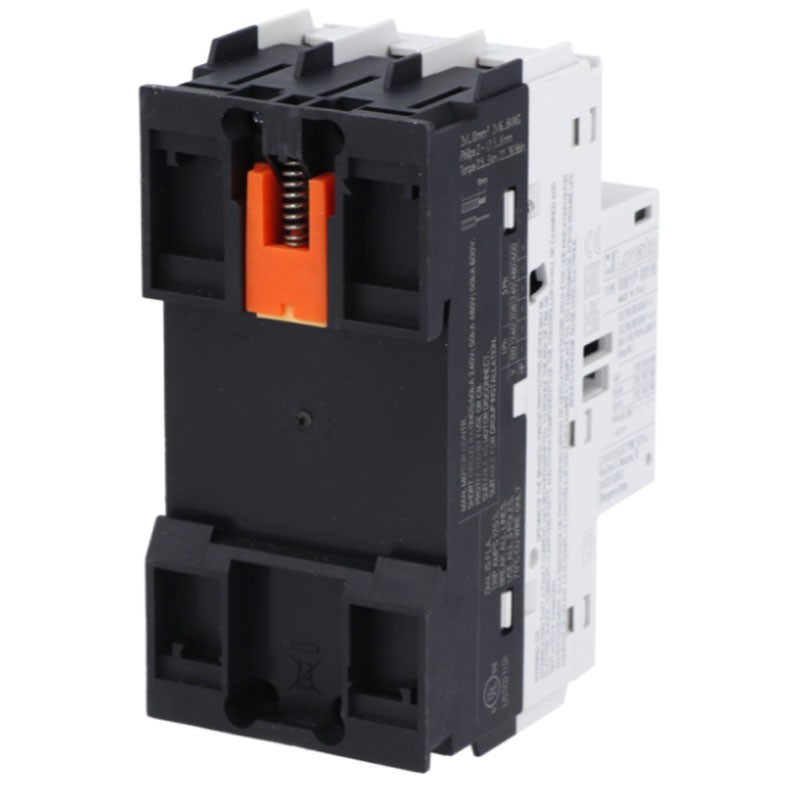

- Fixing: screw/35mm DIN rail
- Weight: 350 grams
There are no reviews
Data sheet
- Type: Motor protection
- Voltage: 400V
- Poles: 3P
