Lovato motor saver breaking capacity A 400V 100kA 17 to 23A SM1P2300
LOV SM1P2300
8013975216224

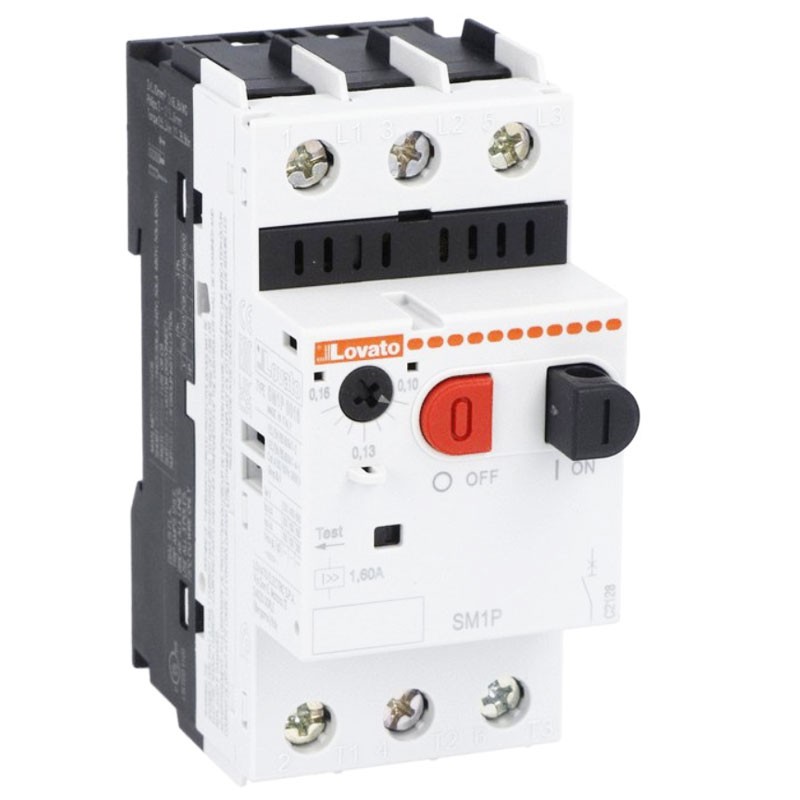

Lovato motor protection switch, with the following characteristics:
- Rated insulation voltage: 690V
- Rated impulse withstand voltage (Uimp): Kv 6
- Rated frequency: 50/60 Hz
- Thermal trip adjustment range: 17...23
- Rated current In: UN 23
- Magnetic trip: 13 x inches
- Total power dissipation: 3.41W
- Trip class: 10A
- 3 poles
€54.08
Items Available: 14
: 2
Other features:
- Mechanical life cycles: 100,000
- Electrical life cycles: 100,000
- Max number of conductors that can be installed simultaneously: 2
- Screwdriver: PH2
- Power terminal protection according to IEC/EN 60529: IP20
- Wire stripping length: main circuit mm 1
- Magnetic protection: yes
- Thermal protection: yes
- Phase failure detection: yes
- IEC usage category: UN
- Operating temperature: min °C -20 - max °C +60
- Storage temperature: min °C-50 - max °C +80
- Compensation temperature: min °C-20 - max °C +50
- Maximum altitude: 3,000
- Mounting position: Normal On vertical plane - permissible Any

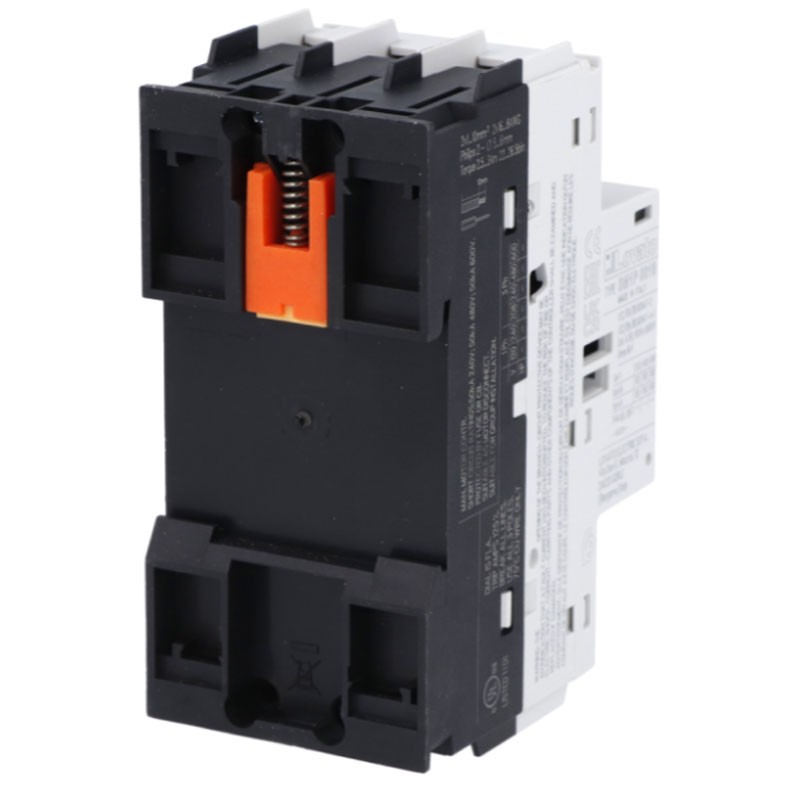

- Mounting: screw / omega profile 35mm
- Weight: 350 grams
There are no reviews
Data sheet
- Type: Motor protection
- Voltage: 400V
- Poles: 3P
