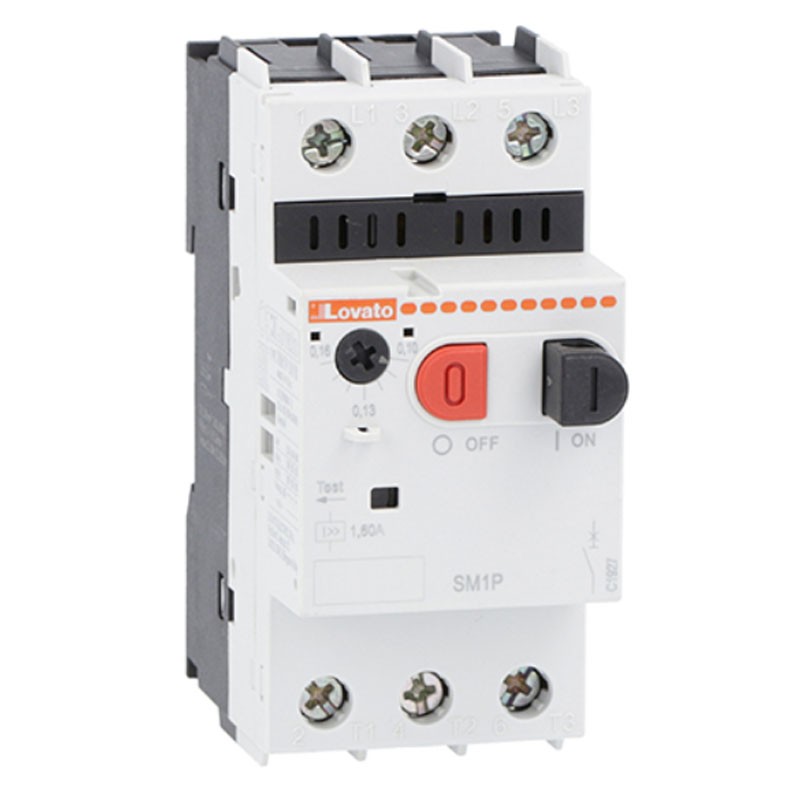

Lovato motor protector breaking capacity A 400V 100kA 1 to 1.6A SM1P0160
LOV SM1P0160
8013975216156
Lovato motor protective switch, with the following characteristics:
- IEC/EN rated insulation voltage Ui: 690V
- Rated impulse withstand voltage Uimp kV: 6
- Rated frequency: 50/60 Hz
- Thermal trip adjustment range: 1...1.6
- Rated current (In) UN: 1.6
- Magnetic snap: 13 x In.
- Total power dissipation: 2.30W
- 3 poles
€40.80
Items Available: 66
: 11
Other technical features:
- Mechanical life cycles: 100000
- Electrical life cycles: 100000
- Maximum number of wires that can be connected simultaneously: 2
- Operating temperature: -20/+60°C
- Storage temperature: -50/+80°C
- Compensation temperature: -20/+50°C
- Maximum altitude: m 3000
- Operating position: normal- vertical plane permissible- any

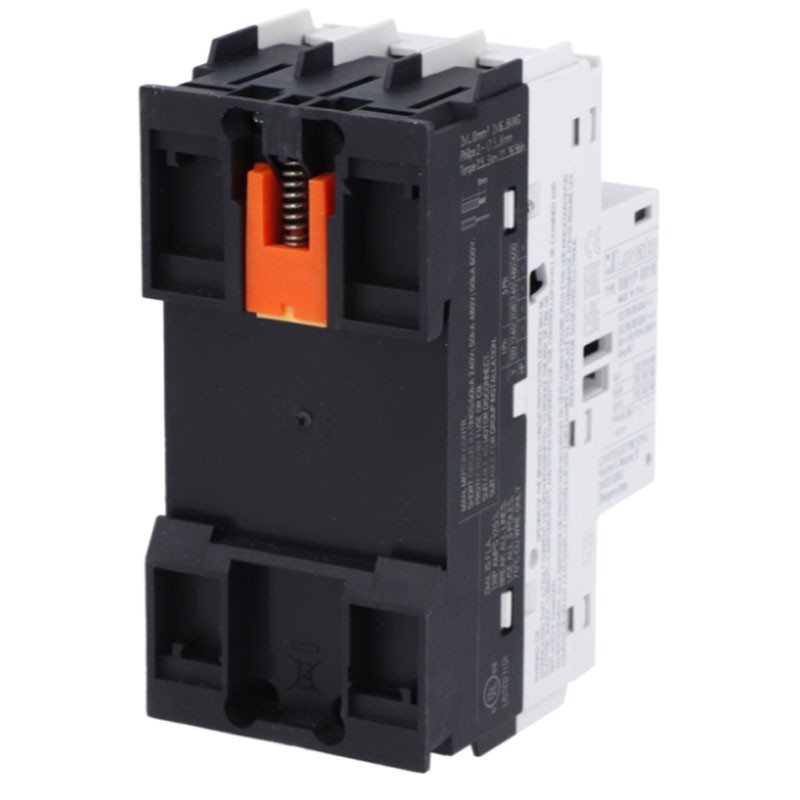

- Fixing: screw/35mm DIN rail
- Weight: 280 grams
- Trip class: 10A
- IEC usage category: UN
- Screwdriver: PH2
- Power terminal protection according to IEC/EN 60529: IP20
- Wire stripping length
- Main circuit: mm 1
There are no reviews
Data sheet
- Type: Motor protection
- Voltage: 400V
- Poles: 3P
