Lovato motor saver breaking capacity A 400V 100kA 0.63 to 1A SM1P0100
LOV SM1P0100
8013975216149

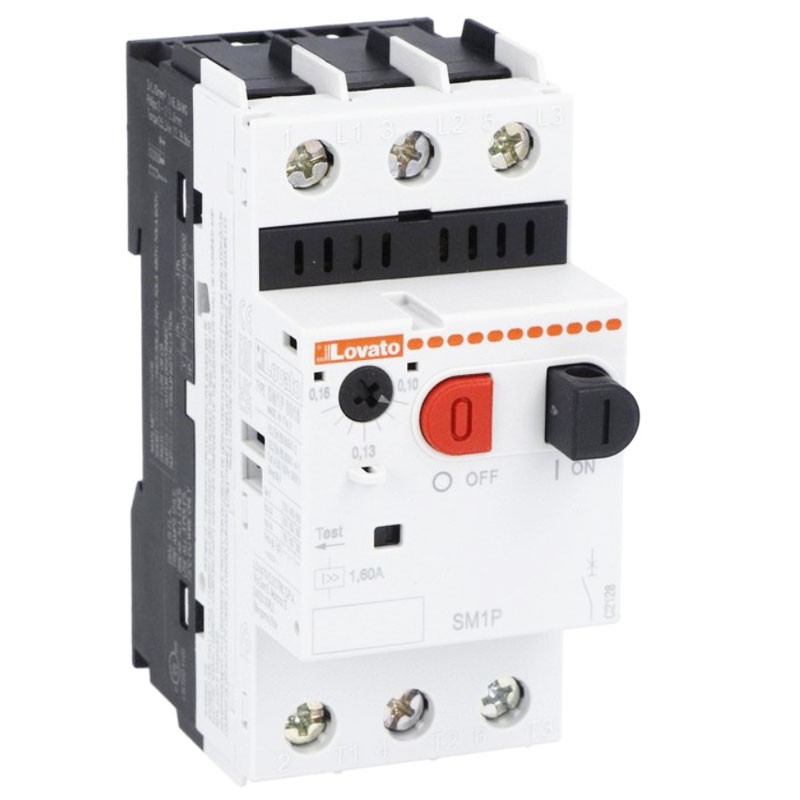

Lovato SM1P series motor saver, with the following characteristics:
- Rated impulse withstand voltage Kv 6
- Insulation voltage 690 Vac
- Interrupting capacity of operating short-circuit current in AC 400 Vac
- IEC breaking capacity Icu 100kA at 400V ... 0,63...1A
- Rated current (In) 1A
- 3 poles
- Rated frequency 50/60 Hz
€40.80
Items Available: 12
: 1
The motor saver is installed on the cable supplying the motor and, when the motor stalls due to a mechanical effect or (in three-phase systems) because a phase fails, it detects excessive absorption and automatically shuts off the electrical power, safeguarding the integrity of the motor.
Features:
- Lovato series
- Mechanical life cycles 100000
- Electrical life cycles 100000
- Terminal torque: Nm (min 2.5 - max 3), Ibin (min 22 - max 26.5)
- Degree of protection IP20
- Stripping length of main circuit cable mm 1
- Operating temperature (min °C -20 - max °C +60)
- Storage temperature (min °C -50 - max °C +80)
- Compensation temperature (min °C -20 - max °C +50)
- Operating position: normal vertical plane - permissible any
- Screwdriver: PH2
- Maximum number of wires that can be connected simultaneously: 2
- Utilization category: A
- Magnetic protection: yes
- Thermal protection: yes
- Phase failure detection: yes
- Maximum altitude 3000 m
- Fastening Screw/guide DIN 35mm
- Weight 280 grams
There are no reviews
Data sheet
- Type: Motor protection
- Voltage: 400V
- Poles: 3P
