Lovato 45-63A 50KA SM2 SM3 SM2R6300 series motor saver


LOV SM2R6300 8013975219843

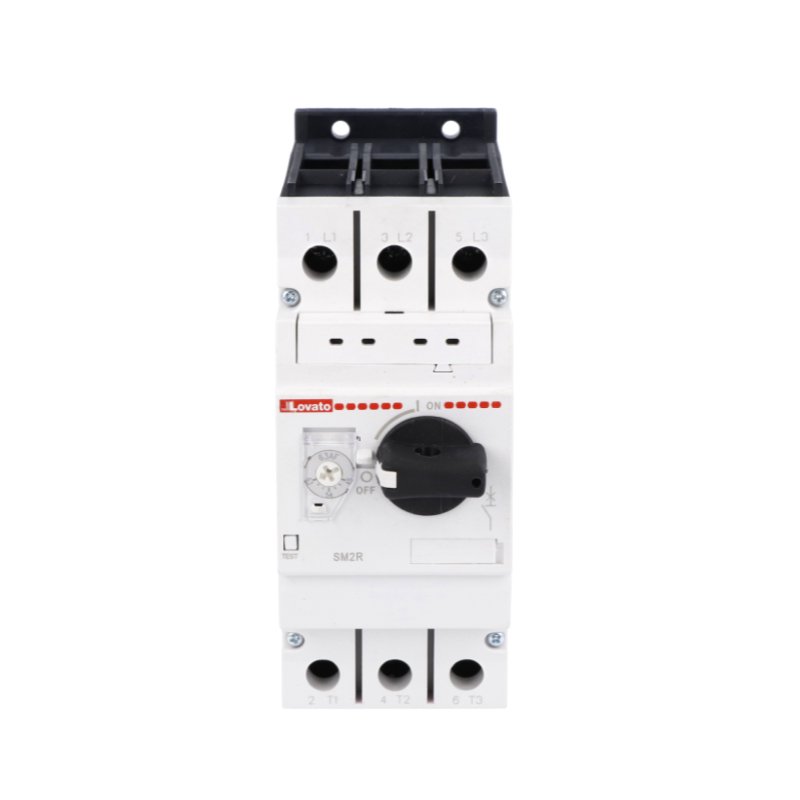

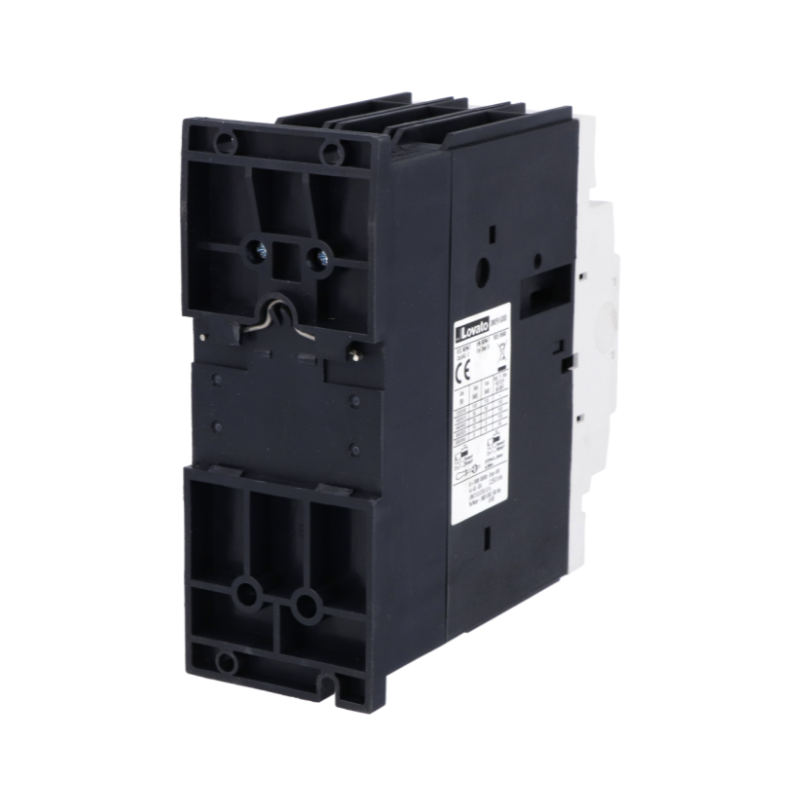

Lovato SM2R motor protection circuit breaker, with the following characteristics:

  • IEC/EN rated insulation voltage Ui: 1000V
  • Rated impulse withstand voltage Uimp: kV 6
  • Rated frequency Hz: 50/60
  • Thermal trip adjustment range: 45...63
  • Rated current (In) UN 63
  • IEC breaking capacity Icu 50kA at 400V
  • Number of poles: 3
  • Magnetic protection: yes
  • Thermal protection: yes
  • Phase failure detection: yes
  • Magnetic trip: 13 x inches
  • Trip class: 10A
Request info about this product

Lovato 45-63A 50KA SM2 SM3 SM2R6300 series motor saver

€173.94
€173.94

Lovato 45-63A 50KA SM2 SM3 SM2R6300 series motor saver

€173.94
Tax included
klarna Pay in installments with Klarna
qty

Lovato 45-63A 50KA SM2 SM3 SM2R6300 series motor saver

€173.94

Buy it within and receive it from Tuesday, 16 April
Two-year warranty
Secure Payment
Easy return within 14 days

Other technical characteristics:

  • IEC-UN usage category
  • Mechanical life cycles: 50000
  • Electrical life cycles: 25000
  • Maximum number of wires that can be connected simultaneously: 2
  • Screwdriver: PZ2
  • Protection of power terminals according to IEC/EN 60529: IP20
  • Wire stripping length: main circuit mm 1
  • Operating temperature: min °C -20/max °C+70
  • Storage temperature: min °C -50 - Max °C+80
  • Compensation temperature: min °C -50 - max °C +40
  • Maximum altitude: m 3000
  • Operating position: normal vertical plane - permissible any
  • Fixing: screw-on / 35mm DIN rail
  • Weight: 1000 grams

Data sheet

Type:
Motor protection
