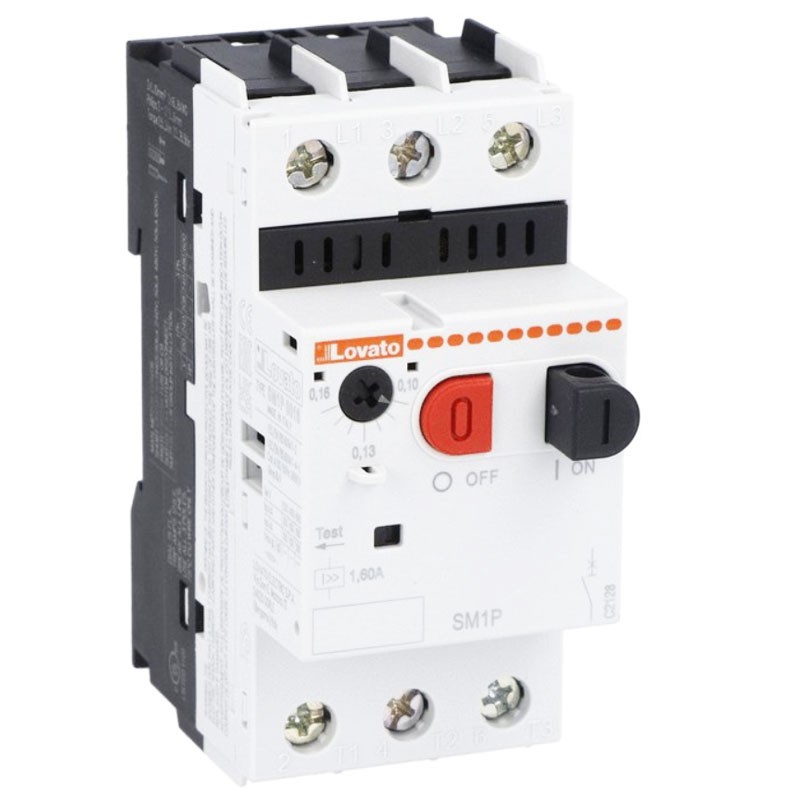

Lovato motor protection switch power at 400V 100kA 0.25 to 0.4A SM1P0040
LOV SM1P0040
8013975216125
Lovato motor protection switch, with the following characteristics:
- Rated impulse withstand voltage Kv 6
- Insulation voltage 690 Vac
- Short-circuit breaking capacity operating in AC 400 Vac
- Rated current 100 kA
- 2 modules
- 3 poles
- Rated frequency 50/60 Hz
€40.80
Items Available: 10
: 4
The motor protection switch is installed on the cable that feeds the motor and, when the motor stops due to a mechanical effect or (in three-phase systems) because a phase is missing, it detects an excessive absorption and automatically cuts off the electrical energy, thus safeguarding the integrity of the motor.
Features:
- Lovato series
- Rated impulse withstand voltage Kv 6
- Insulation voltage 690 Vac
- Short-circuit breaking capacity operating in AC 400 Vac
- Rated current 100 kA
- 2 modules
- 3 poles
- Rated frequency 50/60 Hz
- Mechanical life cycles 100000
- Electrical life cycles 100000
- Tightening torque for terminals (min Nm 2.5 - max Nm 3)
- Degree of protection IP20
- Main circuit cable stripping length mm 1
- Operating temperature (min °C -20 - max °C 60)
- Storage temperature (min °C -50 - max °C 80)
- Compensation temperature (min °C -20 - max °C 50)
- Maximum altitude 3000 m
- Fixing Screw/guide DIN 35mm
- Weight 350 gr
There are no reviews
Data sheet
- Type: Motor protection
- Voltage: 400V
- Poles: 3P
