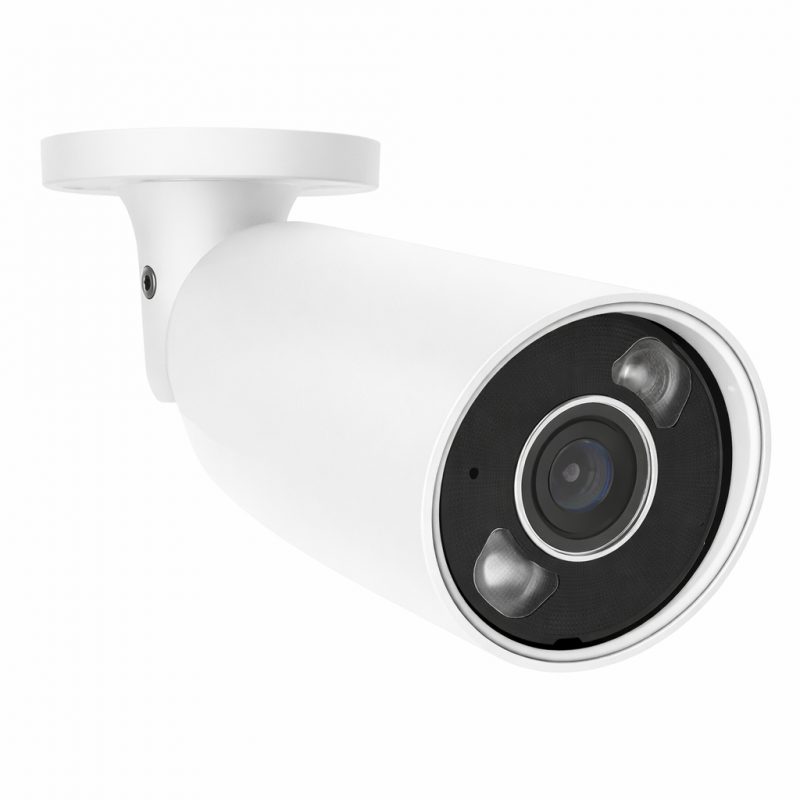

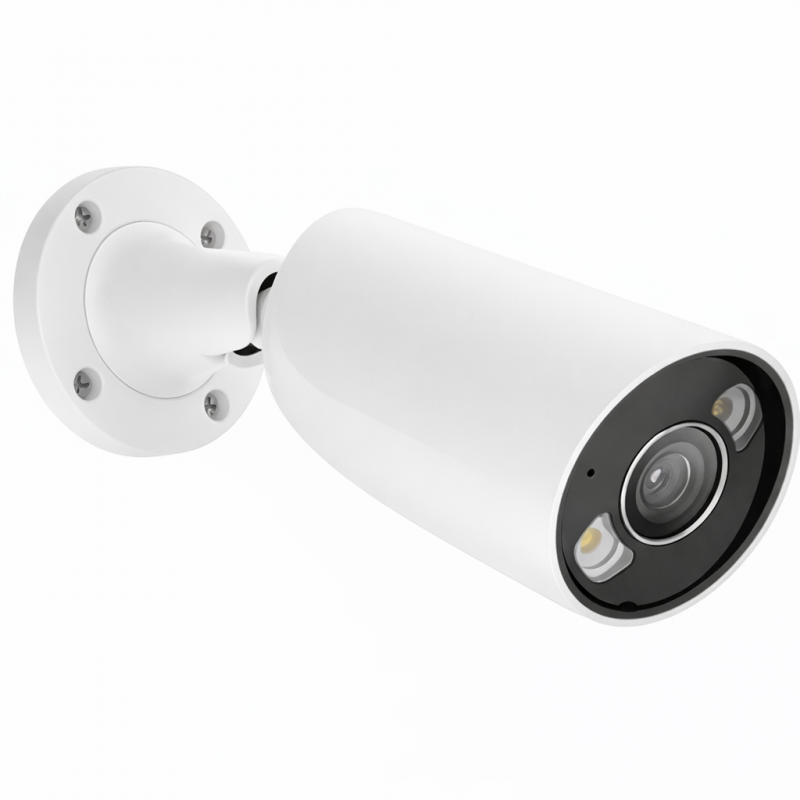

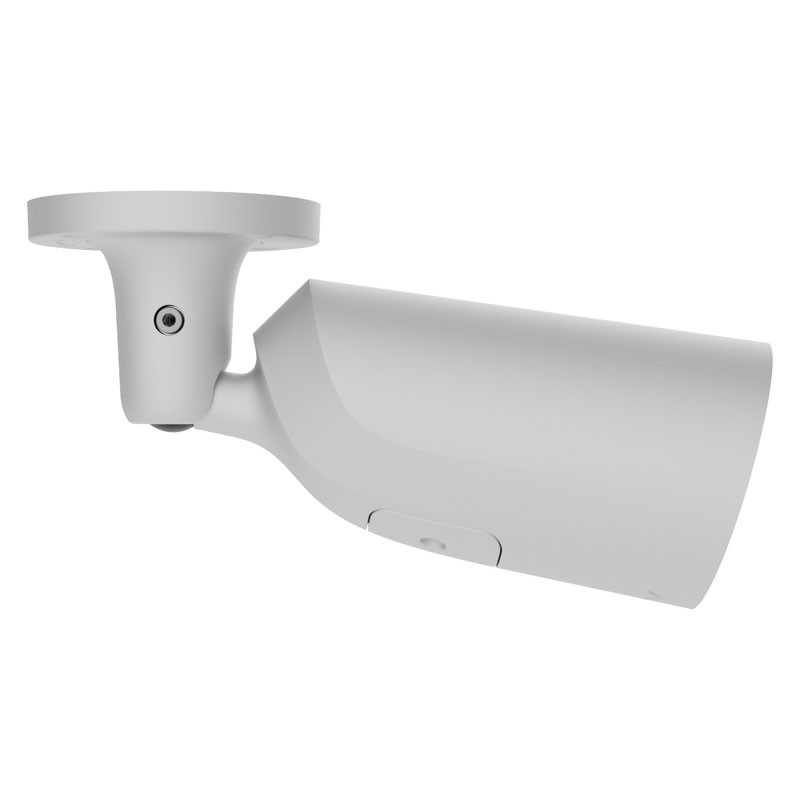

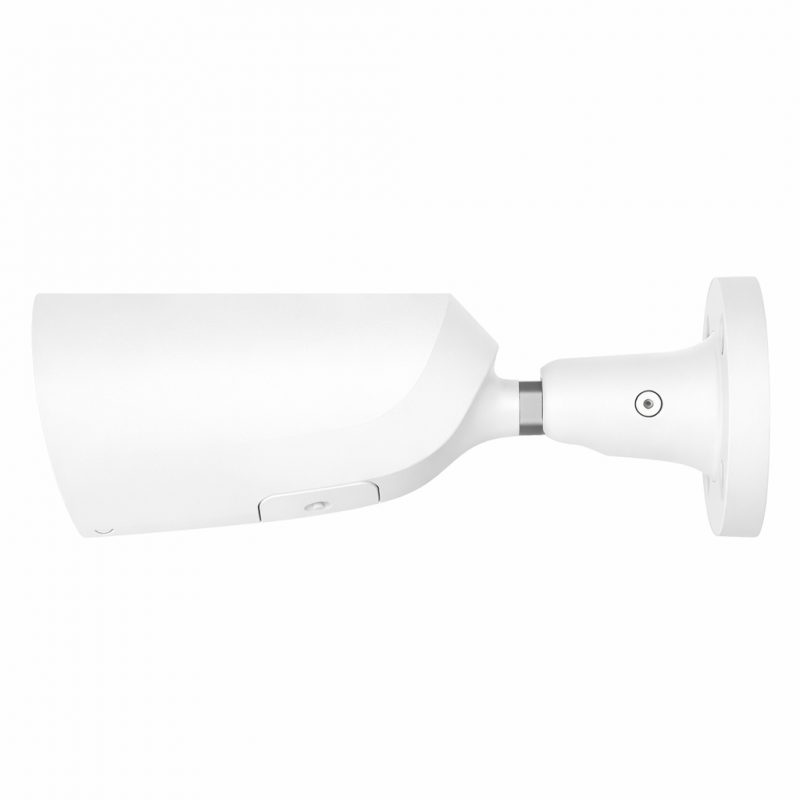

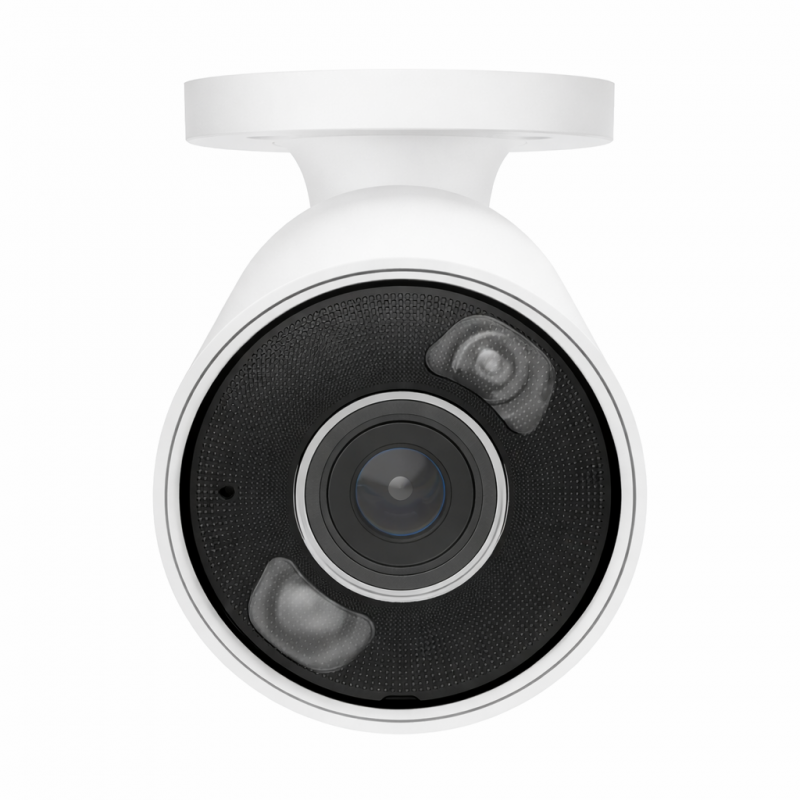

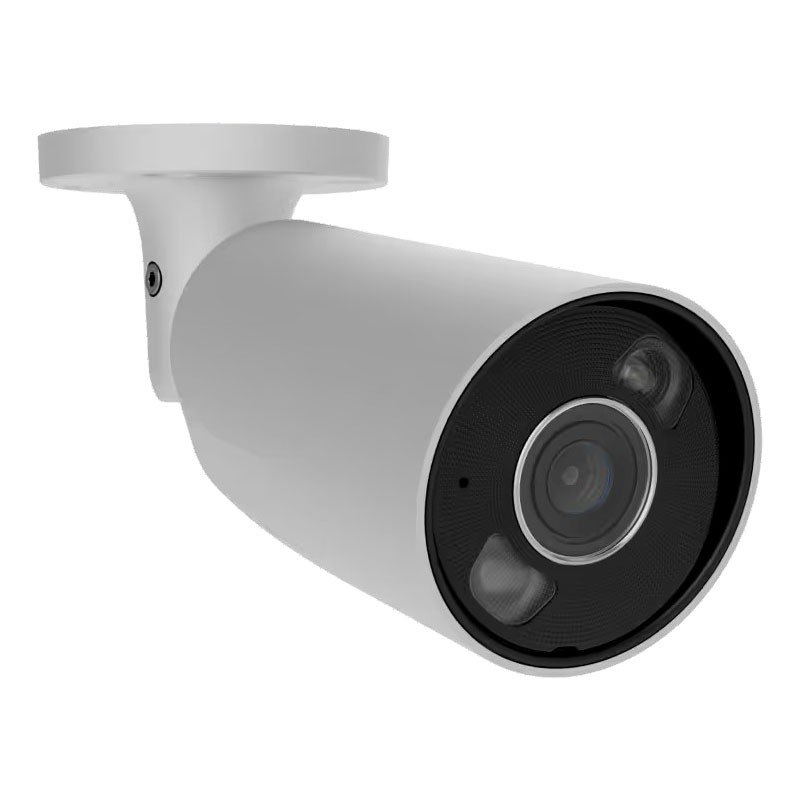

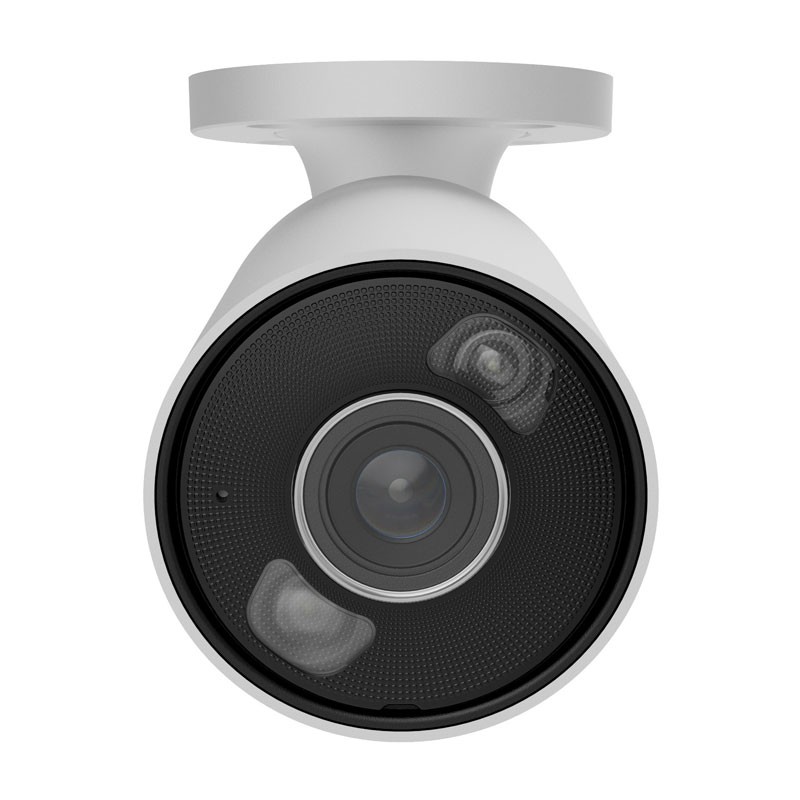

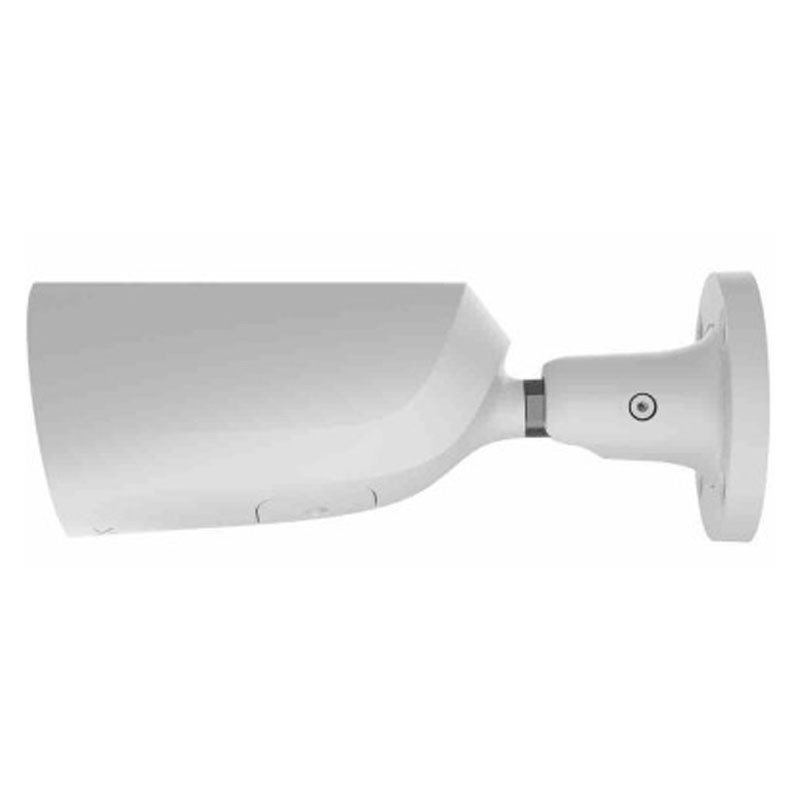

Ajax BulletCam HL IP Camera 5MP lens 2.8mm IP65 white
08T 126253
4823114072901
Ajax BulletCam HL 5MP camera with 2.8 mm optics, integrated AI, hybrid IR/white light illumination up to 50 m, True WDR, and IP65 rating. Ideal for indoor and outdoor surveillance.
-
Resolution 5 MP (2880×1620)
-
CMOS Sensor 1/2.8"
-
Fixed optics 2.8 mm
-
Field of view: 110° H / 58° V / 131° D
-
IR + white light illumination up to 50 m
-
Built-in microphone
-
AI detection: people, animals, vehicles
-
Motion detection through frame analysis
-
Technology True WDR
-
Power supply PoE or 12 V
-
Protection rating IP65
-
Wired camera for indoor/outdoor use
Additionally, Ajax cameras can also operate without an NVR, as long as they are connected to the Internet and the intrusion control panel.
€212.13
Out of stock
Incoming
Frequently bought together
Ajax BulletCam HL Camera with AI and Hybrid Lighting
Ajax BulletCam HL with 2.8 mm optics is designed to ensure advanced surveillance thanks to the combination of high resolution, integrated artificial intelligence, and hybrid lighting. The 5-megapixel sensor offers sharp images, with faithful detail reproduction and a very wide field of view thanks to the wide-angle optics.
The camera uses combined IR + white light technology, ensuring optimal visibility even in total darkness. The white light can automatically activate based on motion detection or the type of object recognized, allowing for color recording even at night and acting as a deterrent for intruders.
Smart Detection Based on Artificial Intelligence
BulletCam HL automatically distinguishes:
- people
- animals
- vehicles
Processing occurs directly in the camera, without the use of dedicated servers or paid cloud services. This allows for precise notifications and optimized recordings, reducing false alarms and unnecessary memory usage.
Recording can be configured to activate via:
- motion,
- AI detection,
- continuous mode,
- specific zones defined pixel by pixel.
This granular control allows capturing only what is truly important.
True WDR for Balanced Images in Complex Environments
True WDR combines hardware and software components to manage scenes with very pronounced lights and shadows. Each frame is processed in real-time, improving visibility and image readability even in difficult situations, such as:
- entrances exposed to the sun,
- car headlights,
- areas with uneven lighting.
Full Integration into the Ajax Ecosystem
BulletCam HL integrates with intrusion, fire, and automation systems of the Ajax ecosystem, offering:
- complete control via mobile and desktop apps,
- immediate access to recent videos,
- customizable Videowall to monitor multiple cameras simultaneously,
- simple and intuitive remote management,
- instant push notifications in case of motion or object detection.
It is also possible to configure privacy zones, excluding sensitive parts of the scene from recording, ideal for controlled access environments or restricted areas.
| CAMERA | |
|---|---|
| Image Sensor | 5 MP CMOS, type 1/2.8" |
| Focal Distance | 2.8 mm |
| Maximum Aperture | f/1.6 |
| Iris | Fixed |
| Focal | Fixed |
| Field of View | Horizontal 110° / Vertical 58° / Diagonal 131° |
| Maximum Illumination Distance | White LED: up to 50 m IR LED: up to 50 m Smart anti-overexposure lighting |
| VIDEO | |
| Resolution | 5 MP (2880×1620) 4 MP (2560×1440) 3 MP (2304×1296) 2 MP (1920×1080) 0.6 MP (1024×576) |
| Frame Rate | up to 25 fps |
| Image Rotation | 0°, 180° |
| Video Codec | H.265, H.264 |
| Dynamic Range | True WDR |
| Storage | microSD up to 256 GB (Class V30 or higher) |
| NVR Compatibility | Ajax NVR |
| AUDIO | |
| Microphone | Integrated |
| Audio Codec | G711-ULAW, G711-ALAW, G726, G722 |
| INTELLIGENT VIDEO ANALYSIS | |
| Motion Detection | Software frame analysis |
| AI Recognition | People, Animals, Vehicles |
| NETWORK | |
| Port | 1 × RJ-45 Ethernet (10/100 Mbps) |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS |
| Interoperability | ONVIF Profile S/T* |
| MAIN FEATURES | |
| Video Protocol | JetSparrow (encrypted, peer-to-peer) |
| Visual Alarm Verification | Supported via Ajax scenarios |
| Privacy | Advanced rights and access management |
| PROTECTION AGAINST TAMPERING | |
| mTLS | Encrypted connection |
| Authentication | via Ajax Cloud |
| Secure Boot | Protection against unauthorized firmware |
| OTA signature verification | Secure updates |
| POWER SUPPLY | |
| PoE Standard | 802.3at/af |
| PoE Consumption | Max 7.3 W / Average 6.0 W |
| External power supply | 12 V⎓ ±20%, 1 A |
| Consumption at 12 V | Max 6.3 W / Average 5.1 W |
| ENCLOSURE | |
| Dimensions | 198 × 76 × 76 mm |
| Weight | 550 g |
| Operating temperature | −30 °C ÷ +60 °C |
| Permissible humidity | up to 90% |
| Protection | IP65 |
| PACKAGE CONTENTS | |

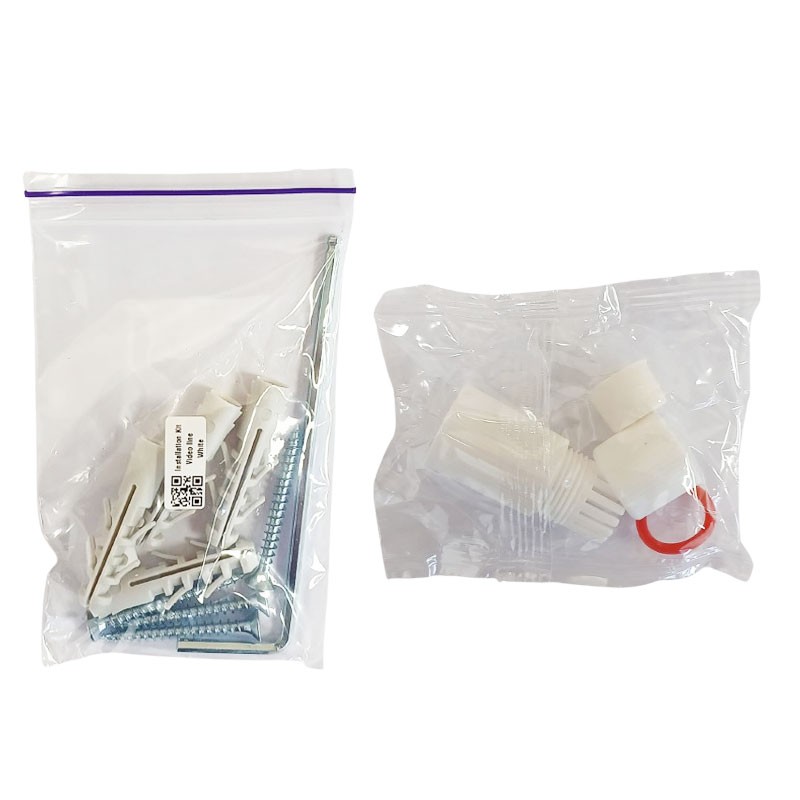

| Included | BulletCam HL (5 MP / 2.8 mm) Mounting template Installation kit Quick guide |
There are no reviews
Data sheet
- Colour: White
- Type: Bullet cameras
- Degree of protection: IP65
- System: IP
- Optical: 2.8 mm
- Resolution: 5MP
