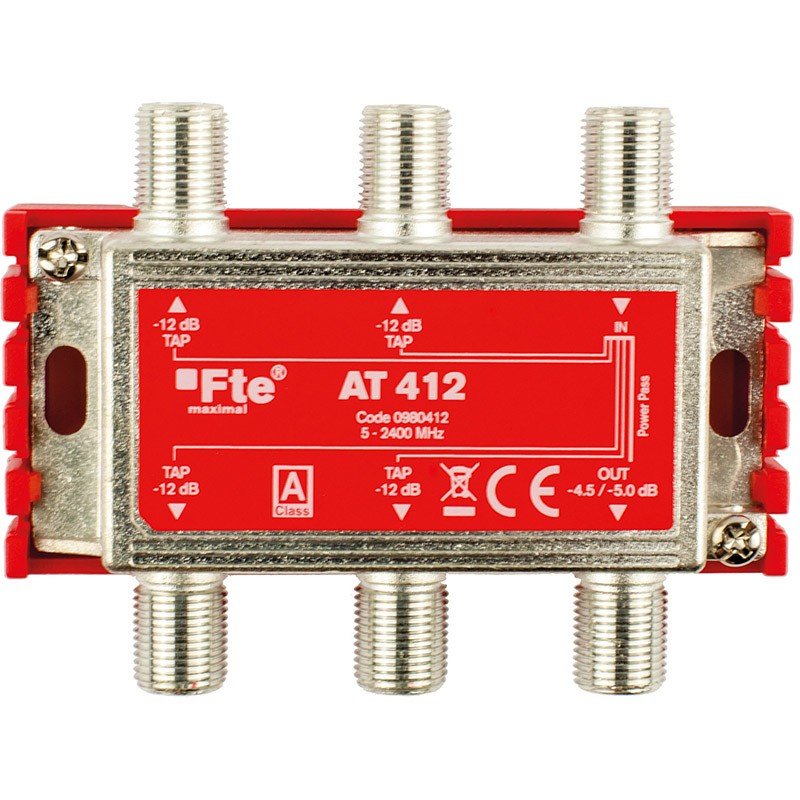

TV/SAT Splitter FTE Class A 1 Output 4 Taps 5-2400 MHz 12 dB AT412

Fte
Fte
FTE AT412 8436018440583

Professional FTE inductive splitter, wide TV/SAT band, current passage OUT-IN, ideal for vertical multiservice distribution, with the following characteristics:

  • Number of taps: 4

  • Input/Pass-through output: 1 IN - 1 OUT

  • Operating frequencies: 5 - 2400 MHz

  • Isolation between tap outputs: > 28 dB

  • Return loss: > 6 dB

  • Type of connectors: F

  • Dimensions: 77x60x27 mm (WxHxD)

Do you have questions about this product or did you not find what you were looking for? Ask us!
TV/SAT Splitter FTE Class A 1 Output 4 Taps 5-2400 MHz 12 dB AT412
€9.15
€9.15

€9.15
Tax included
Calculate shipping cost
Items Available: 11
Further availability of the manufacturer
€9.15

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Ideal TV/SAT Splitter for centralized riser networks

This FTE TV/SAT splitter allows the distribution of the signal from one floor to another in multiservice systems, typically installed in condominium riser columns. The signal passes through the input (IN) to the pass-through output (OUT) with minimal attenuation (only 4 dB), while the two tap outputs (TAP) provide the signal to one or more apartments.

High shielding, maximum protection

Made with a high-efficiency shielded structure, it guarantees:

  • Electromagnetic shielding > 100 dB

  • Minimal interference from external signals (Class A)

  • Isolation > 28 dB between taps

Typical applications

  • Multiservice systems (terrestrial TV + SAT)

  • Distribution over multiple floors (riser column)

  • Compatible with centralized condominium systems

  • Ideal for pairing with splitters or tap outlets

  • Compatibility with SCR/dCSS signals

Technical Characteristics TV/SAT Splitter FTE

Number of taps 4
Input / Pass-through output 1 IN / 1 OUT
Operating frequencies 5 ÷ 2400 MHz
TV tap attenuation 13 dB (47–862 MHz)
SAT tap attenuation 13.5 dB (950–2150 MHz)
TV pass-through attenuation 2.5 dB
SAT pass-through attenuation 4 dB
Isolation between tap outputs > 28 dB
Return loss > 6 dB
Current passage Yes (OUT → IN)
Type of connectors F
Electromagnetic shielding > 100 dB – Class A
Operating temperature -10 ÷ +55 °C
Dimensions (W × H × D) 77 × 60 × 27 mm
Regulatory compliance EN 50083-2
