Vertical shunt 2-way Fracarro PA-DE 22DB 5-2400MHz 280717
FRA 280717
8016978007660

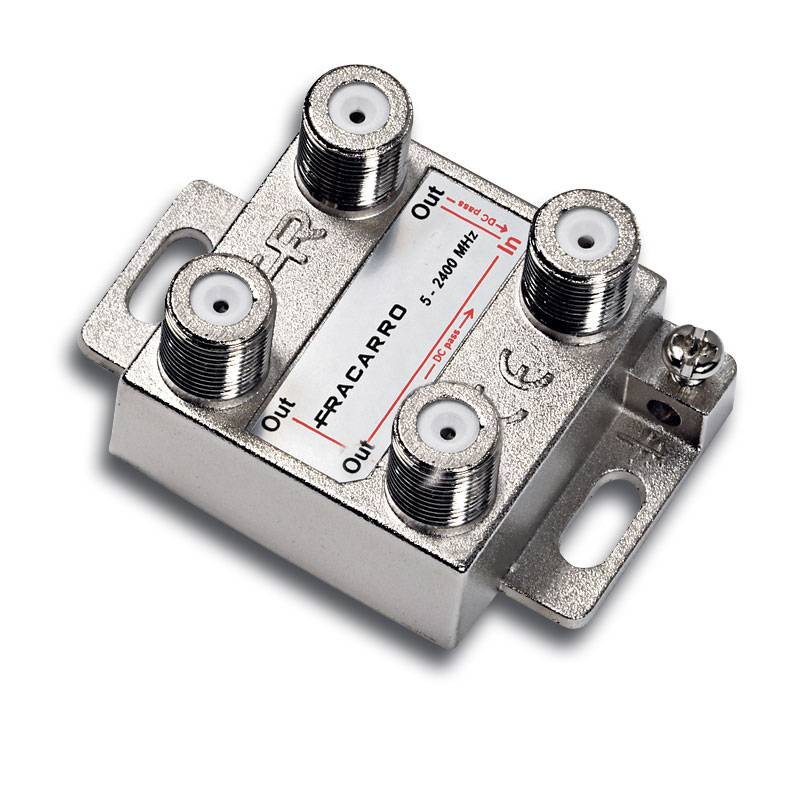

Fracarro PA-DE 2-way 22 dB shunt (code 280717) with F connectors 52400 MHz for TV and SAT systems. Nickel-plated die-cast body, high performance, DC pass-through and prepared for grounding.
-
Vertical 2-way shunt
-
22 dB attenuation per way
-
Band 52400 MHz (TV + SAT)
-
Professional female F connectors
-
Die-cast and nickel-plated body
-
DC pass-through between input and through output
-
Prepared for grounding
-
High isolation and low insertion losses
-
Wall mounting and installation in junction box
€7.06
Items Available: 14
: 9
Fracarro PA-DE 2-way 22 dB: efficiency and robustness for signal distribution
The Fracarro PA-DE 2-way 22 dB shunt is designed to ensure a stable and precise signal derivation in high-performance television and satellite systems. Thanks to the bandwidth from 5 to 2400 MHz, it handles DTT and SAT signals without problems, ensuring clear and constant transmission at every point of the network.
The attenuation of 22 dB on each way allows balancing the signal distribution in multiswitch or communal networks, maintaining high quality even over long distances.
Nickel-plated die-cast construction: resistance and shielding
The body of the shunt is die-cast and nickel-plated, a choice that ensures high shielding against electromagnetic interference and significant mechanical and corrosion resistance. The compact and elegant design allows installation in any junction box, optimizing space and simplifying system operations.
Professional performance and guaranteed safety
Thanks to the high return loss and low insertion loss, the PA-DE 2-way 22 dB shunt offers consistent and reliable performance over time. It is also prepared for grounding, providing greater protection for connected equipment and system safety.
The direct current (DC) pass-through between the input and the through output allows powering amplifiers or active devices upstream, avoiding the need for additional power supplies.
Easy installation and versatile configuration
The vertical structure and F connectors ensure simple and secure wiring, while the wall mounting preparation offers maximum installation flexibility. The Fracarro shunt is the ideal solution for centralized or communal systems, ensuring signal stability and ease of maintenance.
Technical characteristics
| Parameter | Value |
|---|---|
| Pass-through loss | |
| RC 5–40 MHz | 1.2 dB |
| TV 47–862 MHz | 1.1 dB |
| SAT 950–1750 MHz | 1.5 dB |
| SAT 1750–2150 MHz | 1.8 dB |
| SAT 2150–2400 MHz | 2.2 dB |
| Derivation loss | |
| RC 5–40 MHz | 22 dB |
| TV 47–862 MHz | 22 dB |
| SAT 950–1750 MHz | 22 dB |
| SAT 1750–2150 MHz | 22 dB |
| SAT 2150–2400 MHz | 22 dB |
| Output isolation | |
| RC 5–40 MHz | 45 dB |
| TV 47–862 MHz | 38 dB |
| SAT 950–1750 MHz | 31 dB |
| SAT 1750–2150 MHz | 27 dB |
| SAT 2150–2400 MHz | 27 dB |
| General characteristics | |
| Derived loss | 22 dB |
There are no reviews
Data sheet
- Type: Shunts
- Version: 2 outputs
