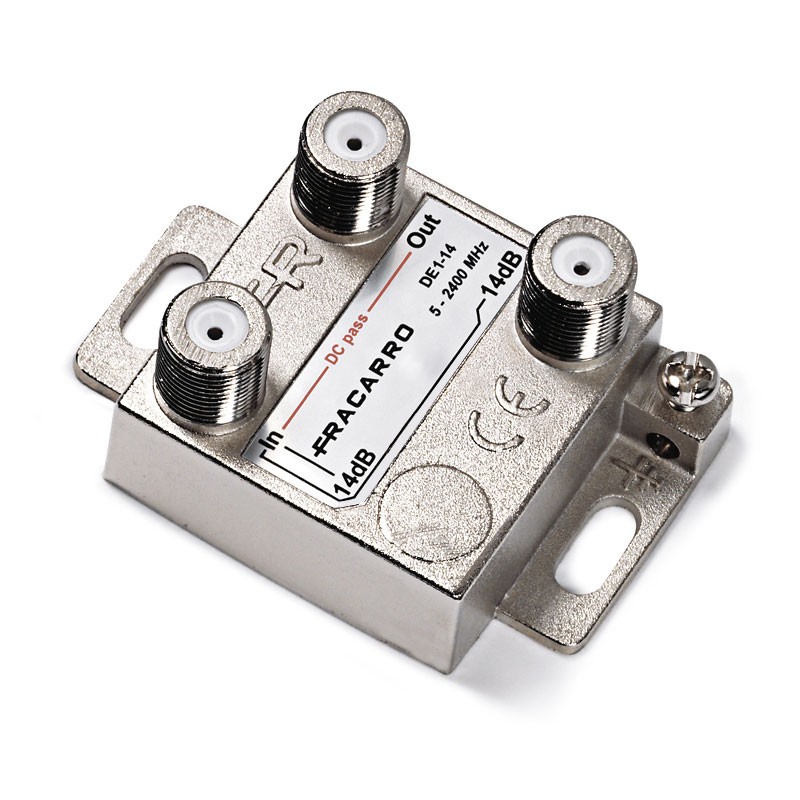

Fracarro tap-off 1 way 14dB F connector 5-2400MHz
FRA 280711
8016978007547
Tap-off Fracarro PA-DE 1 way 14 dB with F 5–2400 MHz connector, suitable for TV and satellite systems. Nickel-plated die-cast structure, high performance, and compact design for professional installations.
- 1 vertical way with 14 dB attenuation
- Operating band 5–2400 MHz (TV + SAT)
- Professional F connectors
- High shielding die-cast and nickel-plated body
- DC pass-through between input and through output
- High isolation and minimal losses
- Equipped for grounding and wall mounting
€6.14
Items Available: 121
: 9
Fracarro PA-DE 1 way 14 dB: professional performance and reliability
The Fracarro tap-off PA-DE 1 way 14 dB is designed to ensure maximum efficiency in TV and satellite signal distribution systems. Thanks to the extended bandwidth from 5 to 2400 MHz, it is ideal for DTT, SAT, and multiswitch systems, ensuring perfect signal transmission with minimal insertion losses and high return loss.
The vertical 1-way configuration and 14 dB attenuation make it suitable for centralized or condominium distribution networks, where signal tap-off with stability and precision is required.
Robust construction and quality materials
The body of the tap-off is die-cast and nickel-plated, to ensure mechanical strength, long life, and effective shielding against electromagnetic interference. The compact design allows for easy installation in any junction box or technical compartment, reducing clutter and optimizing space in professional installations.
Advanced functionality and safety
The Fracarro tap-off PA-DE 1 way 14 dB is equipped for grounding, increasing the safety of the system and the protection of connected devices.
The DC pass-through between the input and the through output allows remote powering of amplifiers or other active network components, without the need for additional cabling.
Simple and flexible installation
The vertical configuration and F connectors ensure quick and secure wiring, suitable for professional installers. The integrated wall mounting system facilitates installation in any type of system, from single homes to centralized condominium systems.
Technical characteristics
| Parameter | Value |
|---|---|
| Through loss | |
| RC 5–40 MHz | 1 dB |
| TV 47–862 MHz | 0.8 dB |
| SAT 950–1750 MHz | 1.2 dB |
| SAT 1750–2150 MHz | 1.3 dB |
| SAT 2150–2400 MHz | 1.5 dB |
| Tap-off loss | |
| RC 5–40 MHz | 14 dB |
| TV 47–862 MHz | 14 dB |
| SAT 950–1750 MHz | 14 dB |
| SAT 1750–2150 MHz | 14 dB |
| SAT 2150–2400 MHz | 14 dB |
| Output isolation | |
| RC 5–40 MHz | 32 dB |
| TV 47–862 MHz | 29 dB |
| SAT 950–1750 MHz | 28 dB |
| SAT 1750–2150 MHz | 30 dB |
| SAT 2150–2400 MHz | 25 dB |
| General characteristics | |
| Tap-off loss | 14 dB |
There are no reviews
Data sheet
- Type: Shunts
- Version: 1 output
