Vertical shunt 1 way Fracarro PA-DE 22DB 5-2400MHz 280713
FRA 280713
8016978007585

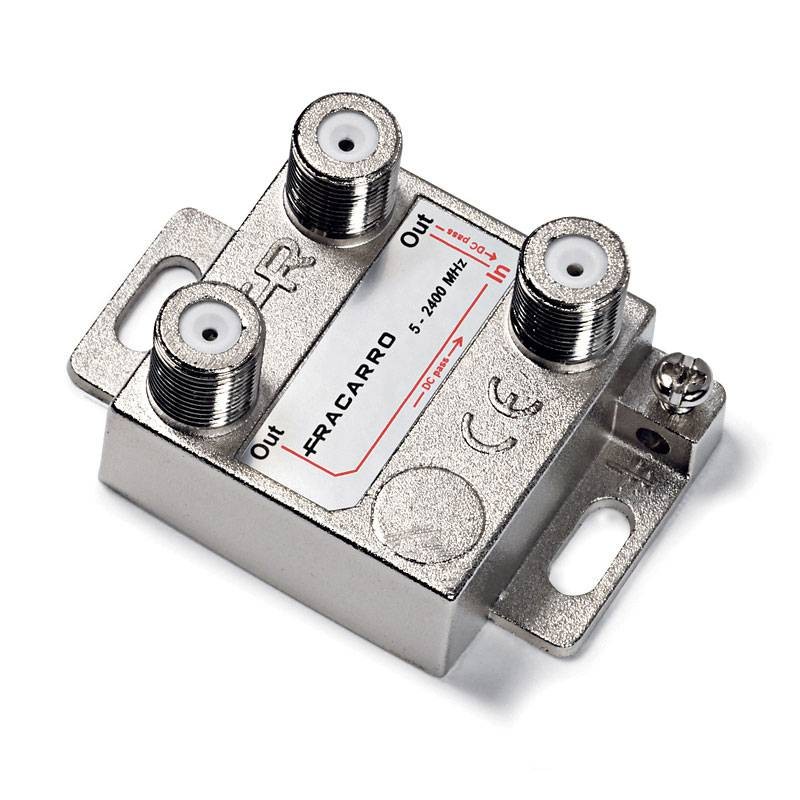

Shunt Fracarro PA-DE 1 way 22 dB (code 280713) with F connectors 52400 MHz for TV and satellite systems. Die-cast nickel-plated body, high performance, DC pass and grounding provision.
-
Vertical shunt 1 way
-
Attenuation 22 dB
-
Band 52400 MHz (TV + SAT)
-
F female connectors
-
Die-cast and nickel-plated body
-
DC pass between input and through output
-
Equipped for grounding and wall mounting
-
High isolation and low insertion loss
€6.14
Items Available: 10
: 9
Fracarro PA-DE 22 dB: reliability and precision for TV and SAT systems
The vertical shunt Fracarro PA-DE 22 dB is designed to offer maximum efficiency and signal stability in television and satellite systems. Thanks to the bandwidth from 5 to 2400 MHz, it fully supports DTT and SAT frequencies, ensuring clean and interference-free transmission.
The attenuation of 22 dB allows for precise signal splitting in multiswitch or centralized networks, maintaining an optimal distribution balance.
Robust construction and effective shielding
Made of die-cast and nickel-plated alloy, the PA-DE 22 dB shunt ensures high protection against electromagnetic interference (EMI) and durability even in challenging environments. Its compact and elegant design allows installation in any junction box, optimizing space and ensuring a professional and tidy result.
Safety, practicality, and current passage
The device is equipped for grounding, a fundamental element to increase safety and reduce the risk of electrical disturbances. Additionally, the passage of direct current (DC) between the input and the through output allows amplifiers or other active devices to be powered directly through the coaxial cable, simplifying the system and reducing the need for dedicated power supplies.
Simple installation and professional configuration
The Fracarro PA-DE 22 dB shunt is designed for vertical installations, with F connectors ensuring a quick and secure connection. The wall mounting provision facilitates installation even in tight spaces, ensuring a stable and long-lasting setup.
Technical characteristics
| Parameter | Value |
|---|---|
| Through loss | |
| RC 5–40 MHz | 0.6 dB |
| TV 47–862 MHz | 0.5 dB |
| SAT 950–1750 MHz | 0.8 dB |
| SAT 1750–2150 MHz | 1.0 dB |
| SAT 2150–2400 MHz | 1.7 dB |
| Tap loss | |
| RC 5–40 MHz | 22 dB |
| TV 47–862 MHz | 22 dB |
| SAT 950–1750 MHz | 22 dB |
| SAT 1750–2150 MHz | 22 dB |
| SAT 2150–2400 MHz | 22 dB |
| Output isolation | |
| RC 5–40 MHz | 50 dB |
| TV 47–862 MHz | 36 dB |
| SAT 950–1750 MHz | 33 dB |
| SAT 1750–2150 MHz | 31 dB |
| SAT 2150–2400 MHz | 27 dB |
| General characteristics | |
| Derived loss | 22 dB |
There are no reviews
Data sheet
- Type: Shunts
- Version: 1 output
