Fracarro 6-way 16 dB bypass 280722
FRA 280722
8016978034840

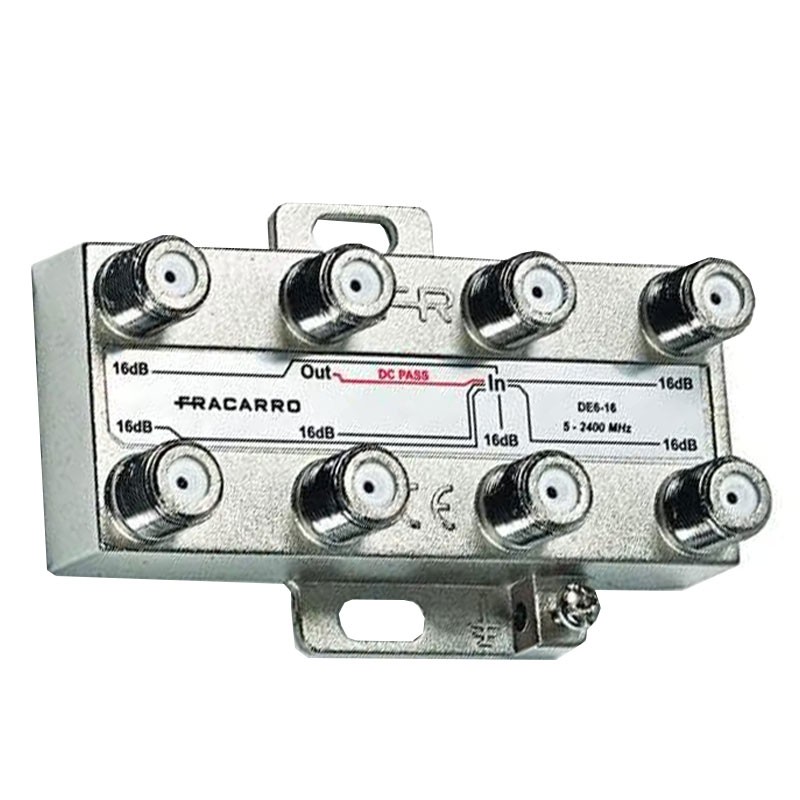

Fracarro DE6-16 Derivator, with the following characteristics:
- Insertion loss: 4.5-5.5 dB
- Tap loss: 16 dB
- Output-derivative separation: 25-22 dB
- Frequency 5-2400 MHz
- F type connectors
- With 1 input, 1 pass-through output and 6 derived outputs
€12.48
Items Available: 103
: 47
Features:
- Fracarro series
- Nickel-plated shielded die-cast body and ground connection screw
- Ensures high performance, with very low insertion losses
- High return-loss and isolation
- Allows the passage of DC between the input and the through output
- Wall mounting
- Class A shielding
prodotto selezionato per l'esigenza specifica che soddisfa adeguatamente
non lo ho ancora messo in opera quindi non posso dare un giudizio già lo conoscevo.
Data sheet
- Type: Shunts
- Version: 6 outputs
