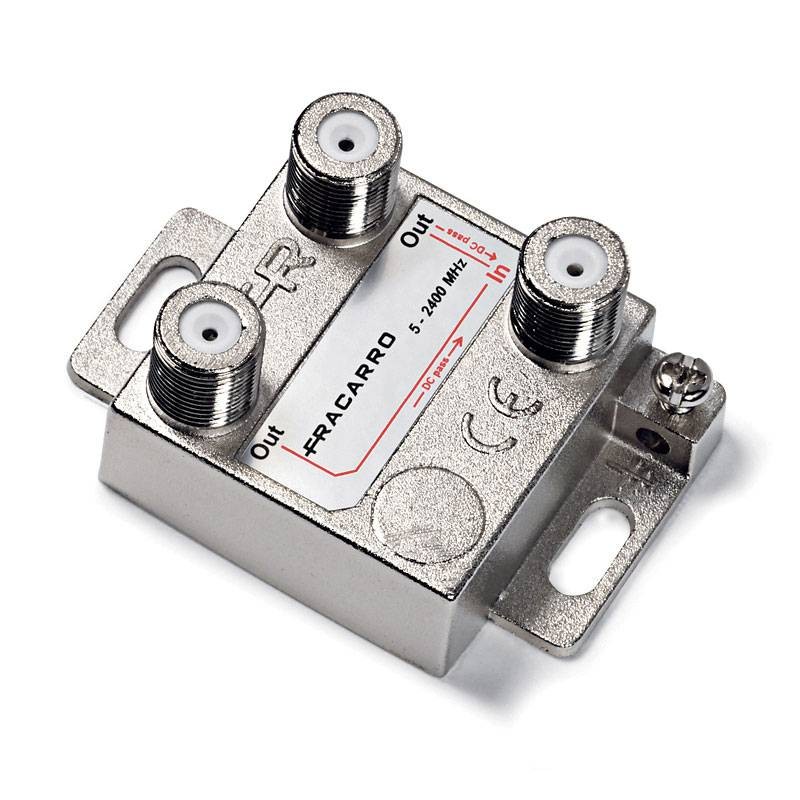

Fracarro Vertical shunt 1 way PA-DE 18DB 5-2400MHz 280712
FRA 280712
8016978007561
Shunt Fracarro PA-DE 1 way 18 dB (code 280712) with F connectors 52400 MHz. Ideal for TV and satellite systems, offers high performance, nickel-plated body, DC pass, and easy installation in junction box.
-
Vertical shunt 1 way
-
Attenuation 18 dB
-
Band 52400 MHz (TV and SAT)
-
Professional F connectors
-
Die-cast and nickel-plated body with high shielding
-
DC pass between input and through output
-
Equipped for grounding and wall mounting
€6.14
Items Available: 16
: 4
Fracarro PA-DE 18 dB: efficiency and reliability for professional systems
The vertical shunt Fracarro PA-DE 18 dB is a professional solution for signal distribution in TV and satellite systems (52400 MHz). Thanks to its 18 dB attenuation, it allows precise and stable signal splitting, ensuring excellent performance even in complex or communal networks.
Made with high-quality components, it ensures a low level of insertion loss, high return loss, and excellent isolation between outputs, keeping the signal clean and stable throughout the network.
Robust structure and effective shielding
The die-cast and nickel-plated body guarantees maximum mechanical resistance and high protection against electromagnetic interference. The compact design allows the installation of the shunt in any junction box or technical point, even in confined spaces.
These features make the PA-DE 18 dB ideal for installers looking for a reliable, durable product with consistent performance over time.
Safety and ease of use
The device is equipped for grounding, improving electrical safety and protection of connected components. Furthermore, the DC pass between the input and the through output allows powering amplifiers or active devices upstream, ensuring maximum system flexibility.
Simple and versatile installation
The vertical mounting and F connectors ensure a stable and immediate connection. The shunt is also prepared for wall mounting, making the installation neat and professional in any type of system.
Technical characteristics
| Parameter | Value |
|---|---|
| Through loss | |
| RC 5–40 MHz | 0.8 dB |
| TV 47–862 MHz | 0.7 dB |
| SAT 950–1750 MHz | 0.9 dB |
| SAT 1750–2150 MHz | 1.0 dB |
| SAT 2150–2400 MHz | 1.3 dB |
| Tap loss | |
| RC 5–40 MHz | 18.5 dB |
| TV 47–862 MHz | 18.5 dB |
| SAT 950–1750 MHz | 18.5 dB |
| SAT 1750–2150 MHz | 18.5 dB |
| SAT 2150–2400 MHz | 18.5 dB |
| Output isolation | |
| RC 5–40 MHz | 45 dB |
| TV 47–862 MHz | 34 dB |
| SAT 950–1750 MHz | 31 dB |
| SAT 1750–2150 MHz | 27 dB |
| SAT 2150–2400 MHz | 22 dB |
| General characteristics | |
| Tap loss | 18 dB |
There are no reviews
Data sheet
- Type: Shunts
- Version: 1 output
