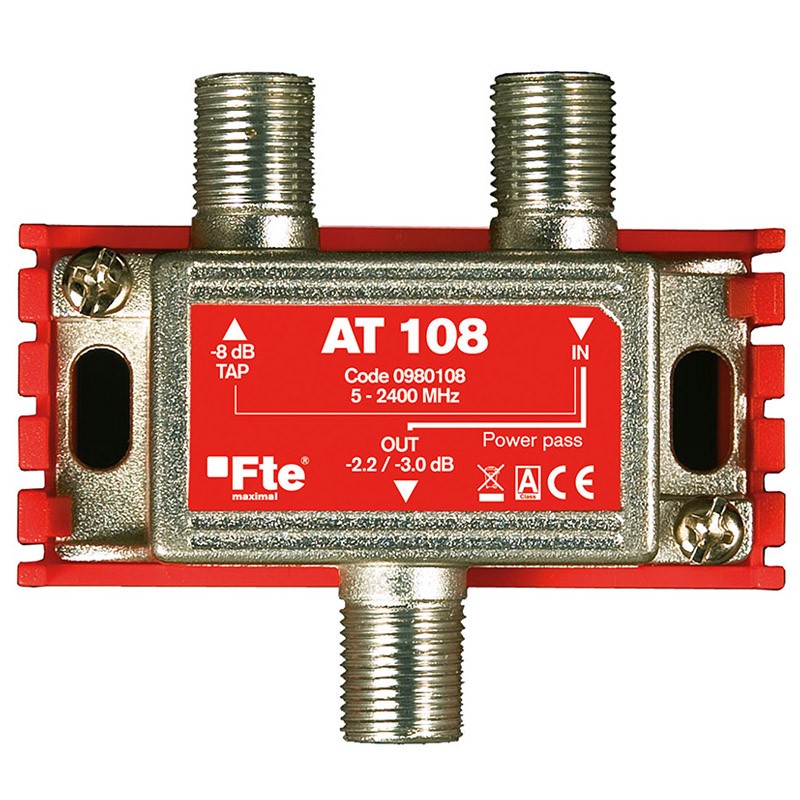

AT108 1-Way Class A Terrestrial and Satellite FTE Derivator
FTE AT108
8436018440460
Class A terrestrial and satellite inductive armored FTE shunt from 5 to 2,400 MHz, with one output with typical pass attenuation of 2 dB and one shunt output with 8 dB attenuation.
€5.47
Items Available: 9
: 3
Strengths:
- Working band 5 ÷ 2400 MHz
- 1 input, 1 output and 1 derivative
- Attenuation value 8 dB
- High shielding efficiency guaranteed
- DC passage between output and input
- Compact dimensions.
Applications:
- Allows the signal to be transferred from one floor to another where they are installed, from the IN input to the OUT output with a low loss of passage and therefore not altering the characteristics
- The derived outputs can be connected to the user socket or towards the apartment to the divider that will sort the signal on more user sockets.
Technical data:
- No. of branches 1
- Working frequencies - MHz 5 ÷ 2400
- TV branch loss 47 ÷ 862 - dB 9
- SAT branch loss 950 ÷ 2150 MHz - dB 9,5
- Loss of passage TV 47 to 862 - dB 2
- SAT loss of passage 950 ÷ 2150 - dB 3
- Type of connection F
- Tap/tap isolation - dB > 25
- Current passage OUT-IN
- Electromagnetic shielding - dB > 100 (class A)
- Return loss - dB > 13
- Operating temperature - ° C -10 ÷ 55
- Dimensions ( W x H x D) - mm 57 x 55 x 27
- Weight - g 62
- Complies with EN 50083-2 standards.
Data sheet
- Type: Shunts
