Fracarro 4-way 22 dB bypass 280721
FRA 280721
8016978007745

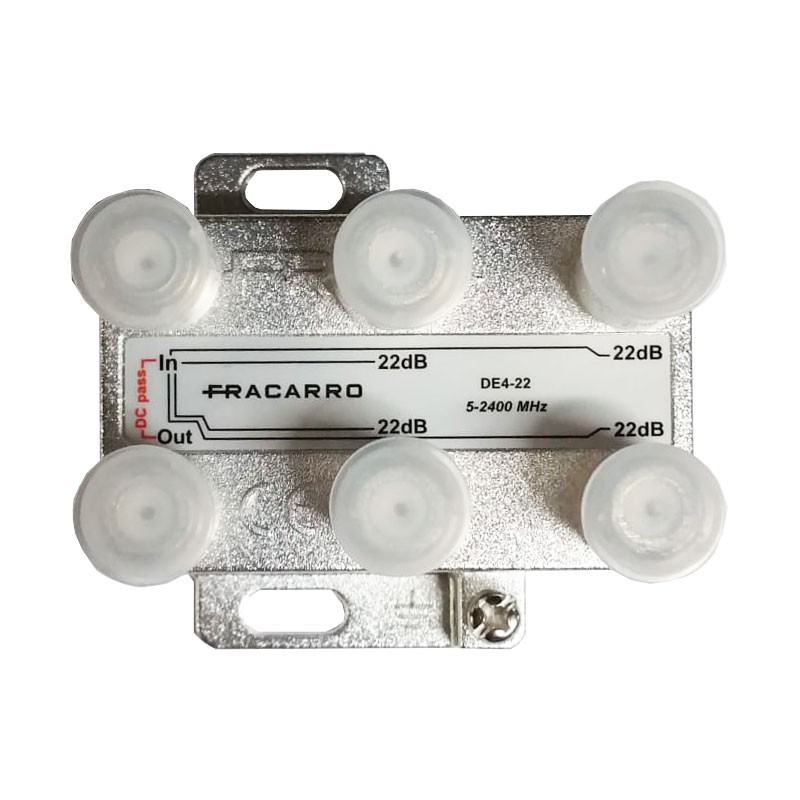

Fracarro DE4-22 Derivator, with the following characteristics:
- Insertion loss: 1-1.5 dB
- Tap loss: 22 dB
- Output-derivative separation: 38-26 dB
- Frequency 5-2400 MHz
- F type connectors
- With 1 input, 1 pass-through output and 4 derived outputs
€10.66
Items Available: 51
: 19
Features:
- Fracarro series
- Nickel-plated shielded die-cast body and ground connection screw
- Ensures high performance, with very low insertion losses
- High return-loss and isolation
- Allows the passage of DC between the input and the through output
- Wall mounting
- Class A shielding
There are no reviews
Data sheet
- Type: Shunts
- Version: 4 outputs
