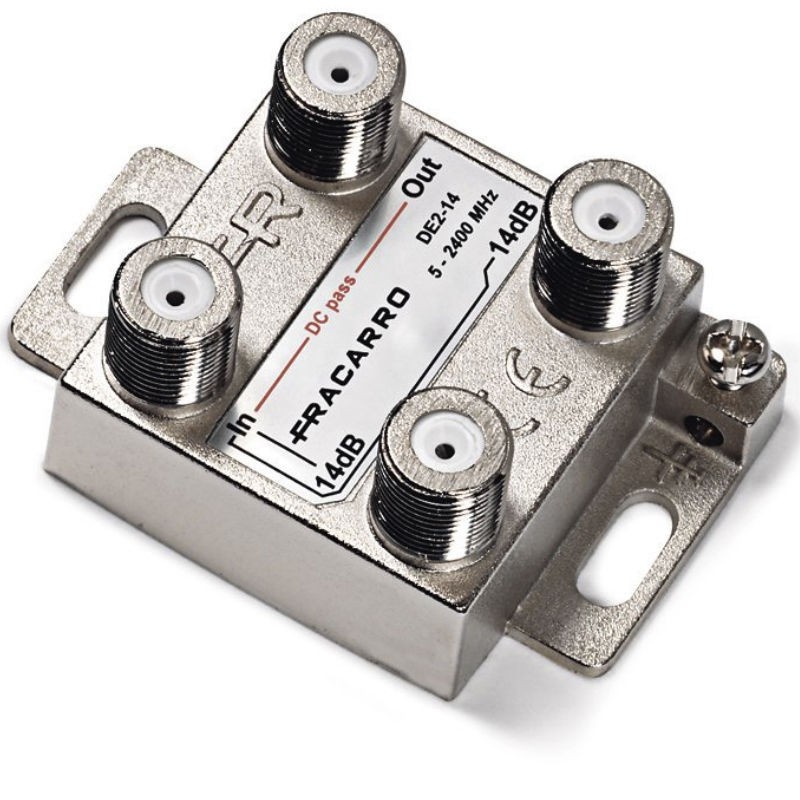

Fracarro 2-way 14dB bypass 280715
FRA 280715
8016978007622
Fracarro DE2-14 Derivator, with the following characteristics:
- Insertion loss: 1.5-2.2 dB
- Tap loss: 14 dB
- Output-derivative separation: 35-23 dB
- Frequency 5-2400 MHz
- F type connectors
- With 1 input, 1 pass-through output and 2 derived outputs
€7.06
Items Available: 255
: 42
Features:
- Fracarro series
- Nickel-plated shielded die-cast body and ground connection screw
- Ensures high performance, with very low insertion losses
- High return-loss and isolation
- Allows the passage of DC between the input and the through output
- Wall mounting
- Class A shielding
Ottimo prodotto, sia esteticamente che qualitativamente
tutto ok partitore con bassa perdita.
Data sheet
- Type: Shunts
- Version: 2 outputs
