Fracarro shunt 1DER 5-2400 F 280710
FRA 280710
8016978007523

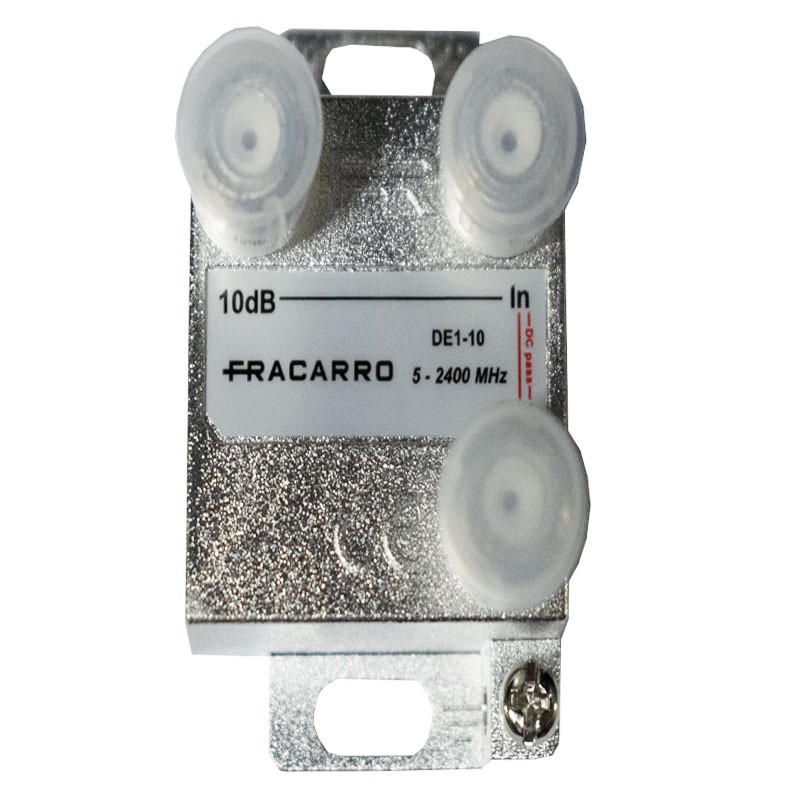

DE1-10 Fracarro 1-way vertical extender, with 10dB attenuation and F connector in TV and Satellite band (5-2400MHz).
€6.14
Items Available: 328
: 71
Advantages:
- Elegant and compact design allows installation in any junction box
- Die-cast and nickel-plated, ensures high performance, with very low insertion loss, high return loss and insulation
- Prepared for grounding and wall mounting
- DC is allowed to pass between the feed-through output and the input
Passing loss (dB)
- RC 5-40 MHz: dB 1,5
- TV 47-862 MHz: dB 1,3
- SAT 950-1750 MHz: dB 1,6
- SAT 1750-2150 MHz: dB 2
- SAT 2150-2400 MHz: dB 2
Tap loss (dB)
- RC 5-40 MHz: dB 10,5
- TV 47-862 MHz: dB 10,5
- SAT 950-1750 MHz: dB 11
- SAT 1750-2150 MHz: dB 11
- SAT 2150-2400 MHz: dB 11
Output isolation (dB)
- RC 5-40 MHz: dB 40
- TV 47-862 MHz: dB 34
- SAT 950-1750 MHz: dB 27
- SAT 1750-2150 MHz: dB 24
- SAT 2150-2400 MHz: dB 24
Tutto ok nessun problema abbastanza soddisfatto
Fracarro non si discute, prodotto al top dopo Televes.
Data sheet
- Type: Shunts
- Version: 1 output
