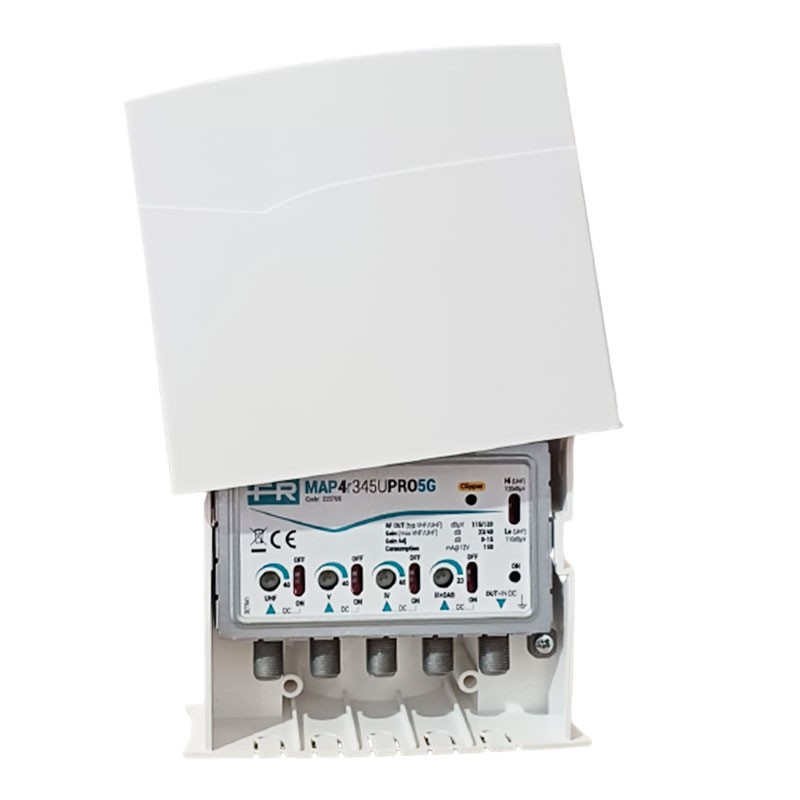

Fracarro MAP4R345U PRO 5G 23/40 dB Pole Mount Amplifier 223769
FRA 223769
8016978102099
Fracarro MAP PRO 5G high-performance multi-input pole mount amplifier with the following features:
- Number of inputs: 4
- Type of inputs: 3+DAB, 4, 5, UHF
- Gain dB: 23, 40, 40, 40
- Output level dBµV: 115/120
- mA consumption @ 12V: 150
- Built-in 5G filter and clipper functionality
- With independent management and gain adjustments for each input
€44.67
Items Available: 30
: 20
Advantages:
- "Hi/Low" selector switch: allows you to adjust the maximum UHF output signal level to two different levels (110 dBµV and 120 dBµV), so you can quickly set the right UHF level according to the size of the coaxial system to be served.
- Built-in 5G filter: to eliminate LTE 4G interference at 790 MHz and 5G interference at 694 MHz; providing connections with more protection from the elements than an external filter
- Clipper feature: present on all models, automatically limits device gain to ensure maximum RF output level and minimize intermodulation
- Die-cast ZAMA chassis with metal covers to ensure high shielding to LTE noise

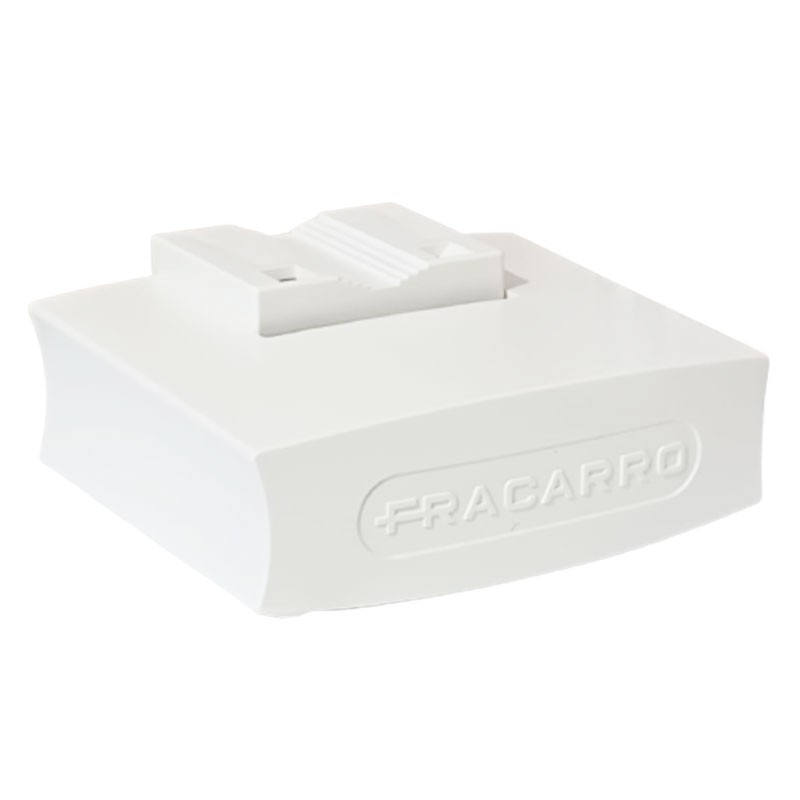

- New ABS outdoor protective hood is equipped with a slide opening and tilting system for the amplifier section to make the installer's job easier when connecting and setting up the pole-mounted amplifier
Tutto come descritto. Prodotto che mi ha risolto il problema.
Prodotto ok molto funzionale arrivato nei tempi previsti
Ottimo amplificatore con il quale ho risolto tutti i problemi di ricezione
Tutto perfetto spedizione velocossima buono l'imballo
ottimo di ottima qualità come da descrizione
Amplificatore al di sopra della concorrenza.
Ottimo
Ottimo prodotto per il lavoro che doveva fare
Data sheet
- Type: Amplifiers
- Model: Pole
