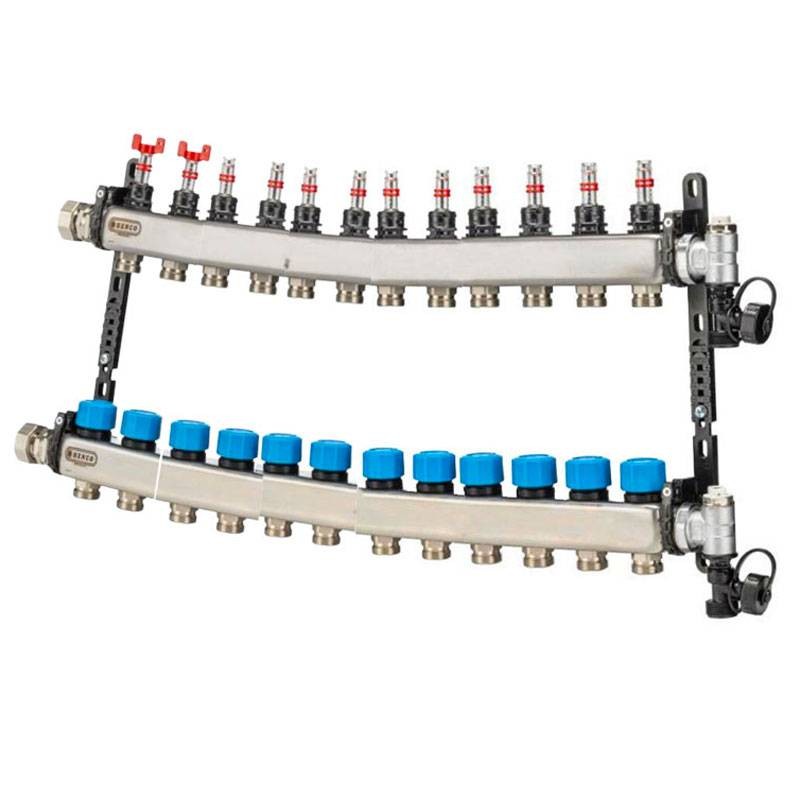

It consists of: supply and return manifolds, 2 manual vents and 2 loading/unloading taps. The manifold is equipped with height-adjustable anti-vibration brackets with special geometry that allows misalignment between supply and return manifolds facilitating self-adhesive passage.



The supply manifold is equipped with flow meters. The return manifold is equipped with pre-calibrated valves, with cap for manual control, arranged for installation of electrothermal heads.



The inlet and outlet connections are 1 female while the branches are 3/4" male eurocone and have 50 mm spacing. The manifold is supplied with a pair of self-adhesive thermometers.



Features:

• Body material: stainless steel
• Permissible fluids: water/glycol water
• Maximum percentage of glycol: 45 percent
• Operating temperature: 5/55 degrees
• Maximum temperature at 3 bar: 90 degrees
• Operating pressure: 0.2/6 bar
• Maximum pressure with 24h water <30°C: 10 bar
• Ambient temperature: -5/+70 degrees
• Ambient humidity %RH < 90
• Wheelbase: 50 mm
• Adjustable brackets 200-240 mm
• Flow meter: 0/3 l/m
• Cassette depth >76 mm
• Measuring range: 0/3 l/m
• Maximum flow rate adjustment torque: 1 Nm



The flow meter is equipped with a key for flow adjustment. For proper setting of the system, turn the key counterclockwise to the maximum flow rate, when the indicator reads 3 l/min.



To close the meter, turn the key clockwise to the minimum flow rate, when the indicator reads 0 l/min. To avoid possible damage to the manifold, it is recommended to use only the keys provided. Do not use any other tools to adjust the flow meters.
