Teco K4.0 DN15 cold/hot water manifold Fastec K400BF10100
1TC K400BF10100
8050880180622
Cold/hot water manifold Teco K4.0 DN15 Fastec Recessed Kit with double interception, Soft Turn operation and brass Top Entry body
-
Model: Teco K4.0
-
Type: Recessed cold and hot water manifold with double interception
-
DN: DN15
-

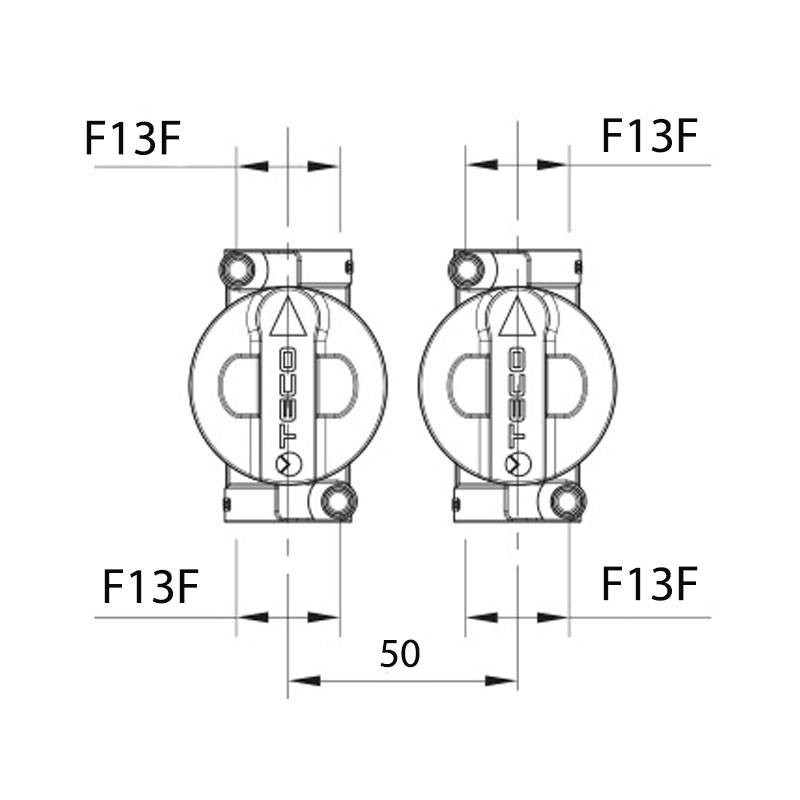

Connections: Fastec F13
-

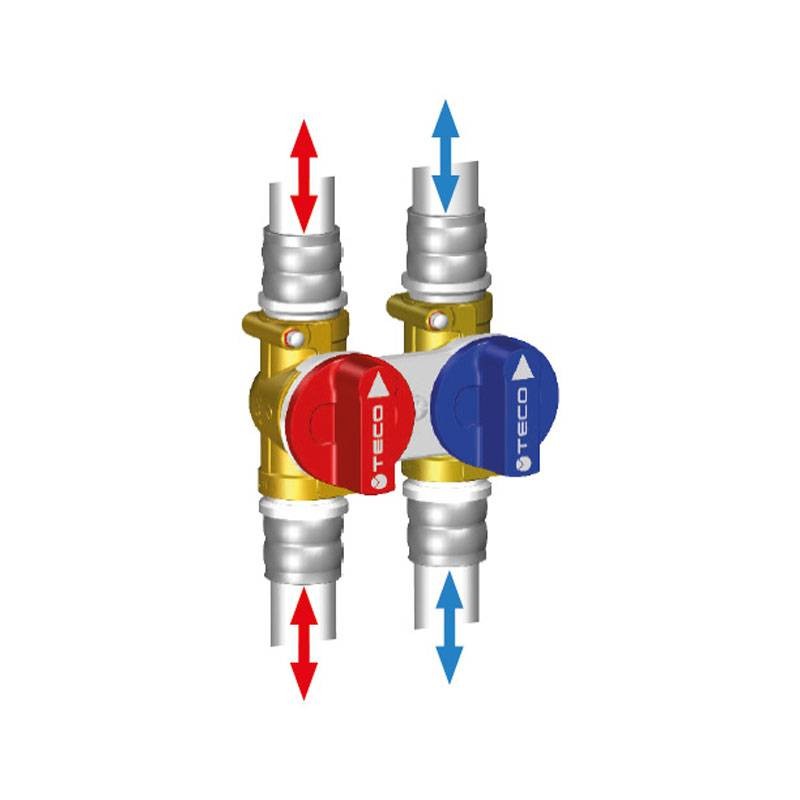

Valves: 2 removable ball valves
-
Technology: Soft Turn for light operation
-
Valve system: Top Entry
-
Standard: Compliant with UNI EN 13828
-
Body material: Brass
-
Max operating temperature: 95 °C
-

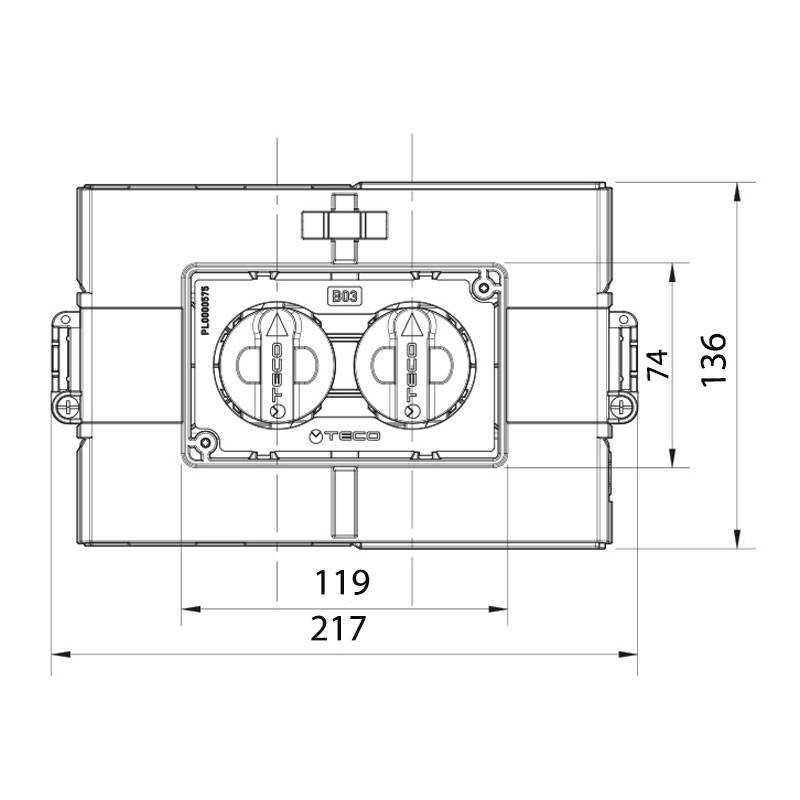

Recessed box dimensions: 215 x 135 x 75 mm
-
Equipment: 2 removable ball valves - Site protection - Mounting brackets - Box 215 x 135 x 75 mm
-
Cover plate (to be purchased separately in different colours)
€56.16
Items Available: 23
Frequently bought together
Kit Teco K4.0 cold/hot water manifold: Easy installation and facilitated inspection
The Teco K4.0 Fastec DN15 manifold is the ideal recessed solution for the separate distribution and interception of cold and hot water in civil installations. Thanks to the double removable valve system with Soft Turn technology, it ensures smooth, silent, and long-lasting operation. The Fastec F13 quick connection system allows for fast and secure installation without the use of tools and is compatible with masonry and plasterboard installations, with a minimum installation depth of 85 mm for the DN15 version.
Safety and performance in every condition
The corrosion-resistant brass valve body and Top Entry system make this kit fully inspectable and easily maintainable. The valves are removable even when the system is already installed, allowing for quick interventions if necessary. Thanks to compliance with the UNI EN 13828 standard, the manifold is also suitable for use with drinking water, heating, and cooling, even in the presence of antifreeze liquids.
| MAIN FEATURES | |
|---|---|
| Model | Teco K4.0 DN15 |
| Type | 2-way cold/hot water manifold |
| DN | DN15 |
| Connections | Fastec F13 |
| Valves | 2 removable ball valves, Soft Turn |
| Valve body | Brass, Top Entry system |
| Max temperature | 95 °C |
| Standard | UNI EN 13828 |
| Applications | Drinking water, heating, cooling |
| RECESSED BOX | |
| Box dimensions | 215 × 135 × 75 mm |

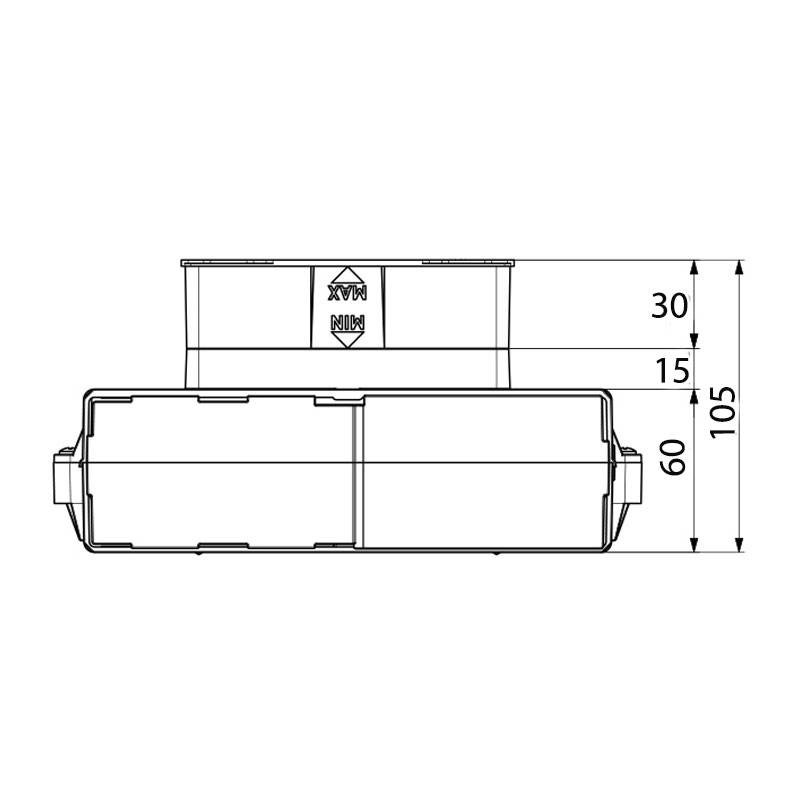

| Minimum installation depth | 85 mm |
| EQUIPMENT | |
| Included components | Site protection Mounting brackets |
| OPTIONAL ACCESSORIES | |
| Cover plate | Optional, available in 4 colours |
There are no reviews
Data sheet
- Type: Modular Manifolds
