Teco Gas Manifold K2.4 with 3-way 3/4 interception K204DC10100

Teco
Teco
1TC K204DC10100 8050880185764

Gas Manifold Teco K2.4 with 3-way general interception DN20, certified safety and centralized gas system management.

  • Model: Teco K2.4

  • Type: Recessed gas manifold with 3-way general interception

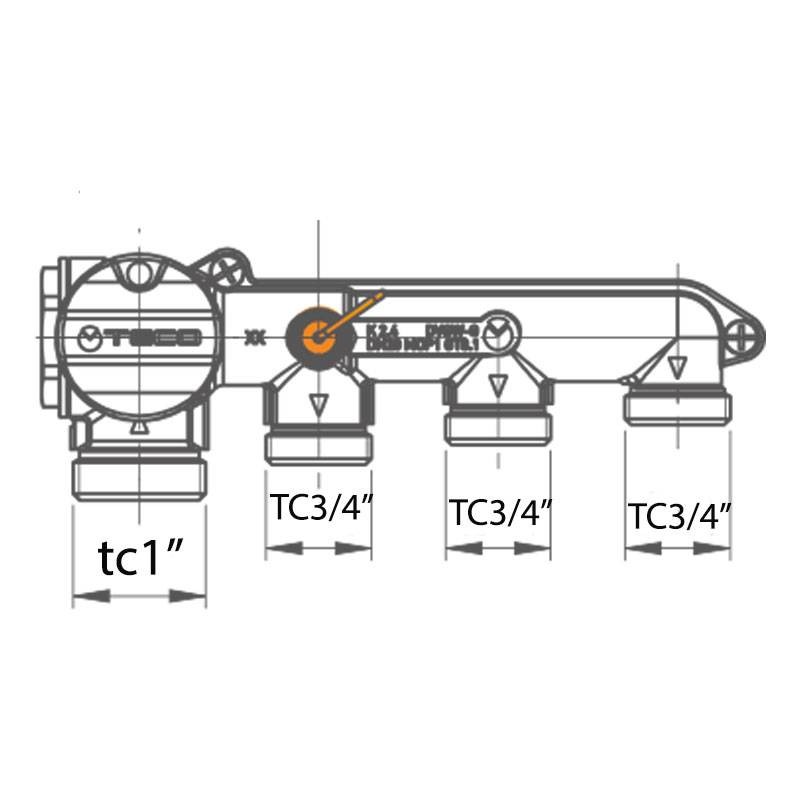

  • Inlet: TC 1 (Conical Seal)

  • Outlets: 3 x TC 3/4 compliant with DIN 3439 standard

  • DN: DN20

  • Main valve: UNI EN 331 ball valve

  • Pressure connection: Integrated Punto Arancio

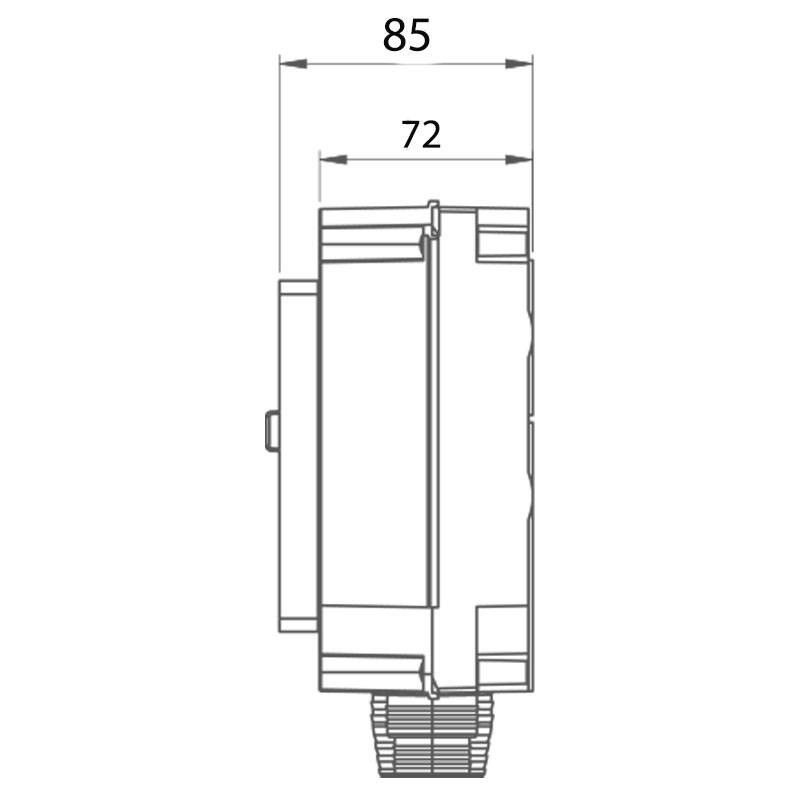

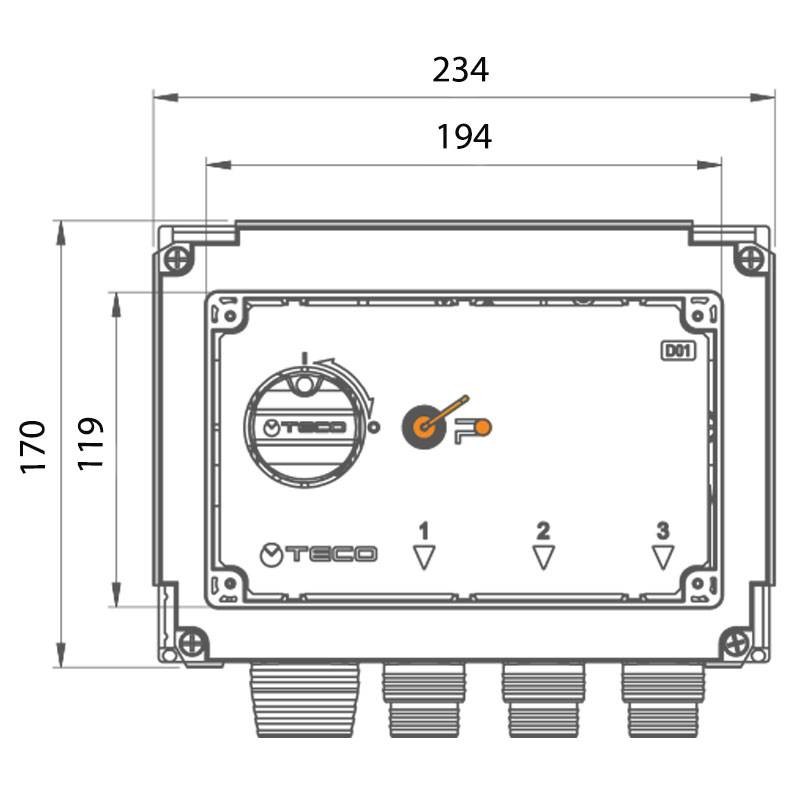

  • Recessed box: 235 x 170 x 85 mm, ventilated

  • Material: Brass body

  • Operating temperature: 20°C / +60°C

  • Equipment: 3-way manifold - Airtight sandwich box - Fixing brackets - Construction site protection - Punto Arancio® pressure connection

  • Optional accessories: Cover plate with door (not included in package)

Do you have questions about this product or did you not find what you were looking for? Ask us!
Teco Gas Manifold K2.4 with 3-way 3/4 interception K204DC10100
€93.88
€93.88

€93.88
Tax included
Calculate shipping cost
Items Available: 12
Further availability of the manufacturer
€93.88

Buy it within and receive it from Friday, 6 February
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

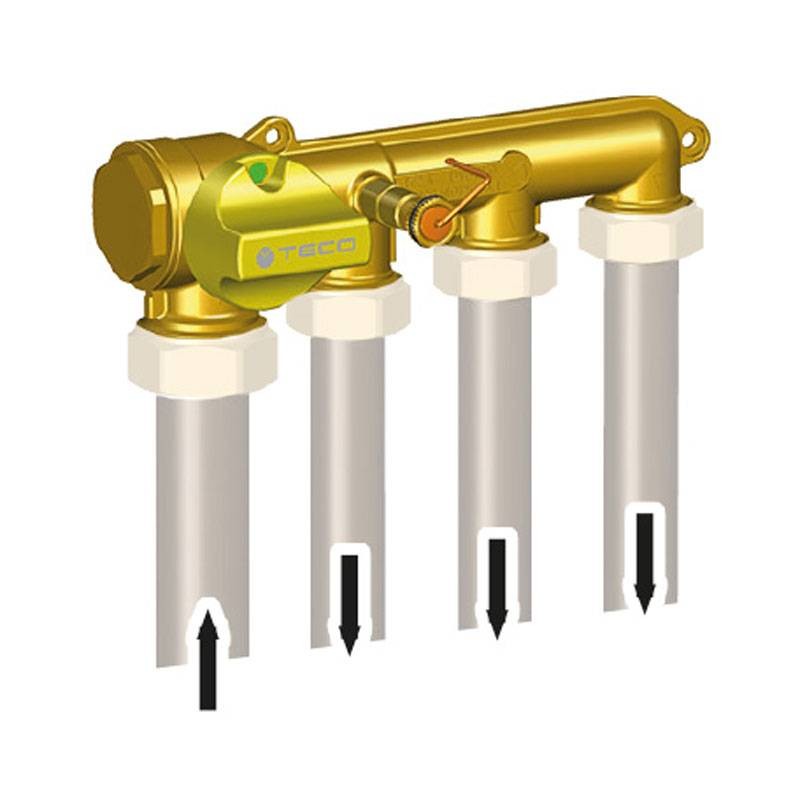

Manifold K2.4: 3 gas lines under control, in total safety

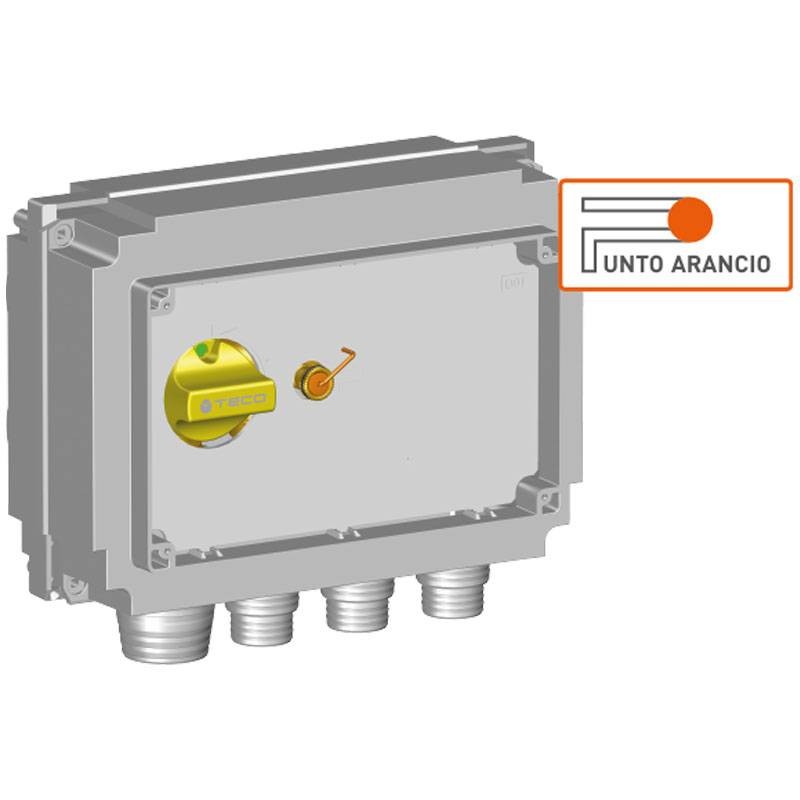

The Teco K2.4 3-way manifold is the ideal solution for the centralized management of three gas branches, ensuring general interception with a UNI EN 331 certified ball valve. The compact structure and ventilated recessed box allow installation even in tight spaces, without compromising on safety and functionality.

Integrated pressure connection for testing and inspection

The manifold is equipped with a Punto Arancio® pressure connection, essential for the initial testing of the system, leak verification, and periodic pressure tests. A fundamental feature for compliance with current regulations on civil and industrial gas systems.

Practical installation and easy inspection

The sandwich box with airtight seal, complete with ventilation to the environment, is designed for wall recess with front inspection, thanks to the manually openable cover plate (optional accessory, available in three colours). The control handles with open/closed status indicator facilitate use even by the end user.

The kit includes construction site protections and fixing brackets, for safe and quick installation.

There are no reviews

Data sheet

Type:
Modular Manifolds
Connections:
3/4 inches
