Teco Gas Manifold K2.3 with 2-way shut-off 3/4 K203CC10100
1TC K203CC10100
8050880185788
Gas manifold Teco K2.3 2-way with general shut-off Certified safety and centralized control for recessed gas systems.
-
Model: Teco K2.3
-
Type: Recessed gas manifold with general shut-off on two ways
-

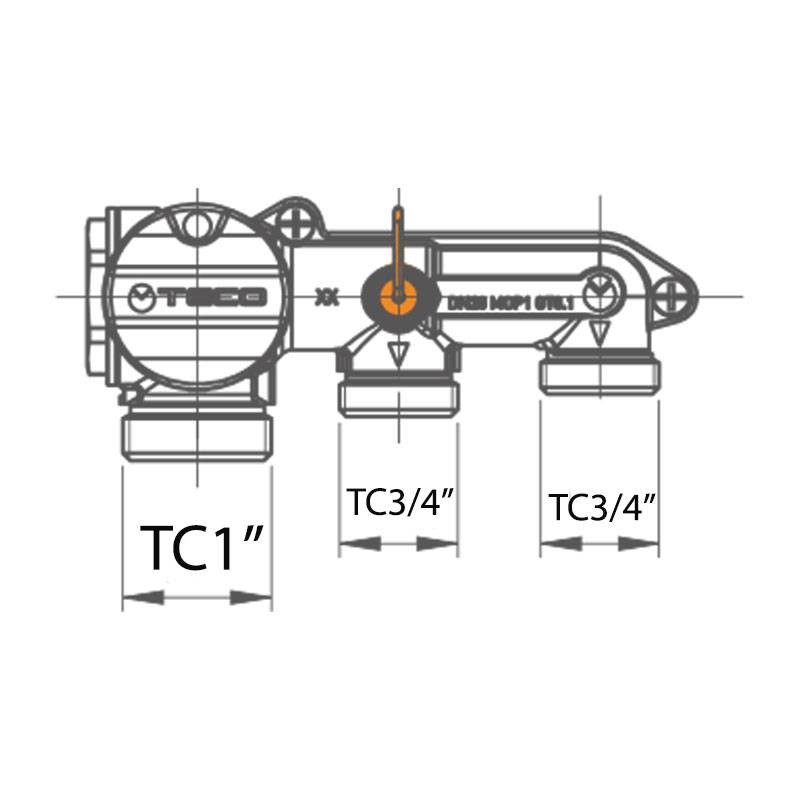

Inlet connection: Conical Seal TC 1
-
Outlet connections: 2 x TC 3/4, DIN 3439 compliant
-
Main shut-off valve: ball, UNI EN 331 compliant
-
Pressure port: Integrated Punto Arancio on the body
-

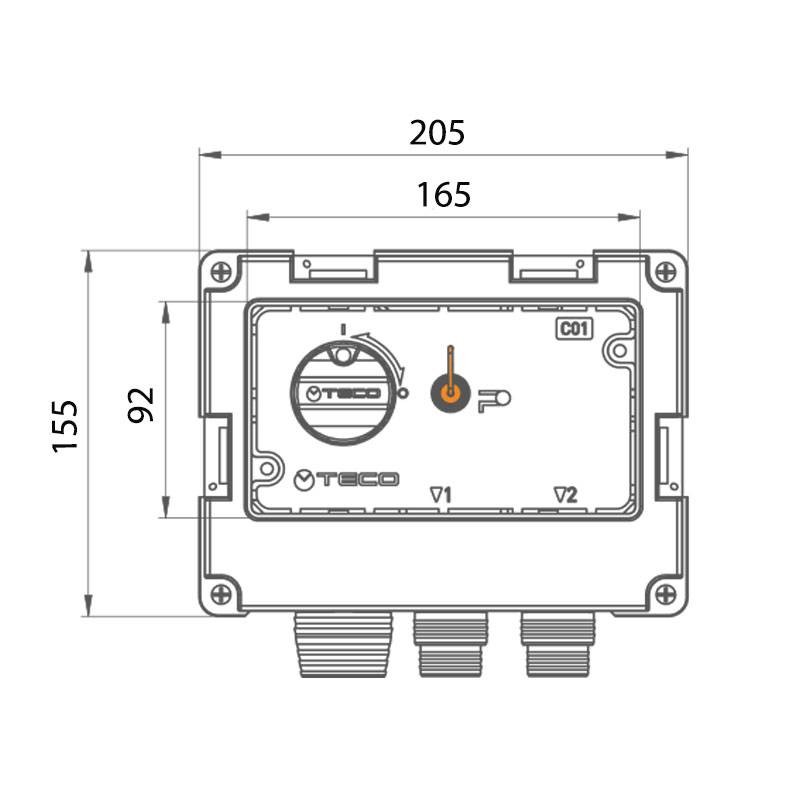

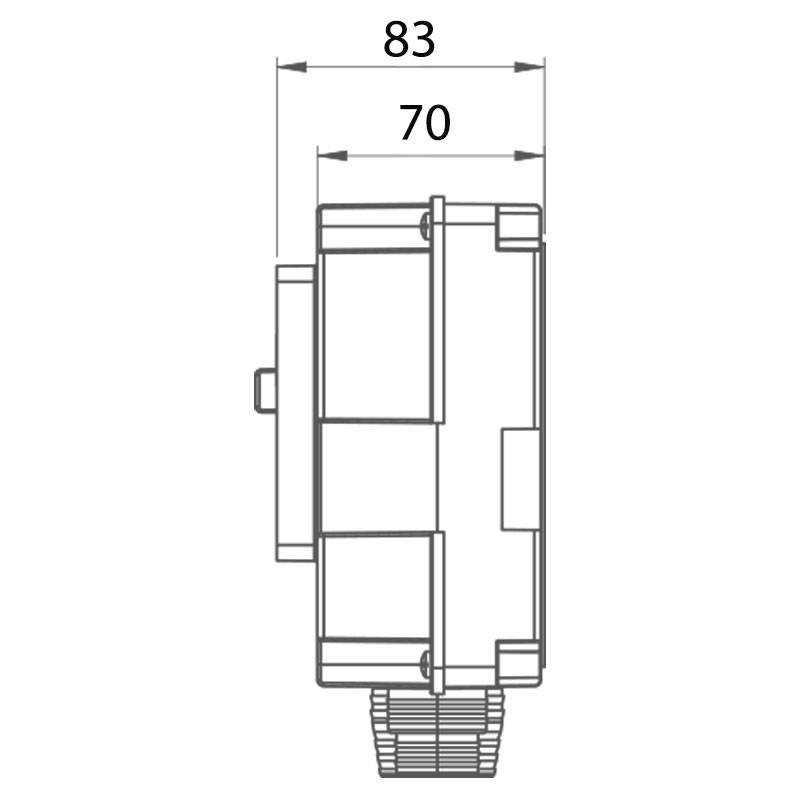

Recessed box dimensions: 205 × 155 × 85 mm
-
Operating temperature: from 20°C to +60°C
-
Body material: Brass
-
Equipment: Manifold with 2 branches - Inspectable box - Mounting brackets - Construction site protection
-
Pressure port: Punto Arancio
-
Optional accessories: Cover plate with door (not included in package)
€79.17
Items Available: 21
: 3
Frequently bought together

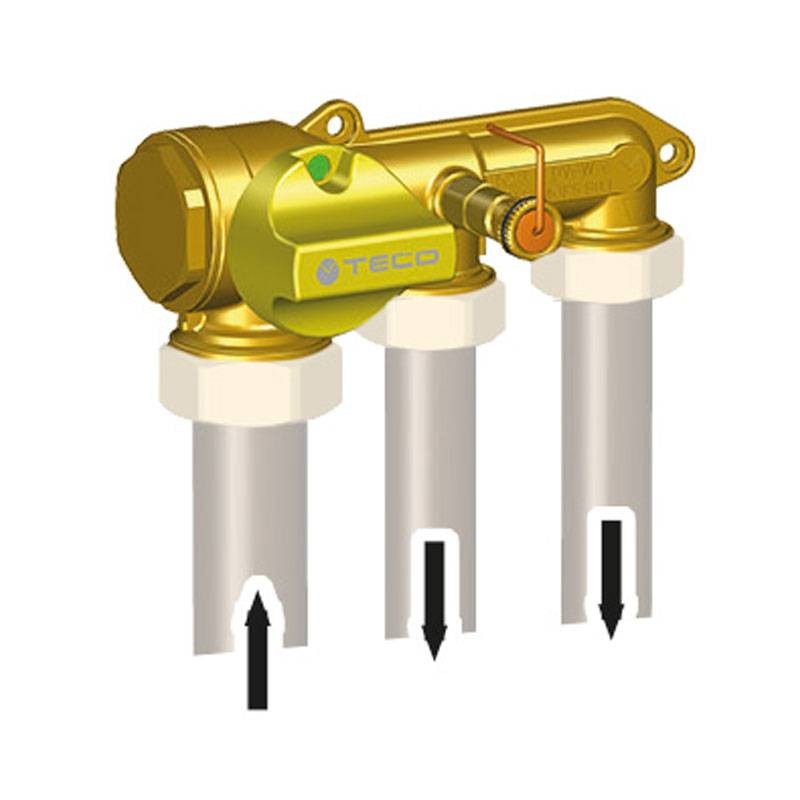

Gas manifold Teco K2.3: General control and system safety in a single solution
The gas manifold Teco K2.3 is the version with general shut-off of the K2 series: designed to ensure simultaneous control of two gas branches through a single central ball valve, certified according to UNI EN 331 standard, it offers quick and safe management of the entire gas system in case of maintenance or emergency.
Complete with Punto Arancio pressure port
Integrated into the brass body of the manifold, the Punto Arancio® pressure port allows for system testing and leak verification, as required by gas system regulations. The 3/4 conical seal outlet connections are DIN 3439 certified, ensuring long-term reliability even in complex systems or those subject to frequent inspections.
Simple installation and easy inspection
The recessed sandwich box, included in the kit, is ventilated towards the environment and offers watertight protection, ideal for both indoor and outdoor installations. The cover plate, available in three colours (optional accessory), can be manually opened and is equipped with a handle with an open/closed viewer, for quick reading of the valve status.
Integration of the mounting brackets and construction site protection makes installation safer and faster.
| MAIN FEATURES | |
|---|---|
| Series | K2.3 |
| Type | 2-way gas manifold with general shut-off |
| Inlet connection | TC 1” (conical seal) |
| Outlet connections | 2 × TC 3/4” (DIN 3439) |
| Ball valve | General shut-off, UNI EN 331 |
| Pressure port | Integrated Punto Arancio® |
| Operating temperature | –20°C ÷ +60°C |
| Body material | Brass |
| BOX | |
| Dimensions | 205 × 155 × 85 mm – ventilated, recessed |
| EQUIPMENT | |
| Included components | 2-way manifold Watertight sandwich box Mounting brackets Construction site protection Punto Arancio® port |
| OPTIONAL ACCESSORIES | |
| Cover plate | Available in 3 colours |
There are no reviews
Data sheet
- Type: Modular Manifolds
- Connections: 3/4 inches
