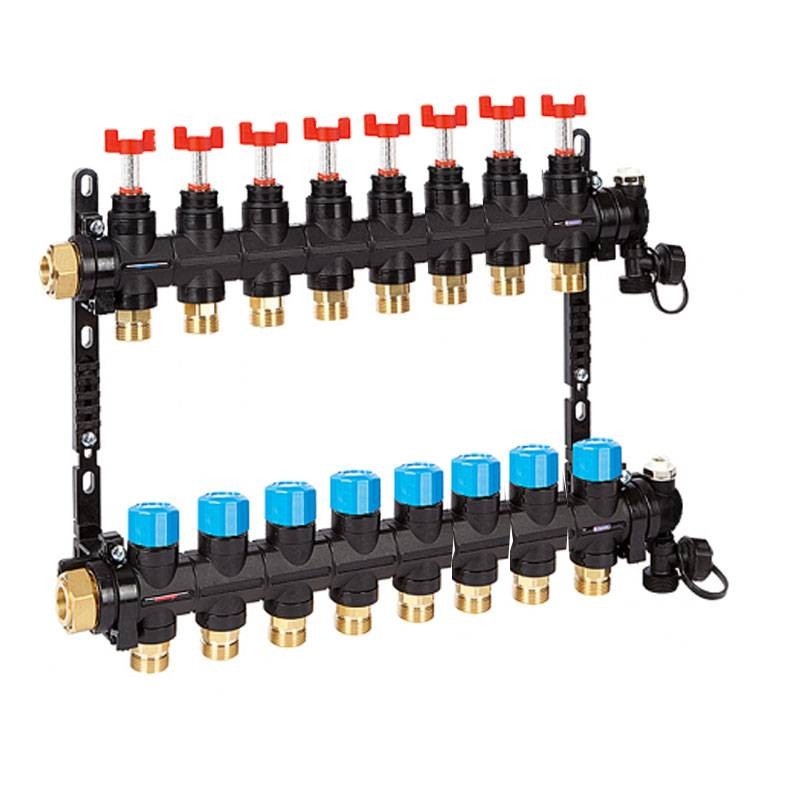

Cappellotto MDK manifold for 8-way radiant systems 1 inch x 3/4 UFH4708
HCO UFH4708
5414764430013
Cappellotto MDK manifold for radiant heating and cooling. Reinforced polyamide structure, with built-in flow meters and control valves, with the following features:
-
Number of ways: 8, made of composite material (reinforced polyamide)
-
Delivery with flow meters from: 0 to 3 l/min
-
Return with manual valves: Prepared for electrothermal heads
-
Anti-vibration brackets adjustable in height from: 200 to 240mm
-
Terminals: 2 manual vents and 2 fill/drain taps
-
Center distance: 50mm connections, 3/4 inch eurocone branches, 1 inch connection
€250.26
Items Available: 6
: 3
MDK manifold designed for modern radiant systems
The MDK manifold is specifically designed for radiant heating and cooling systems, with high-performance materials and optimized geometry. Reinforced polyamide construction ensures high thermal, chemical and mechanical resistance while maintaining low weight and long service life.
Integrated flow meters and precise regulation
The delivery manifold is equipped with flow meters (range 0 to 3l/min) with a dedicated key for flow adjustment. It is possible to precisely set the flow rate to each circuit, optimizing the balance of the system and improving its efficiency.
Valves on the return set up for electrothermal heads
The return manifold integrates manually capped control valves, easily converted for automatic control by electrothermal actuators, essential for home automation systems or zone-by-zone chronothermostats.
Versatile structure and easy installation
Adjustable anti-vibration brackets (200/240mm) allow installation in boxes deeper than 76mm. The special geometry facilitates misaligned installation between supply and return, simplifying the passage of pipes even in small spaces.
Reliable performance and guaranteed safety
-
Operating temperature: -5/+55°C (up to 90°C at 3 bar)
-
Operating pressure: 0.26 bar (max 10 bar at <30°C for 24h)
-
Compatibility: with water and glycol mixtures (up to 50%)
-
Max. ambient humidity: 90% RH Ambient temperature: -5/+70°C
Technical Specifications Cappellotto MDK Manifold
| Application | Radiant heating and cooling |
|---|---|
| Body material | Reinforced polyamide |
| Routes | 8 |
| Flow meters | 0-3l/min with adjustment key |
| Return valves | Manual, actuator-ready |
| Main connection | 1 inch Female |
| Branch connection | 3/4 inch Male EK (eurocone) |
| Adjustable brackets | 200-240mm |
| Branch spacing | 50?mm |
| Operating pressure | 0.2-6 bar (max 10?bar at <30°C for 24h) |
| Operating temperature | 5 to 55°C (max 90?°C at 3 bar) |
| Ambient temperature | -5 ÷ +70°C |
| Compatible fluids | Water / glycol water (up to 50%) |
There are no reviews
Data sheet
- Type: Modular Manifolds
- Connection: M/F
- Connections: 1 inch
3/4 inches
