Cappellotto Stainless steel manifold 7-way UFH5707
HCO UFH5707
5414764430082

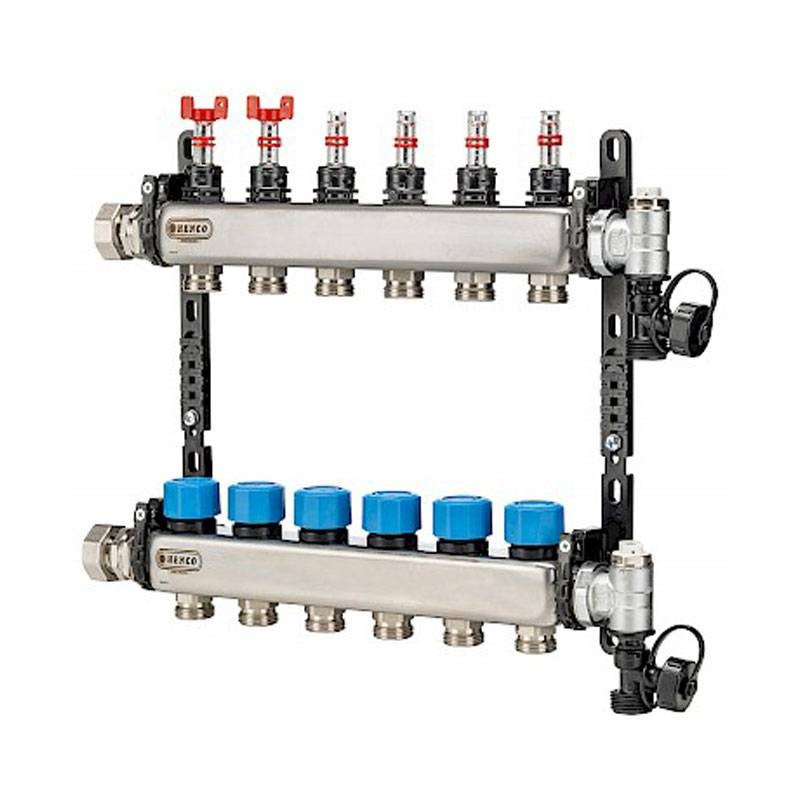

The UFH5707 manifold is designed for radiant air conditioning systems, ensuring efficiency and ease of installation. Constructed of high-quality stainless steel, it features numerous components that simplify its use and improve system performance:
-
Size: 1 "x7x3/4 "EK
-
Material: Stainless steel, corrosion-resistant
-
Fully equipped: Supply and return manifolds, 2 manual vents, 2 fill/drain taps
-
Advanced features: Flow meters on flow, pre-calibrated valves on return, provision for electrothermal heads
-
Anti-vibration brackets: Height-adjustable for greater stability
-
Ease of installation: Innovative geometry that facilitates misalignment between supply and return manifolds.
€255.09
Items Available: 2
: 1
1" Stainless Steel Manifold for Radiant Air Conditioning Systems UFH5707
The UFH5707 manifold is designed for radiant air conditioning systems, ensuring efficiency and ease of installation. Constructed of high-quality stainless steel, it features numerous components that simplify its use and improve the performance of the system.
Features and Benefits
The UFH5707 manifold is designed to facilitate installation and improve the efficiency of the radiant air conditioning system. The presence of adjustable anti-vibration brackets ensures greater stability, while the innovative geometry allows for misalignment between the supply and return manifold, making it easier to pass pipes. The compact design and quality materials make it perfect for residential and commercial environments.
Applications of the UFH5707 Manifold
The UFH5707 manifold is perfect for radiant air conditioning applications in residential and commercial buildings. With its ability to manage water flow accurately and reliably, it is ideal for underfloor heating systems. Its design makes it perfect for environments that require optimal temperature management, such as offices, shopping malls, and homes.
Technical Characteristics.
- Manifold size: 1 "x7x3/4 "EK
- Material: stainless steel
- Fully equipped: Supply and return manifolds, manual vents, fill/drain taps
- Flow meters: On the flow line
- Pre-calibrated valves: On the return, arranged for electrothermal heads
- Centre distance: 50 mm
- Connections: 1 female for inlet and outlet, 3/4" male for eurocone shunts
- Anti-vibration brackets: Height adjustable
- Pair of thermometers: Self-adhesive included
Specific Technical Features
| Feature | Detail |
|---|---|
| Body Material | Stainless steel AISI 304 |
| Permitted fluids | Water/Glycol |
| Maximum percentage of glycol | % 45 |
| Operating temperature (°C) | 5 ÷ 55 |
| Maximum temperature at 3 bar (°C) | 90 |
| Operating pressure (bar) | 0,2 ÷ 6 |
| Maximum pressure with water (24h <30°C) (bar) | 10 |
| Ambient temperature (°C) | -5 ÷ 70 |
| Ambient humidity (%RH) | < 90 |
| Spacing (mm) | 50 |
| Adjustable brackets (mm) | 200-240 |
| Flow meter (l/m) | 0 ÷ 3 |
| Cassette depth (mm) | > 76 |
| Main manifold connection (Inch) | 1 F |
| Branch connection (eurocone) (Inch) | ¾ M EK |
Technical Data Flow Meter (Supply Manifold)
| Description | U.M. | Value |
|---|---|---|
| Measuring range | l/m | 0 ÷ 3 |
| Maximum adjustment torque flow rate | Nm | 1 |
| Kv Pos 1 | m³/h | 0,06 |
| Kv Pos 2 | m³/h | 0,12 |
| Kv Pos 3 | m³/h | 0,18 |
| Kv fully open | m³/h | 0,78 |
Technical Data Interceptor Valve (Return Manifold)
| Description | U.M. | Value |
|---|---|---|
| Stem stroke | mm | 3,8 |
| Kv | m³/h | 1,92 |
There are no reviews
Data sheet
- Type: Modular Manifolds
- Connection: M/F
- Connections: 1 inch
3/4 inches
