Cappellotto Stainless Steel Manifold 11-Way UFH5711
HCO UFH5711
5414764430129

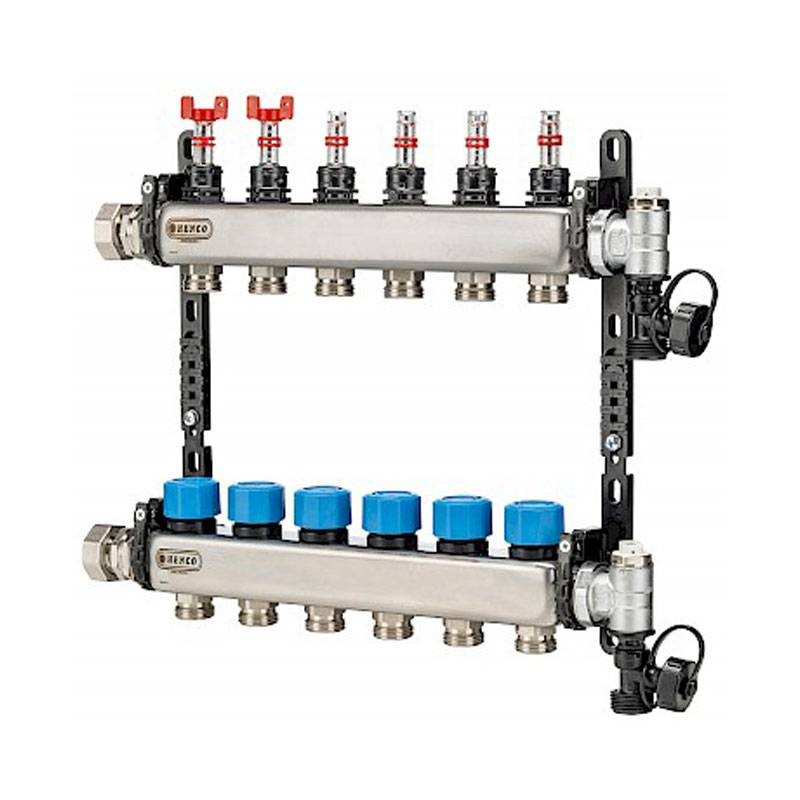

The UFH5711 manifold, made of high-quality stainless steel, is designed for radiant air conditioning systems. Featuring a robust and functional design, this manifold ensures easy installation and optimal water flow management in underfloor heating systems. With an innovative design, it ensures excellent performance and ease of maintenance:
-
Size: 1 "x11x3/4 "EK
-
Material: Stainless steel, corrosion-resistant
-
Fully equipped: Flow and return manifolds, 2 manual vents, 2 fill/drain taps
-
Advanced features: Flow meters on flow, pre-calibrated valves on return, prepared for electrothermal heads
-
Adjustability: Anti-vibration brackets adjustable in height
-
Ease of installation: Geometry that facilitates misalignment between supply and return manifold for smooth pipe passage.
€353.68
Items Available: 6
: 3
Description of the UFH5711 Manifold
The UFH5711 1" Stainless Steel Manifold is designed to provide effective management of radiant air conditioning systems. Due to its stainless steel construction, it provides long life and corrosion resistance, making it ideal for use in environments with high performance and durability requirements. The manifold design includes supply and return manifolds, 2 manual vents, and 2 fill/drain taps for convenient control of water in the system.
Features and Benefits
The manifold is equipped with flow meters on the supply side, which allow easy monitoring of water flow in the system. In addition, the return manifold is equipped with pre-set valves and cap for manual control, allowing easy and precise adjustment of the flow rate. It is also prepared for the installation of electrothermal heads, which help optimize temperature control.
The manifold design includes height-adjustable anti-vibration brackets, which provide greater stability during use and easy installation. The innovative geometry allows for misalignment between the supply and return manifolds, thus facilitating the passage of pipes. This makes installation faster and more efficient, reducing labor time and increasing system reliability.
Applications of the UFH5711 Manifold
The UFH5711 manifold is ideal for radiant air conditioning systems, particularly those used in underfloor heating systems. It can be used in residential buildings, offices, businesses, and shopping centers where precise and reliable temperature control is needed. Its compact design and quality materials make it perfect for applications requiring high performance.
Technical Characteristics
- Manifold size: 1 "x11x3/4 "EK
- Material: Stainless steel
- Fully equipped: Supply and return manifolds, manual vents, loading/unloading taps
- Flow meters: on the flow line
- Pre-calibrated valves: on the return, arranged for electrothermal heads
- Centre distance: 50 mm
- Connections: 1 female for inlet and outlet, 3/4" male for eurocone shunts
- Anti-vibration brackets: adjustable in height
- Pair of thermometers: self-adhesive included
Specific Technical Features
| Feature | Detail |
|---|---|
| Body material | Stainless steel AISI 304 |
| Permitted fluids | Water/Glycol |
| Maximum percentage of glycol | % 45 |
| Operating temperature (°C) | 5 ÷ 55 |
| Maximum temperature at 3 bar (°C) | 90 |
| Operating pressure (bar) | 0,2 ÷ 6 |
| Maximum pressure with water (24h <30°C) (bar) | 10 |
| Ambient temperature (°C) | -5 ÷ 70 |
| Ambient humidity (%RH) | < 90 |
| Spacing (mm) | 50 |
| Adjustable brackets (mm) | 200-240 |
| Flow meter (l/m) | 0 ÷ 3 |
| Cassette depth (mm) | > 76 |
| Main manifold connection (Inch) | 1 F |
| Branch connection (eurocone) (Inch) | ¾ M EK |
Technical Data Flow Meter (Supply Manifold)
| Description | U.M. | Value |
|---|---|---|
| Measuring range | l/m | 0 ÷ 3 |
| Maximum adjustment torque flow rate | Nm | 1 |
| Kv Pos 1 | m³/h | 0,06 |
| Kv Pos 2 | m³/h | 0,12 |
| Kv Pos 3 | m³/h | 0,18 |
| Kv fully open | m³/h | 0,78 |
Technical Data Interceptor Valve (Return Manifold)
| Description | U.M. | Value |
|---|---|---|
| Stem stroke | mm | 3,8 |
| Kv | m³/h | 1,92 |
There are no reviews
Data sheet
- Type: Modular Manifolds
- Connection: M/F
- Connections: 1 inch
3/4 inches
