Teco Manifold CK3 5 outlets multi shut-off CK035F10100
1TC CK035F10100
8050880185696

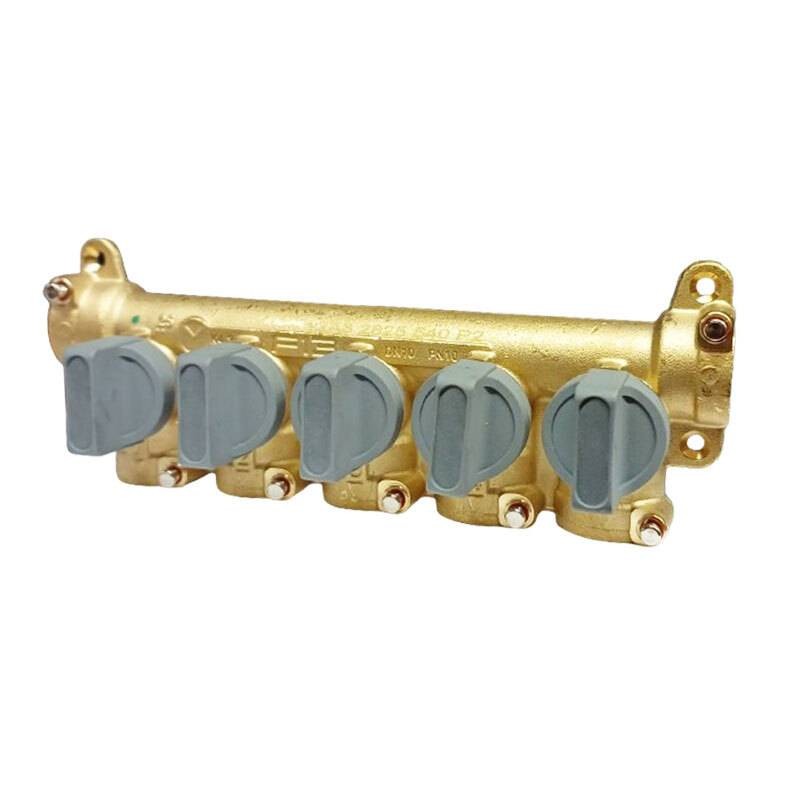

Teco Manifold CK3 with 5 outlets DN15/DN10 with single shut-offs Multi-user module for sanitary and hydronic systems, compatible with K-BLOC system and Fastec F13 fittings.
-
Model: CK3
-
Type: DN15 Manifold with 5 DN10 outlets with independent shut-off
-
Compatibility: K-BLOC System
-
User connection: Fastec F13
-
Length: 183 mm
-
Temperature range: from +5 °C to +95 °C
-
Nominal pressure: PN 10 (10 bar)
-
Equipment: Adhesive labels for user identification
-
Certifications: DIN EN 13828, W570-1, KTW-BWGL, ACS, PZH.
€66.00
Items Available: 21
: 3
Frequently bought together
Teco CK3 Modular Manifold: control and convenience for sanitary systems
The CK3 Teco manifold with 5 shut-off outlets is an ideal solution for creating multi-zone hydronic and sanitary systems. Part of the K-BLOC system, it is designed to facilitate modular installation, user management, and simplified maintenance thanks to independent shut-offs on each outlet.
Compact and functional structure
With a length of only 183 mm, the CK3 manifold fits perfectly into distribution boxes even of small sizes. The connection is made via Fastec F13 fittings, ensuring fast, secure installation without special tools, reducing on-site installation time.
Each DN10 outlet is equipped with a single shut-off valve, allowing each user to be isolated individually for maintenance or system modifications without interrupting the system's operation.
Certified reliability for civil and commercial systems
The manifold complies with strict international standards:
-
DIN EN 13828 (valves for domestic systems)
-
KTW-BWGL and ACS (suitability for contact with drinking water)
-
W570-1, PZH (European hygienic-sanitary certifications)
These certifications make it suitable for use in potable, sanitary, and heating systems, ensuring resistance to pressures up to 10 bar and high temperatures up to +95 °C.
There are no reviews
Data sheet
- Type: Modular Manifolds
