Giacomini modular manifold without faucet M/F 1 x 3/4 4 detachments R580CY054
Giacomini R580C modular manifold without tap for domestic water with the following features:
- Connection: M/F
- Fittings: 1 inch x 3/4
- Number of connections: 4
- Adapter seat diameter: 18 mm
- Maximum working pressure: 10 bar
- Length: 172 mm

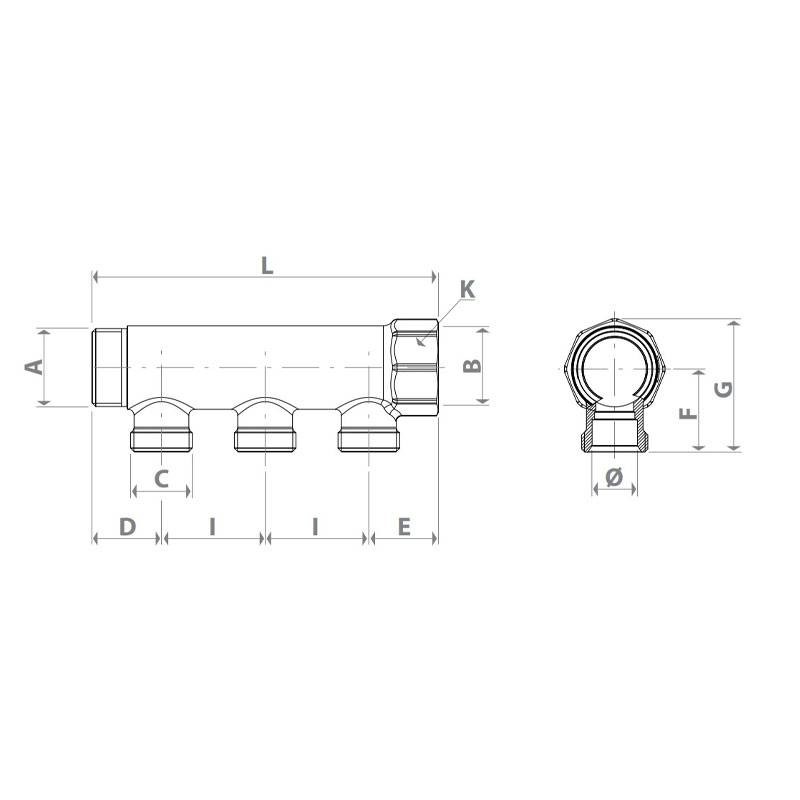

- Dimensions: 1 inchx3/4x26x33x53x40x38 mm (AxB-C-D-E-F-G-I-K)
Giacomini modular manifold without faucet M/F 1 x 3/4 4 detachments R580CY054
Tax included
Frequently bought together
With the R580C series of modular manifolds without a shut-off tap, Giacomini is responding to the growing demand for products intended for domestic water distribution in which ease of installation, reliability in operation and, more generally, attention to detail make a difference to the level of quality perceived by the end user.
Only the following adapters can be mounted with R580CY054 manifolds:
For plastic or multilayer pipes:
- R179EX021: 3/4E x (12 x 1.5)
- R179EX023: 3/4E x (14 x 2)
- R179EX022: 3/4E x (16 x 1.5)
- R179EY028: 3/4E x (16 x 1.8)
- R179EX024: 3/4E x (16 x 2)
- R179EX025: 3/4E x (17 x 2)
- R179EX026: 3/4E x (18 x 2)
- R179EX027: 3/4E x (20 x 2)
- RM179X103: 3/4E x (16 x 2)
- RM179X106: 3/4E x (20 x 2)
For copper pipes:
- R178EX112: 3/4E x 12
- R178EX113: 3/4E x 14
- R178EX104: 3/4E x 15
- R178EX115: 3/4E x 16
- R178EX116: 3/4E x 18
Mounting the manifolds inside the R599 cassette, by means of the R598K sliding supports, is done on horizontal rails and thus without positioning constraints. By taking advantage of the large openings made in the bottom of the cassette, moreover, manifolds with different center distances can be conveniently installed. The opening of the hatch can be done without the use of any tools, to allow rapid intervention on the intercepting taps, while the closure is maintained thanks to solid grooves cut in the surface of the frame.
Data sheet
- Type:
- Modular Manifolds
- Connection:
- M/F
- Connections:
- 1-3/4 inches
