Giacomini manifold kit 11 outlets 1 inch base 18 brass R553FK111
GIM R553FK111
8009902270261

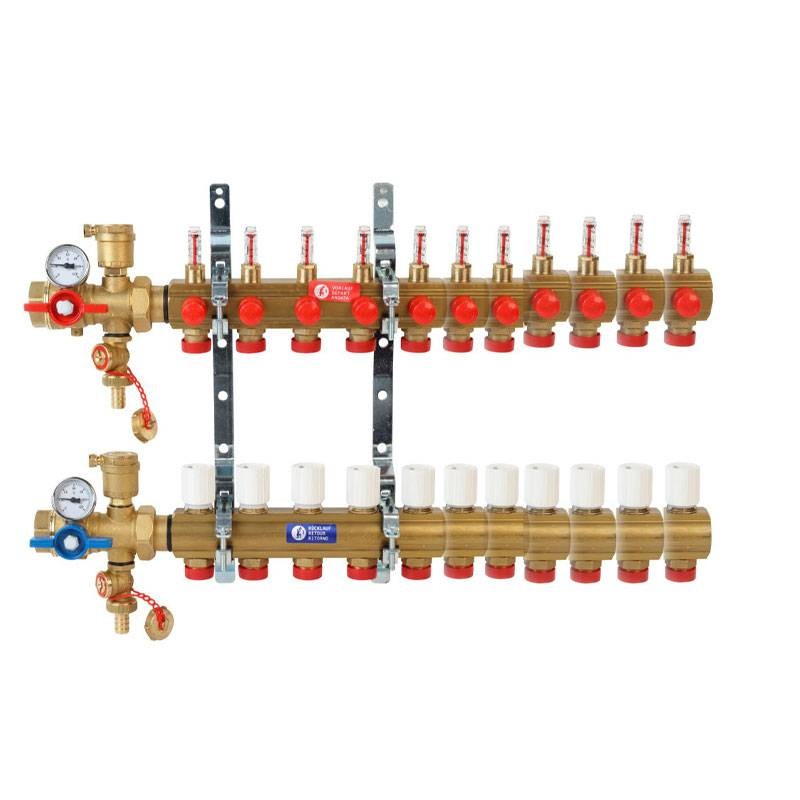

Giacomini preassembled manifold kit, with flow meters and multifunction valves, complete with supports, plugs and adjustment key, with the following features:
-
Number of outlets: 11
-
Flow bar: Von flow meters (0.5÷5 l/min) and lockshields with mechanical memory
-
Return bar: With shut-off valves arranged for electrothermal control
-
Pair of valves: Multifunction R269T with loading/unloading tap, air vent and connections for thermometers or probes
-
Max pressure: 10 bar
-
Outlet center distance: 50 mm
-
Manifold connection: 1 inch for 18 mm base
€354.93
Items Available: 8
: 2
Frequently bought together
Giacomini manifold kit control, balancing and reliability
The Giacomini manifold kit is a complete, professional and ready-to-install solution for underfloor heating systems or radiators. Designed to ensure maximum precision in hydraulic balancing, it integrates advanced features such as immediate flow rate reading, circuit interception, individual calibration, as well as the possibility of installing electrothermal controls for automated temperature management in a single system.
Flow manifold with flow meters
The flow bar is equipped with balancing lockshields with mechanical memory, which allows the correct calibration to be set and maintained for each circuit. Transparent flow meters (0.5÷5 l/min scale) allow immediate balancing, displaying the amount of circulating water in real time.
Return manifold prepared for electrothermal controls
Return manifold includes valves with manual steering wheel, removable for installation of Giacomini R478, R478M, R473, R473M compatible electrothermal actuators for smart control of circuits and temperature.
R269T multifunction valves: one solution for multiple functions
Installed upstream of the manifold, multifunction valves integrate:
-
Shut-off ball valve
-
Automatic air vent
-
System load/unload tap
-
Contact thermometer
-
Inlet for Ø 6 mm probe
A compact, safe and efficient system for complete manifold management.
Simple and complete installation
Kit includes:
-
R588Z metal supports for mounting in R500 series flush-mounted boxes
-
Adhesive labels to identify circuits
-
R558 wrench for calibrating the lockshields
-
Brass end caps with sealing gasket
Installation is simple: just place the manifold inside the box, attach the multifunction valves (in right or left inlet), connect the piping with Giacomini adapters (R178/R179 series), and you're done.
Recommended applications
-
Underfloor heating systems
-
Domestic and central heating
-
Hydronic systems with single-room control
-
Multi-zone systems with automated management

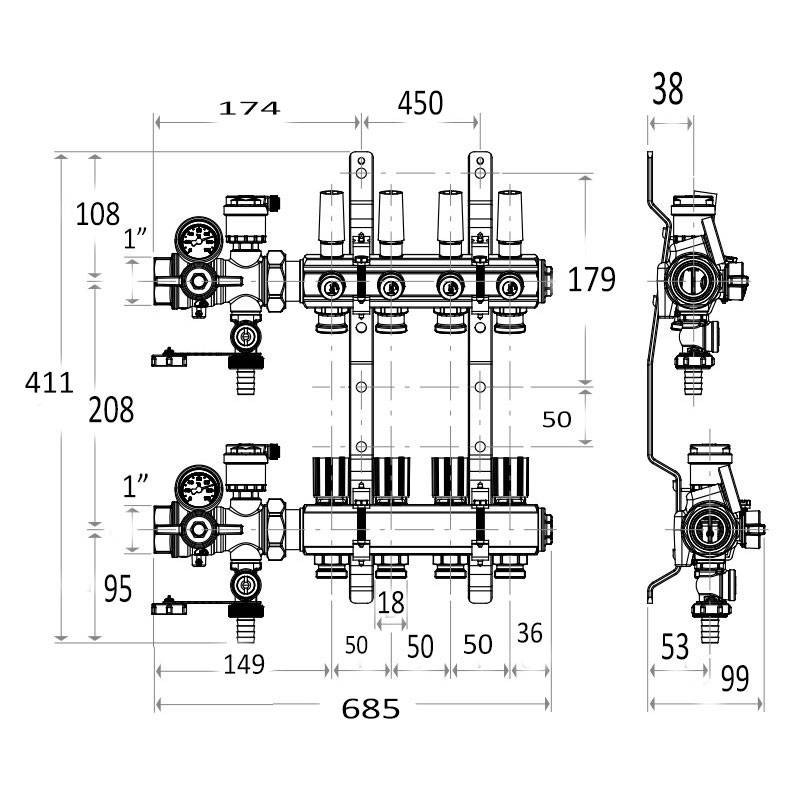

Technical Specifications Giacomini Manifold Kits
| Parameter | Value |
|---|---|
| Number of outputs | 11 |
| Manifold connection | 1 inch x base 18 |
| Manifold material | Brass |
| Distance between outlets | 50 mm |
| Flow meters | Scale 0.5 to 5 l/min |
| Electrothermal control compatibility | R478 / R478M / R473 / R473M |
| Temperature range | 5 ÷ 110 °C |
| Max working pressure | 10 bar |
| Max air vent pressure | 7 bar |
| Seals | EPDM |
| Supports | Galvanized steel |
